Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

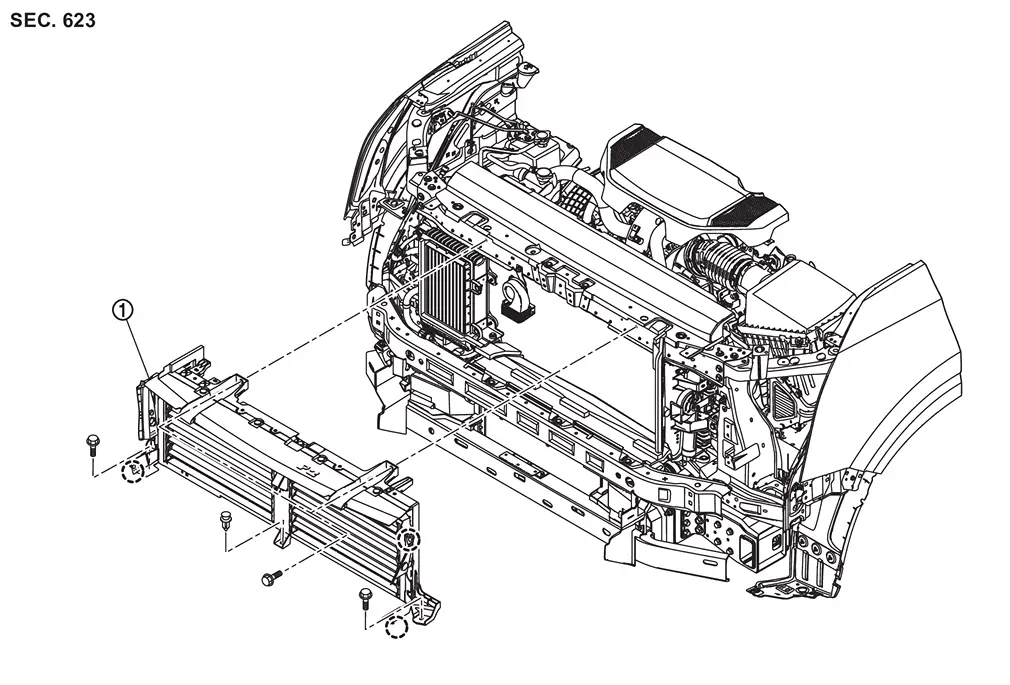

With Flap
 | Active grille shutter | ||||
 | : Clip |

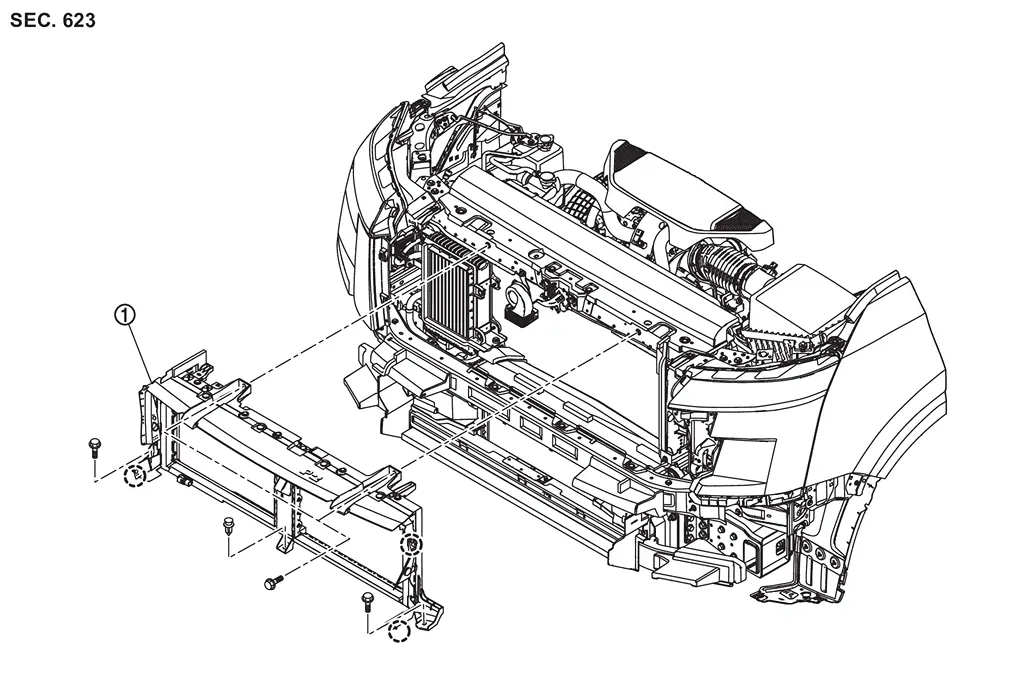

Without Flap
| Active grille shutter | ||||
| : Clip |
Removal and Installation
REMOVAL
Remove front combination lamp. Refer to Removal and Installation.
Disconnect harness connectors and disengage harness clips.
Remove fixing clip and mounting bolts , and then remove active gri ...
