Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove front combination lamp. Refer to Removal and Installation.
Disconnect harness connectors and disengage harness clips.

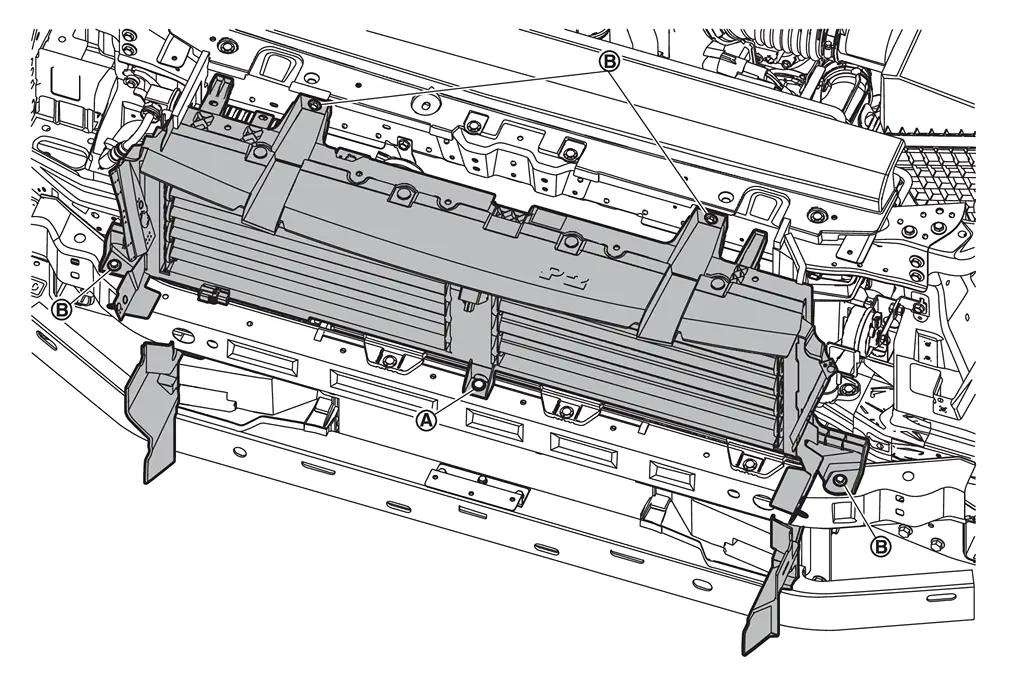

Remove fixing clip
and mounting bolts
, and then remove active grille shutter.
INSTALLATION
Install in the reverse order of removal.
Exploded View
With Flap
Active grille shutter : Clip
Without Flap
Active grille shutter : Clip ...
