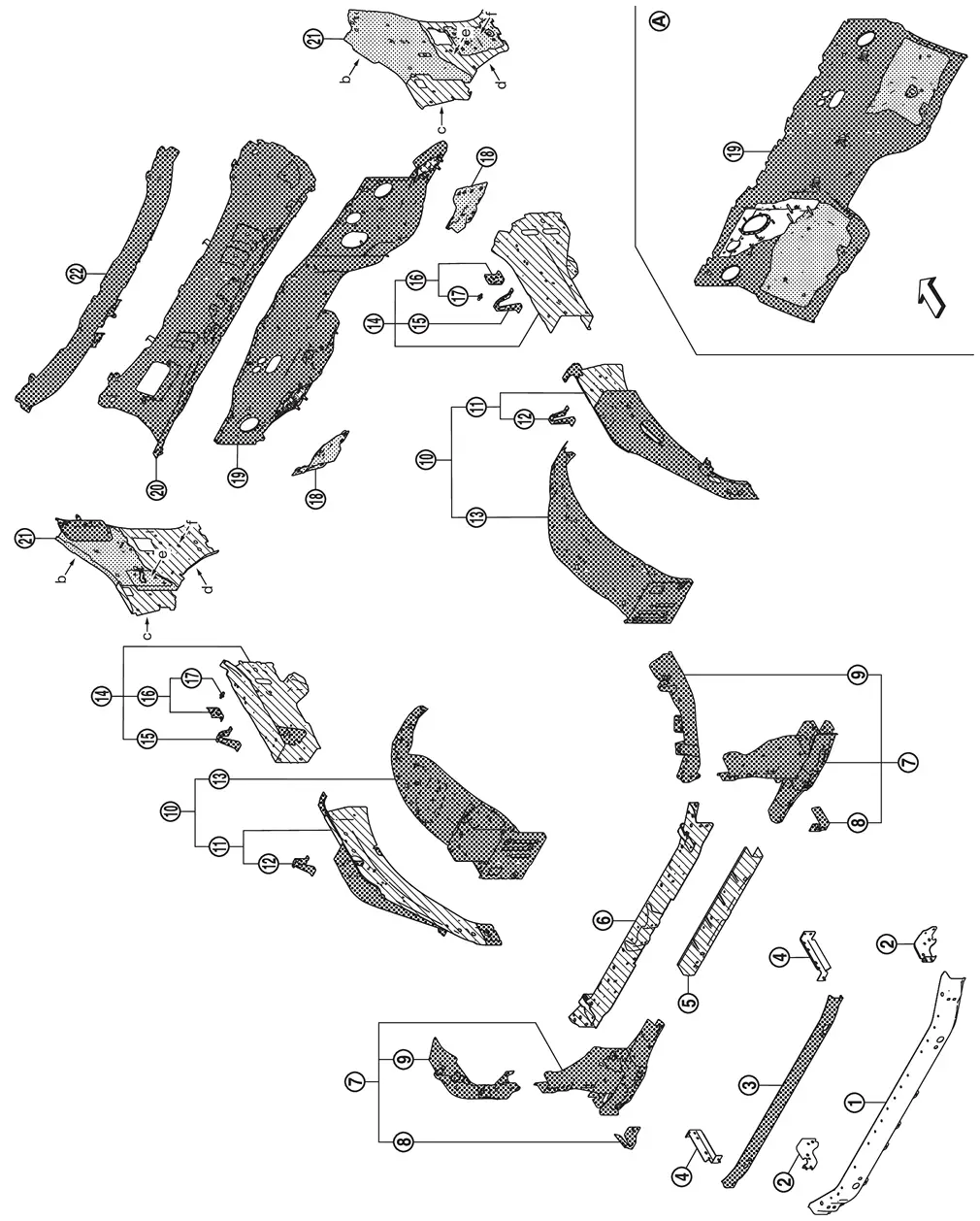

ENGINE COMPARTMENT

Refer to parts catalogue for the replacement parts.

Figure from the indoor side

: Vehicle front

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

: Both sided anti-corrosive steel and HSS sections

Parts name			Tensile strength (MPa)	Both sided anti-corrosive precoated steel sections
Upper front bumper retainer assembly			Under 440	—
Front bumper stay (Lower RH & LH)			Under 440	—
Upper front bumper retainer			Under 440	×
Front bumper stay (Upper RH & LH)			Under 440	—
Radiator core main support assembly			440	×
Upper radiator core support (Center)			440	×
Side radiator core support (RH & LH)			Under 440	×
Headlamp bracket assembly (RH & LH)			Under 440	×
Upper radiator core support (RH & LH)			Under 440	×
Hoodledge assembly (RH & LH)			Refer to No. –
Upper rear hoodledge (RH & LH)			440	×
Front fender bracket (Front RH & LH)			Under 440	×
Lower hoodledge (RH & LH)			Under 440	×
Hoodledge reinforcement (RH & LH)			590	×
Front fender bracket (Rear RH & LH)			Under 440	×
Hoodledge reinforcement gusset (RH & LH)			Under 440	×
Stud (RH & LH)			—	—
Lower side dash assembly (RH & LH)			590	—
Lower dash complete			590	×
Upper dash assembly			Under 440	×
Side dash (RH & LH)	b.	1300MPa T=1.0 mm (0.039 in)	Under 440	×
	c.	1180MPa T=1.2 mm (0.047 in)
	d.	1180MPa T=1.2 mm (0.047 in)
	e.	1300MPa T=1.6 mm (0.063 in)
	f.	1300MPa T=1.6 mm (0.063 in)
Cowl top assembly			Under 440	×

CAUTION:

If the high strength steel (ultra high strength steel) of this is broken, replace by assembly for the supply part.

NOTE:

For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.

Tensile strength column shows the largest strength value of a part in the component part.

FLOOR

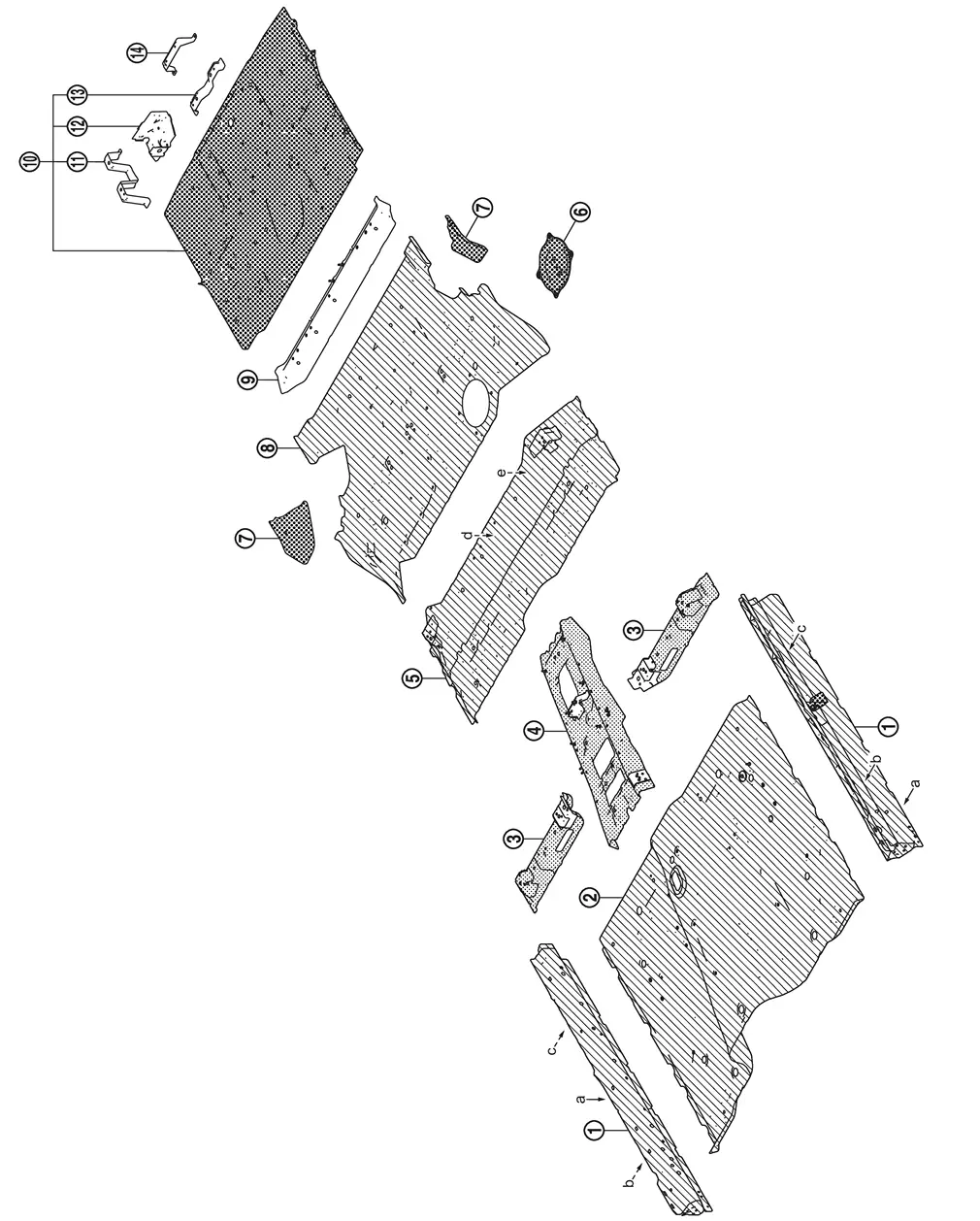

Without ProPILOT Assist 2.1 models

Refer to parts catalogue for the replacement parts.

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

: Both sided anti-corrosive steel and HSS sections

Parts name			Tensile strength (MPa)	Both sided anti-corrosive precoated steel sections
Inner sill (RH & LH)	a.	980MPa T=1.2 mm (0.047 in)	440	×
	b.	1180MPa T=1.0 mm (0.039 in)
	c.	1180MPa T=1.0 mm (0.039 in)
Front floor assembly			440	×
2nd crossmember assembly (RH & LH)			590	—
Front floor reinforcement assembly			590	—
Rear floor front extension	d.	980MPa T=1.0 mm (0.039 in)	590	×
Rear floor front extension	e.	980MPa T=1.0 mm (0.039 in)	590	×
Inspection hole cover			Under 440	×
Inner rear wheelhouse reinforcement assembly (RH & LH)			Under 440	×
Rear floor front			440	×
3rd seat mounting bracket			440	—
Rear floor rear			Under 440	×
Trim mounting bracket assembly			Under 440	—
Jack mounting bracket			Under 440	—
Rear floor rear reinforcement			Under 440	—
Rear floor board reinforcement assembly			Under 440	—

CAUTION:

NOTE:

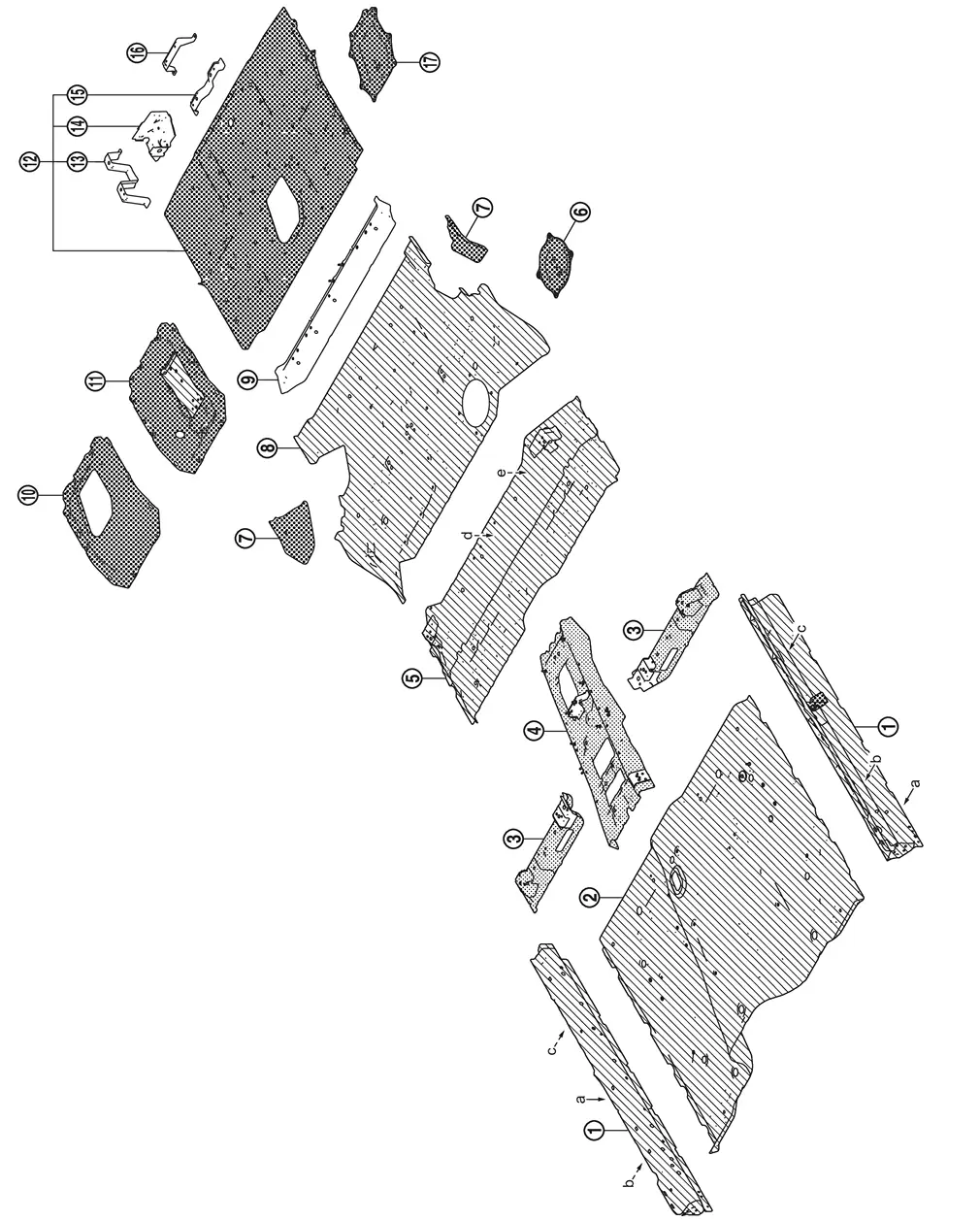

With ProPILOT Assist 2.1 models

Refer to parts catalogue for the replacement parts.

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

: Both sided anti-corrosive steel and HSS sections

Parts name			Tensile strength (MPa)	Both sided anti-corrosive precoated steel sections
Inner sill (RH & LH)	a.	980MPa T=1.2 mm (0.047 in)	440	×
	b.	1180MPa T=1.0 mm (0.039 in)
	c.	1180MPa T=1.0 mm (0.039 in)
Front floor assembly			440	×
2nd crossmember assembly (RH & LH)			590	—
Front floor reinforcement assembly			590	—
Rear floor front extension	d.	980MPa T=1.0 mm (0.039 in)	590	×
Rear floor front extension	e.	980MPa T=1.0 mm (0.039 in)	590	×
Inspection hole cover			Under 440	×
Inner rear wheelhouse reinforcement assembly (RH & LH)			Under 440	×
Rear floor front			440	×
3rd seat mounting bracket			440	—
Floor under battery cover			Under 440	×
Battery case assembly			440	×
Rear floor rear			Under 440	×
Trim mounting bracket assembly			Under 440	—
Jack mounting bracket			Under 440	—
Rear floor rear reinforcement			Under 440	—
Rear floor board reinforcement assembly			Under 440	—
Battery cover			Under 440	×

CAUTION:

NOTE:

FRONT AND REAR MEMBER

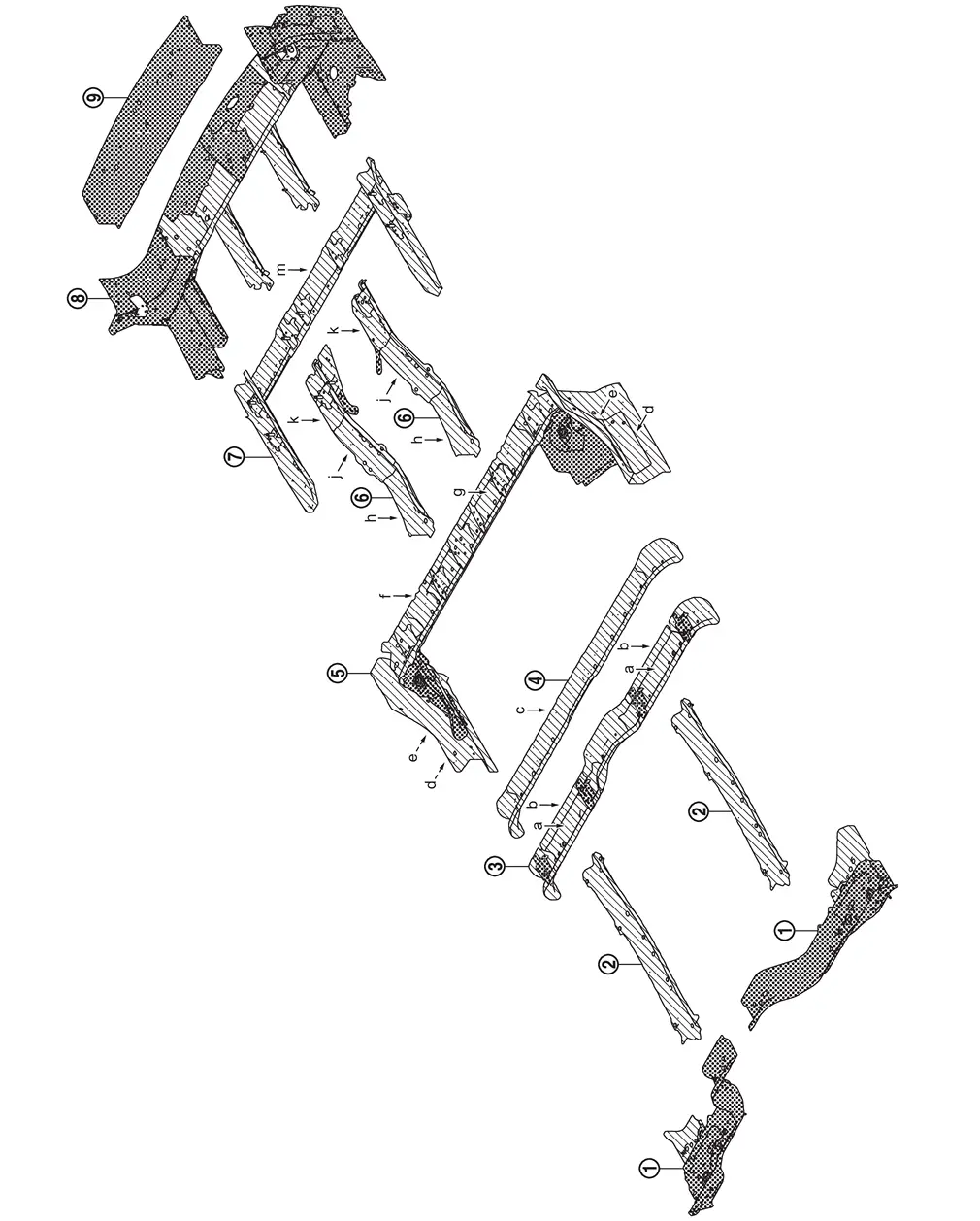

Without ProPILOT Assist 2.1 models

Refer to parts catalogue for the replacement parts.

: Both sided anti-corrosive precoated steel sections

: Both sided anti-corrosive steel and HSS sections

Parts name			Tensile strength (MPa)	Both sided anti-corrosive precoated steel sections
2nd crossmember assembly (RH & LH)			590	×
Front side member assembly (RH & LH)		1180MPa T=1.2 mm (0.047 in)	—	×
Front seat mounting rear crossmember assembly	a.	1180MPa T=1.2 mm (0.047 in)	590	×
Front seat mounting rear crossmember assembly	b.	1180MPa T=1.2 mm (0.047 in)	590	×
4th crossmember assembly	c.	980MPa T=1.2 mm (0.047 in)	440	×
Rear seat crossmember assembly	d.	1180MPa T=1.2 mm (0.047 in)	590	×
	e.	1180MPa T=1.2 mm (0.047 in)
	f.	980MPa T=1.6 mm (0.063 in)
	g.	1180MPa T=1.6 mm (0.063 in)
Rear side member (RH & LH)	h.	980MPa T=1.2 mm (0.047 in)	590	×
	j.	1180MPa T=1.0 mm (0.039 in)
	k.	1180MPa T=1.0 mm (0.039 in)
3rd rear crossmember assembly	m.	980MPa T=1.2 mm (0.047 in)	590	×
Rear end crossmember assembly			590	×
Rear crossmember assembly			Under 440	×

CAUTION:

NOTE:

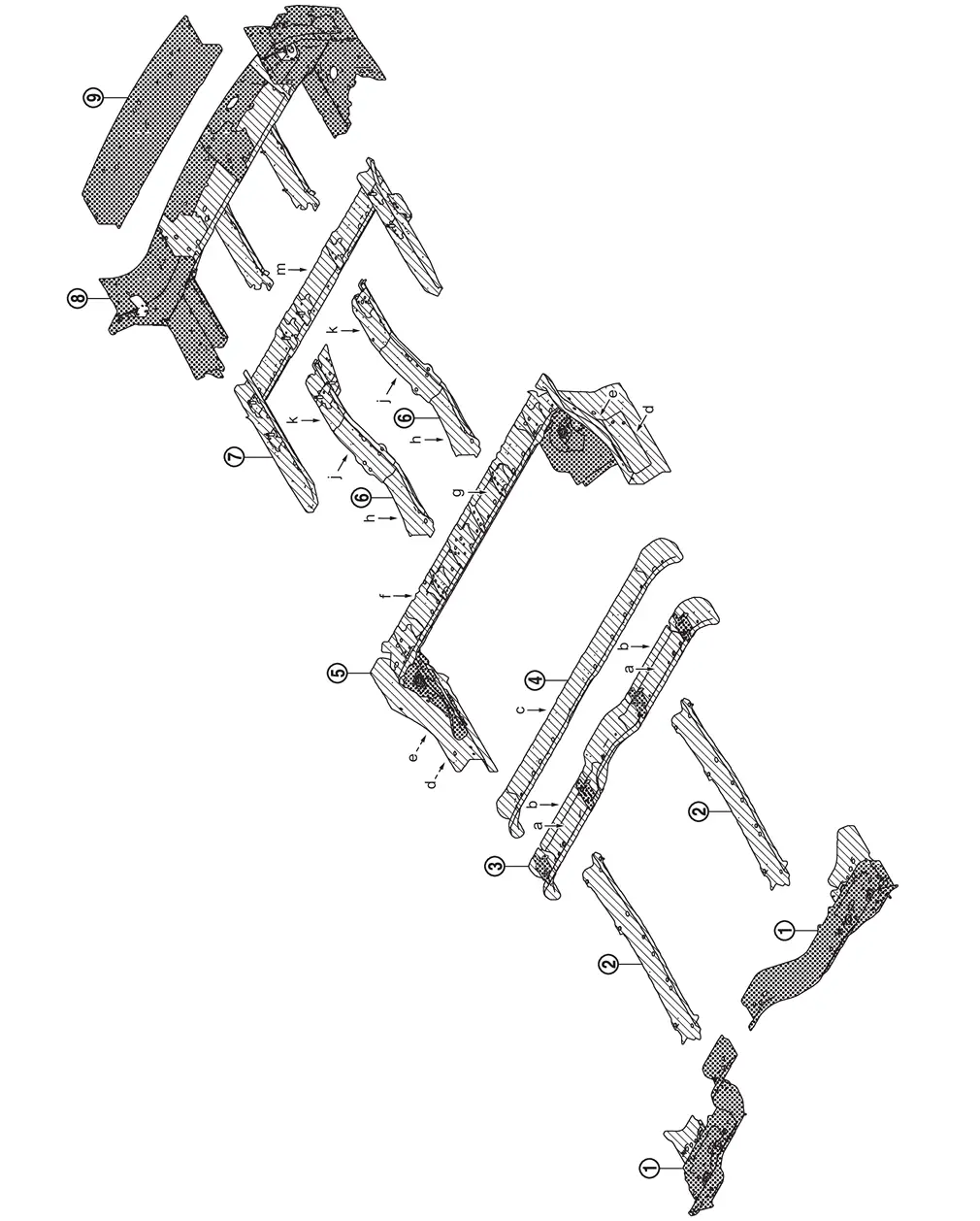

With ProPILOT Assist 2.1 models

Refer to parts catalogue for the replacement parts.

: Both sided anti-corrosive precoated steel sections

: Both sided anti-corrosive steel and HSS sections

Parts name			Tensile strength (MPa)	Both sided anti-corrosive precoated steel sections
2nd crossmember assembly (RH & LH)			590	×
Front side member assembly (RH & LH)		1180MPa T=1.2 mm (0.047 in)	—	×
Front seat mounting rear crossmember assembly	a.	1180MPa T=1.2 mm (0.047 in)	590	×
Front seat mounting rear crossmember assembly	b.	1180MPa T=1.2 mm (0.047 in)	590	×
4th crossmember assembly	c.	980MPa T=1.2 mm (0.047 in)	440	×
Rear seat crossmember assembly	d.	1180MPa T=1.2 mm (0.047 in)	590	×
	e.	1180MPa T=1.2 mm (0.047 in)
	f.	980MPa T=1.6 mm (0.063 in)
	g.	1180MPa T=1.6 mm (0.063 in)
Rear side member (RH & LH)	h.	980MPa T=1.2 mm (0.047 in)	590	×
	j.	1180MPa T=1.0 mm (0.039 in)
	k.	1180MPa T=1.0 mm (0.039 in)
3rd rear crossmember assembly	m.	980MPa T=1.2 mm (0.047 in)	590	×
Rear end crossmember assembly			590	×
Rear crossmember assembly			Under 440	×

CAUTION:

NOTE:

Ultra High Strength Steel Part
