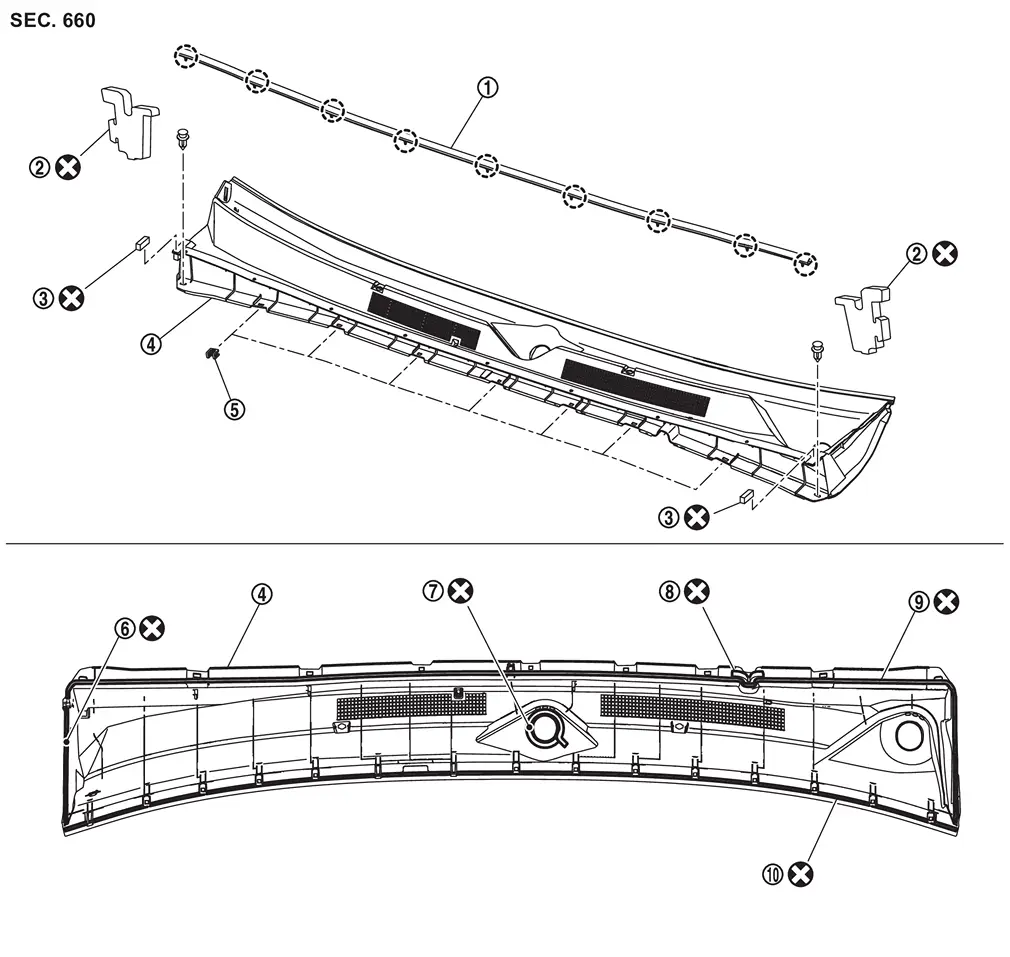

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Nissan Armada 2025-2026 Service and Repair Manual / Body Exterior, Doors, Roof & Vehicle Security / Exterior — Removal and Installation / Cowl Top / Exploded View

Cowl top seal	Cowl top side seal	EPT seal [t: 15.0 mm (0.591 in)]
Cowl top cover	Cowl top clip	EPT seal [t: 3.0 mm (0.118 in)]
EPT seal [t: 10.0 mm (0.394 in)]	EPT seal [t: 10.0 mm (0.394 in)]	EPT seal [t: 3.0 mm (0.118 in)]
EPT seal [t: 3.0 mm (0.118 in)]
: Clip
: Always replace after every disassembly.

REMOVAL Fully open hood assembly. Remove front wiper arm (LH and RH). Refer to Removal and Installation. Remove cowl top side seal. Disconnect front washer tube connector. CAUTION: When washer tube i ...
