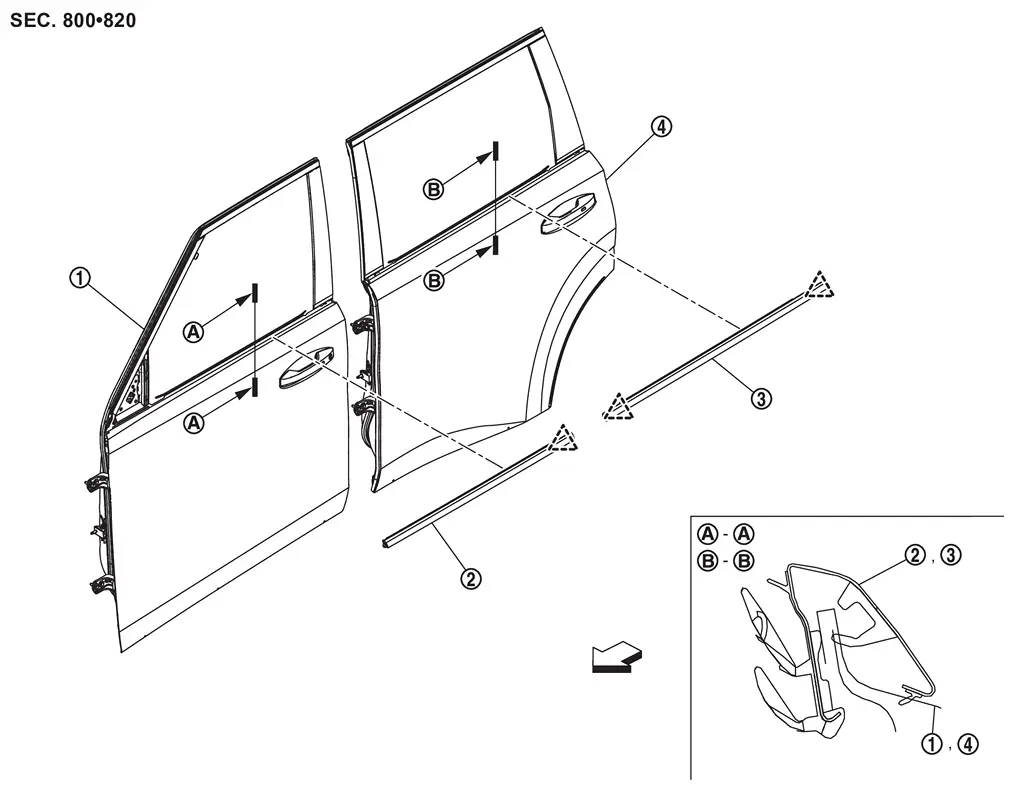

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Front door panel |  | Front door outside molding |  | Rear door outside molding |
 | Rear door panel | ||||
 | : Pawl | ||||
 | : Vehicle front | ||||
