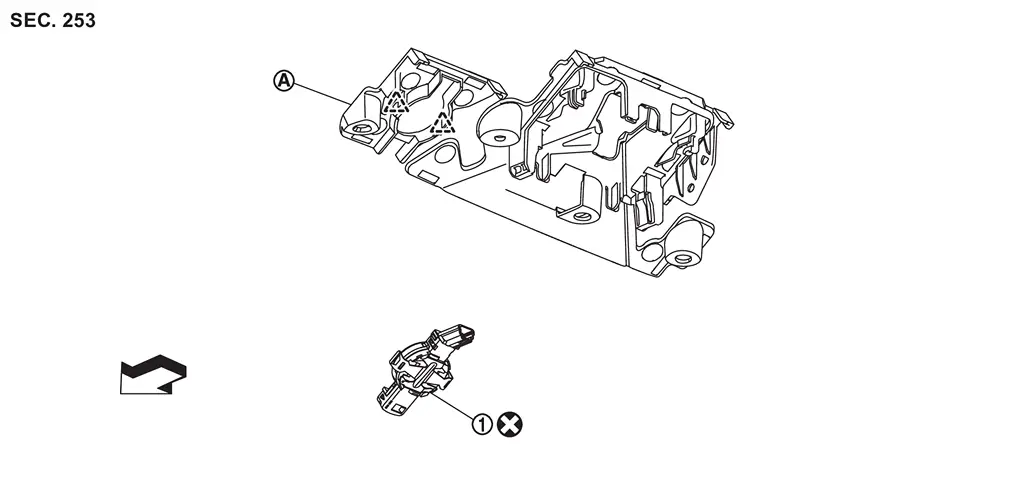

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Light & Rain Sensor

...

Removal and Installation

REMOVAL Remove cover. Refer to Removal and Installation. Disconnect light & rain sensor harness connector. Disengage light & rain sensor fixing pawls, and then peel off light & rain sensor ...
