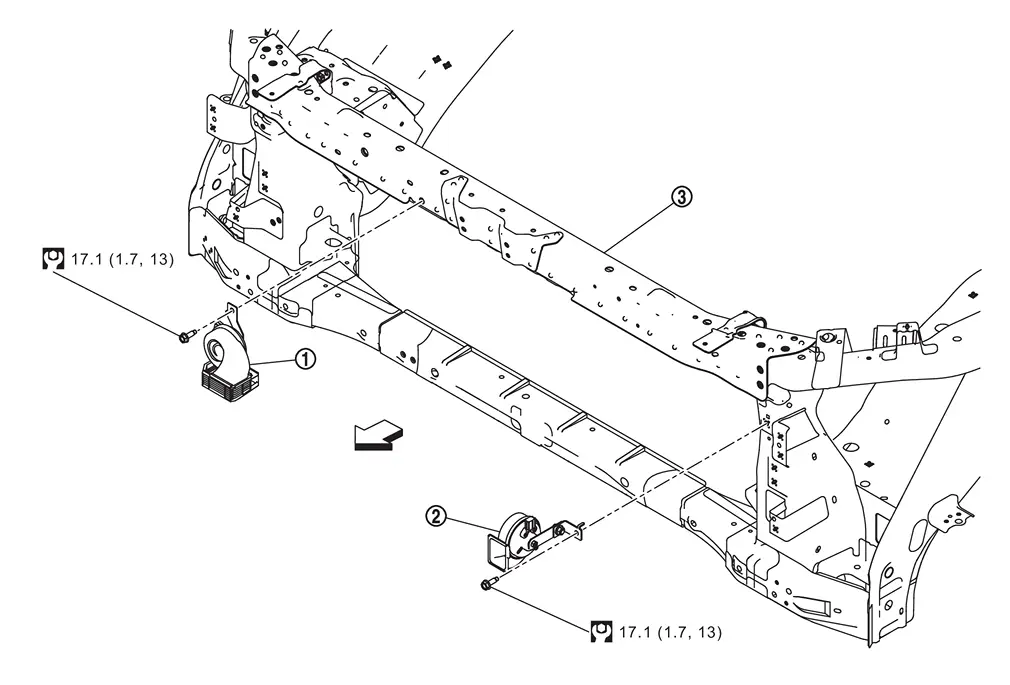

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Horn

...

Removal & Installation

REMOVAL Horn High Remove front bumper fascia assembly. Refer to Removal and Installation. Disconnect harness connector . Remove mounting bolt , and then remove horn high. CAUTION: Never disassembl ...
