Nissan Armada 2025-2026 Service and Repair Manual: Removal & Installation
REMOVAL
Horn High
Remove front bumper fascia assembly. Refer to Removal and Installation.

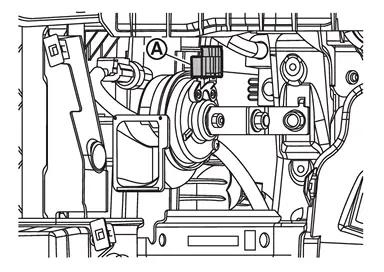

Disconnect harness connector
.

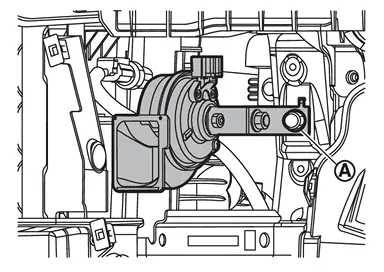

Remove mounting bolt , and then remove horn high.
CAUTION:
Never disassemble horn bracket from horn.
Horn Low
Remove front grille upper. Refer to Removal and Installation.

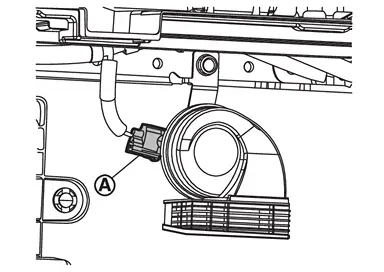

Disconnect harness connector .
Remove mounting bolt , and then remove horn low.
CAUTION:
Never disassemble horn bracket from horn.
INSTALLATION
Install in the reverse order of removal.
Exploded View
Horn low Horn high Radiator core support : Vehicle front : N·m (kg-m, ft-lb) ...
