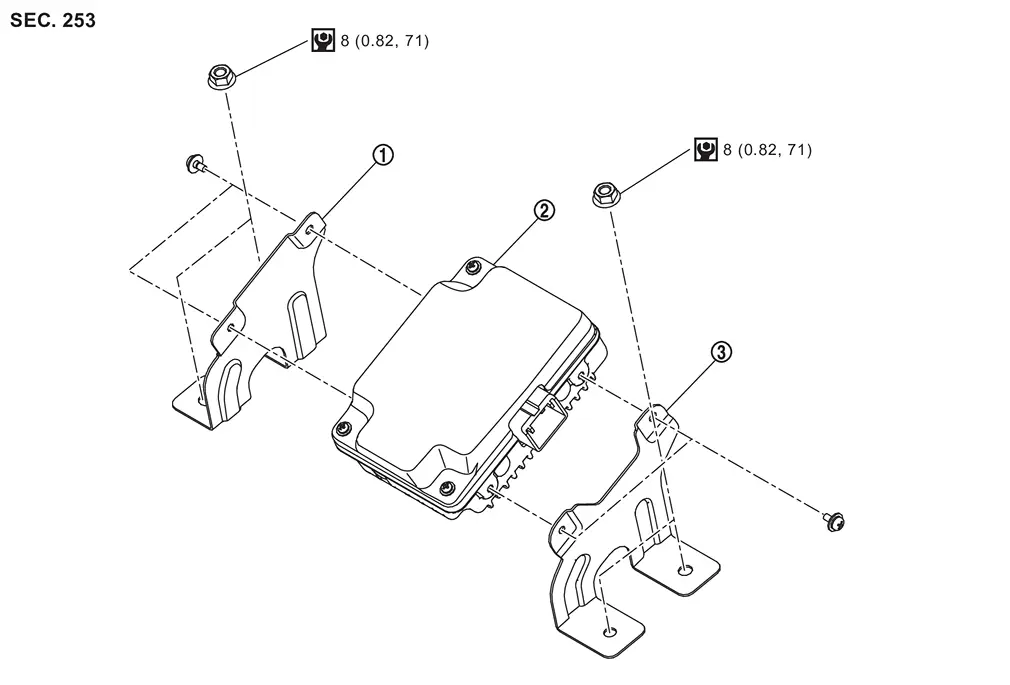

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Inverter Unit

...

Removal and Installation

REMOVAL Remove luggage side lower finisher LH. Refer to Removal and Installation. Disconnect inverter unit harness connector. Remove inverter unit mounting nuts. Remove the bracket from the inverter ...
