Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove instrument lower panel LH and steering column cover lower. Refer to Removal and Installation.
Remove driver knee air bag module (if equipped). Refer to Removal and Installation.

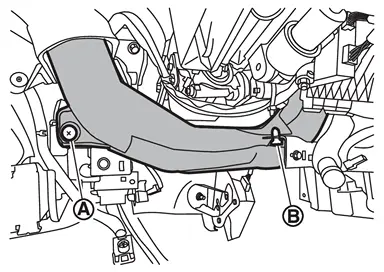

Remove fixing clips
and
, and then remove side ventilator duct 2 LH.
Remove instrument finisher A. Refer to Removal and Installation.

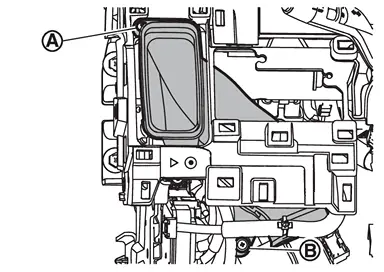

Remove fixing screw and clip , and then remove side ventilator duct 3 LH.
Remove instrument panel from steering member. Refer to Removal and Installation.
Remove ionizer (with ionizer models).
Remove ADAS control unit 2. Refer to Removal and Installation (without ProPILOT assist 2.1 models) or Removal and Installation (with ProPILOT assist 2.1 models).

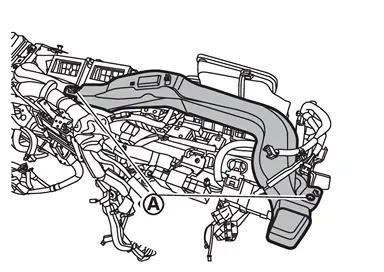

Remove fixing screws , and then remove side ventilator duct RH.
Remove front A/C unit assembly from steering member. Refer to Removal and Installation.
Remove fixing screws , and then remove side ventilator duct 1 LH.
INSTALLATION
Install in the reverse order of removal.
