Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
Never damage the body panel.
REMOVAL
CAUTION:
Remove luggage floor box. Refer to Removal and Installation.
Release luggage rear plate portion of back door weather-strip. Refer to Removal and Installation.

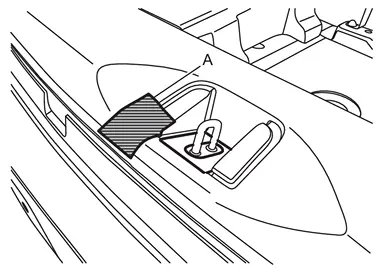

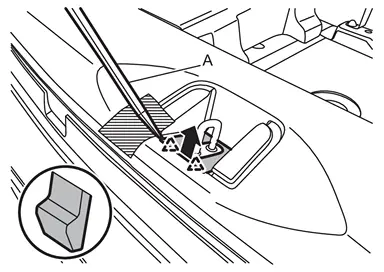

Remove luggage rear plate mask.Apply protective tape (A) on luggage rear plate to protect it from damage.
 | : Pawl |

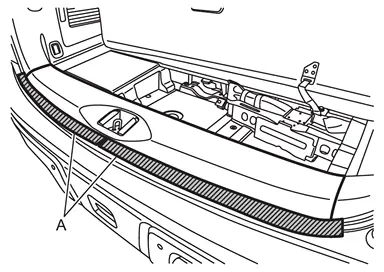

Apply protective tapes (A) on body panel to protect it from damage.

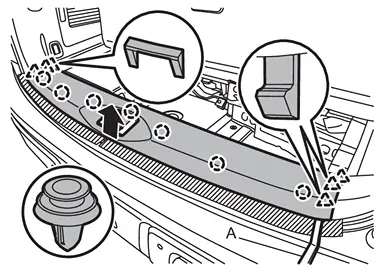

Disengage luggage rear plate fixing clips and pawls using a remover tool (A), and then remove luggage rear plate.
 | : Clip |
| : Pawl |
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
Check in advance that clips and pawls are accurately aligned with the portions on body panel, and then install by pressing in.
