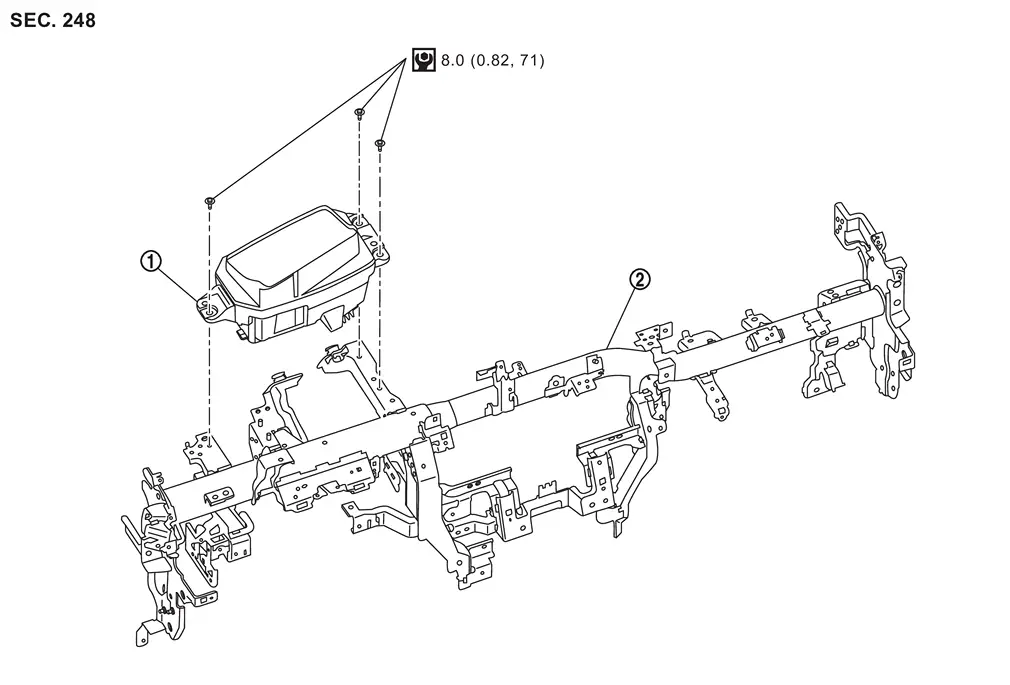

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Head up Display Unit

...

Removal and Installation

REMOVAL Remove instrument panel assembly. Refer to Removal and Installation. Remove Head Up Display unit mounting bolts . Disconnect the Head Up Display unit harness connector. Remove Head Up Display ...
