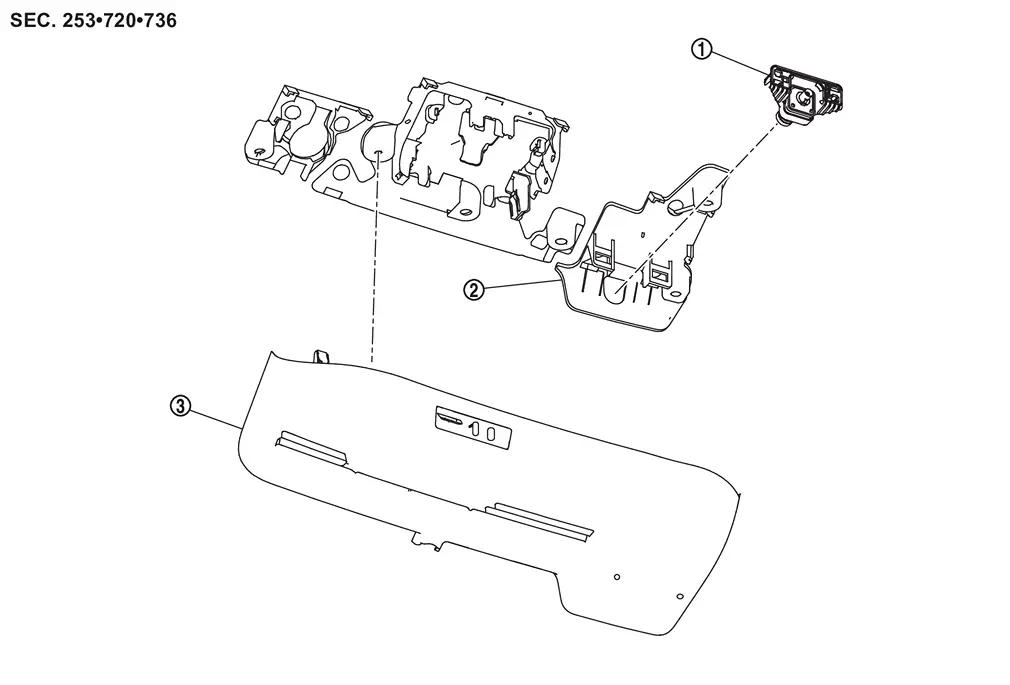

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Front Camera (driving Video Recorder)

...

Removal and Installation

REMOVAL Using a suitable tool, release clips , and remove cover . Disconnect front camera (driving video recorder) harness connector. Push to the arrow the stopper , and remove the front camera (dr ...
