Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL

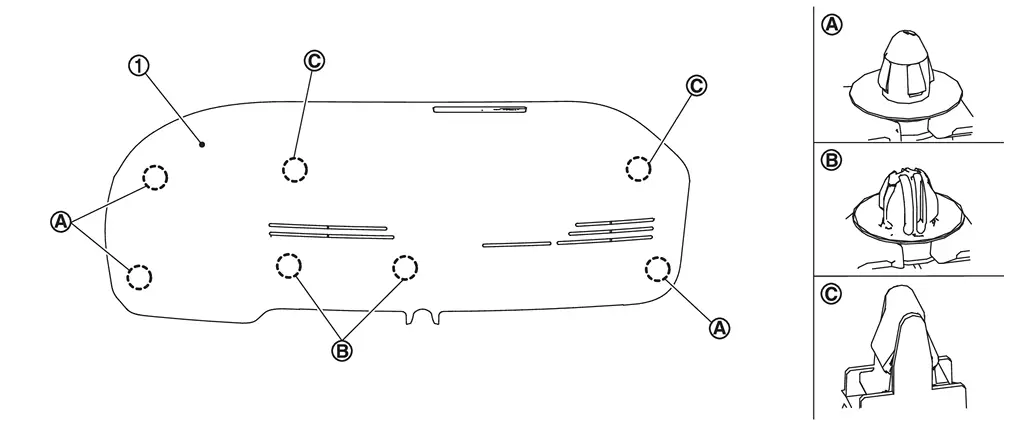

Using a suitable tool, release clips
, and remove cover
.
Disconnect front camera (driving video recorder) harness connector.

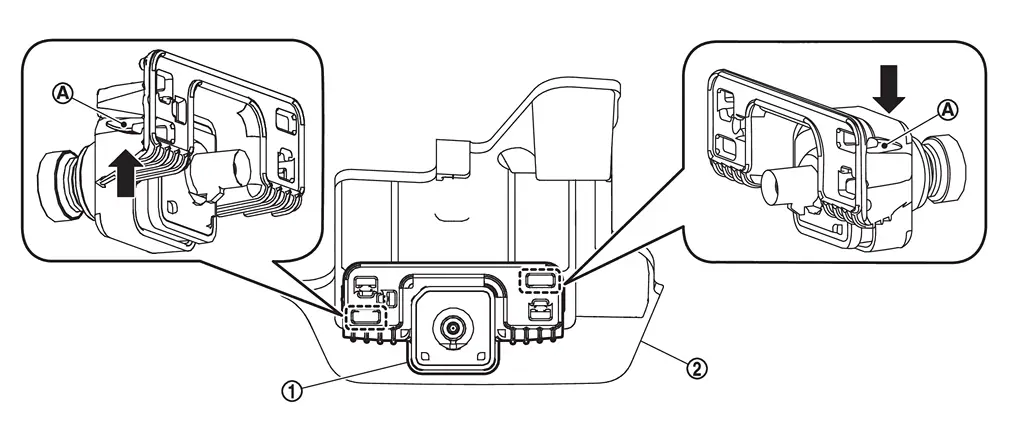

Push to the arrow
the stopper
, and remove the front camera (driving video recorder) from bracket
.
INSTALLATION
Note the following, and install in the reverse order of removal.
NOTE:
Bracket together with windshield glass is supplied to the market as a one unit.
CAUTION:
Do not touch or shock the front camera (driving video recorder) lens area or drop the front camera (driving video recorder).
Make sure that the front camera (driving video recorder) harness is not twisted after installation.
Align the cover clips with the bracket holes and install by hand. Do not use excessive force.
Exploded View
Front camera (driving video recorder) Bracket Cover ...
