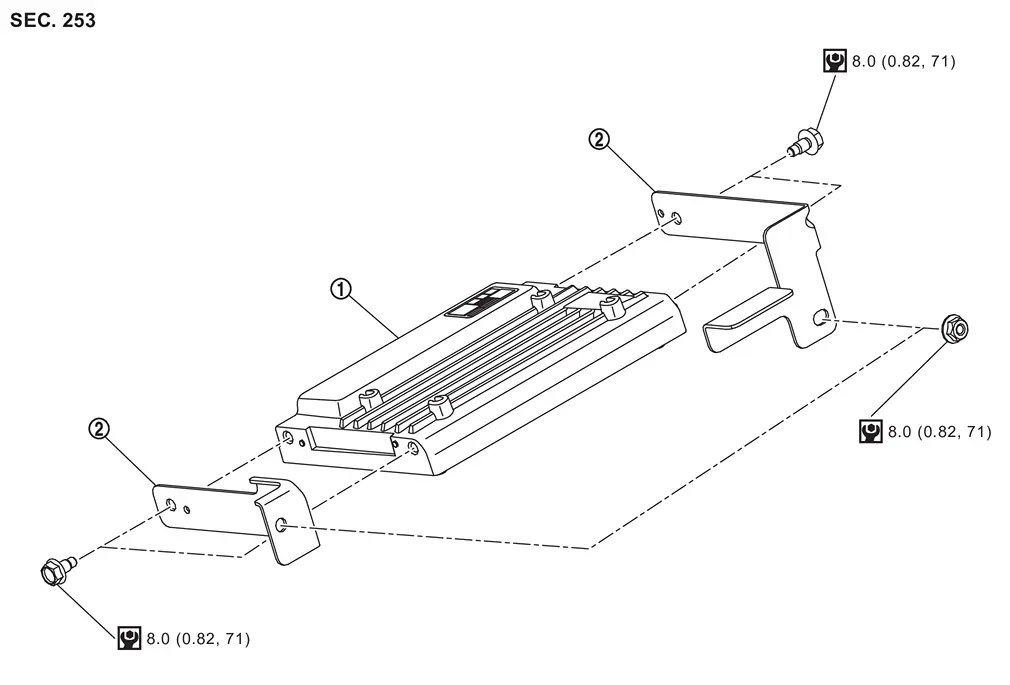

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | ADAS control unit 2 |  | ADAS control unit 2 bracket | ||
 | : N·m（kg-m、in-lb） | ||||
Removal and Installation
REMOVAL
Remove combination meter. Refer to Removal and Installation.
Remove mounting screw , and remove bracket .
Remove mounting nuts , and remove ADAS control unit 2 from steering member .
Disc ...
