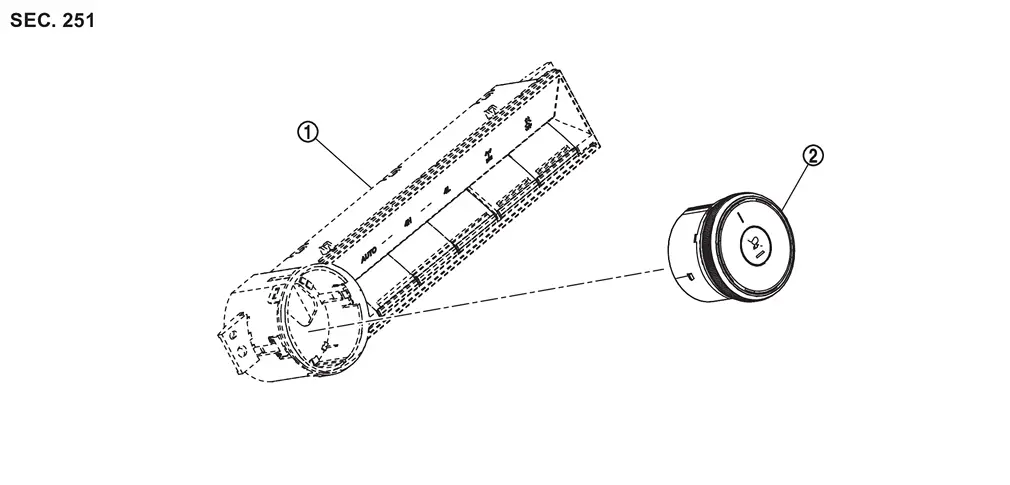

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Drive Mode Select Switch

...

Removal and Installation

Remove select switch unit. Refer to VDC OFF SWITCH : Removal & Installation. Unhook the pawls () to remove the drive mode select switch from the select switch unit . INSTALLATION Install in the ...
