Nissan Armada 2025-2026 Service and Repair Manual: Rear Body
WARNING:

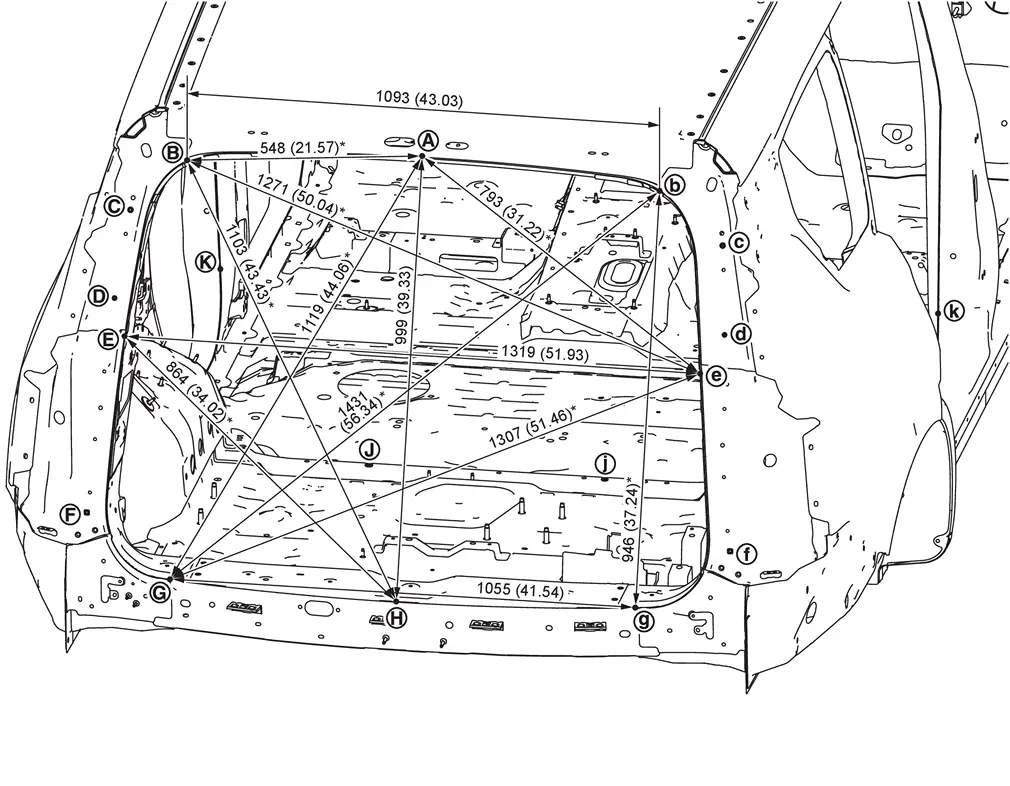

MEASUREMENT
| Unit: mm (in) |
Unit: mm (in)
| Point | Dimension | Memo | Point | Dimension | Memo | Point | Dimension | Memo |
|---|---|---|---|---|---|---|---|---|
 –  | 703 (27.68) |  –  | 2653 (104.45) |  –  | 1473 (57.99) | |||
–  | 787 (30.98) | –  | 1356 (53.39) |  –  | 530 (20.87) | |||
| – | 1123 (44.21) | –  | 1397 (55.00) | –  | 1123 (44.21) | |||
| – | 1360 (53.54) |  – | 563 (22.17) | –  | 1353 (53.27) | |||
–  | 2423 (95.39) | – | 1217 (47.91) | – | 2310 (90.94) | |||
| – | 1339 (52.72) | – | 1481 (58.31) | – | 2660 (104.72) | |||
| – | 1544 (60.79) | – | 2261 (89.02) | – | 1176 (46.30) | |||
| – | 2289 (90.12) | – | 2699 (106.26) | – | 2484 (97.80) |

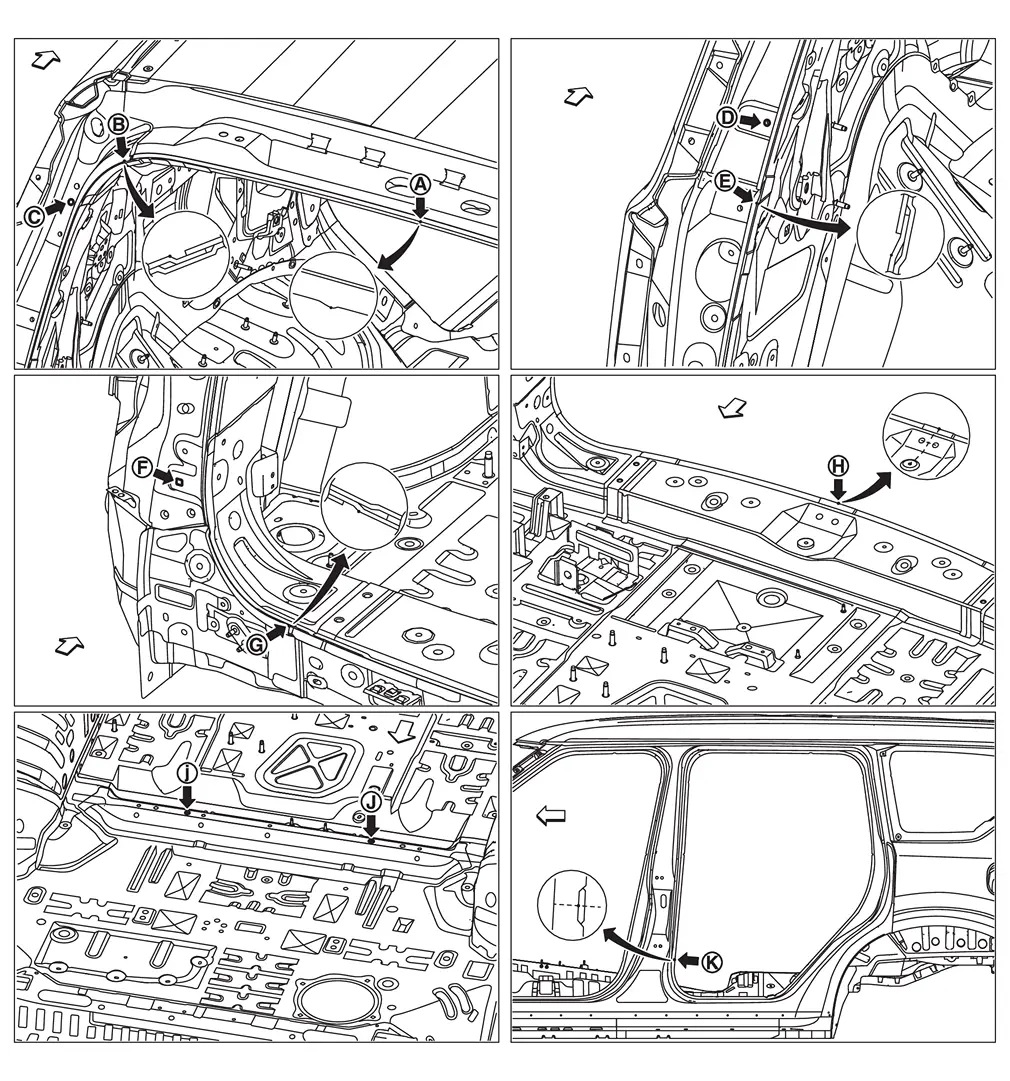

MEASUREMENT POINTS
 : Vehicle front |
Unit: mm (in)
| Point | Material | Point | Material |
|---|---|---|---|
| Roof indent of center positioning mark |  | Center rear crossmember joggle |
 | Back pillar main joggle | | Rear crossmember flange end |
| Back pillar main hole center
: φ7 (0.28) | | 3rd seat front mounting bracket
: φ12 (0.47) |
 | Rear combination lamp base joggle | | Center pillar indent |
| Rear combination lamp base hole center □9 (0.35) | — | — |
Passenger Compartment
WARNING:
MEASUREMENT (EXTERIOR)
Unit: mm (in)
Unit: mm (in)
«The others» Point Dimension Memo Point Dimension Memo Point Dimension Memo – 1591 (62.64) – 1892 (74.49) – 849 (33. ...
