Nissan Armada 2025-2026 Service and Repair Manual: How To Check

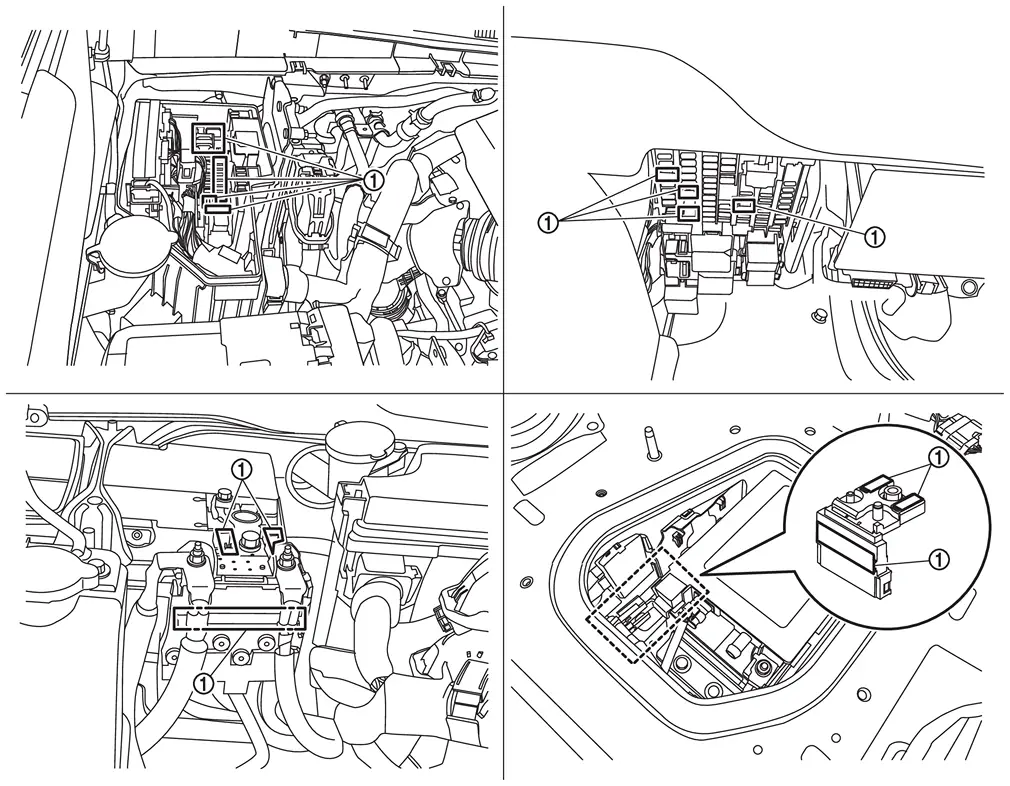

With ProPILOT ASSIST 2.1
A melted fusible link can be detected by visual inspection. If its condition is questionable, use circuit tester or test lamp.
 | Fusible link |
CAUTION:
If fusible link should melt, it is possible that critical circuit (power supply or large current carrying circuit) is shorted. In such a case, carefully check and eliminate cause of malfunction.
Never wrap outside of fusible link with vinyl tape. Important: Never let fusible link touch any other wiring harness, vinyl or rubber parts.

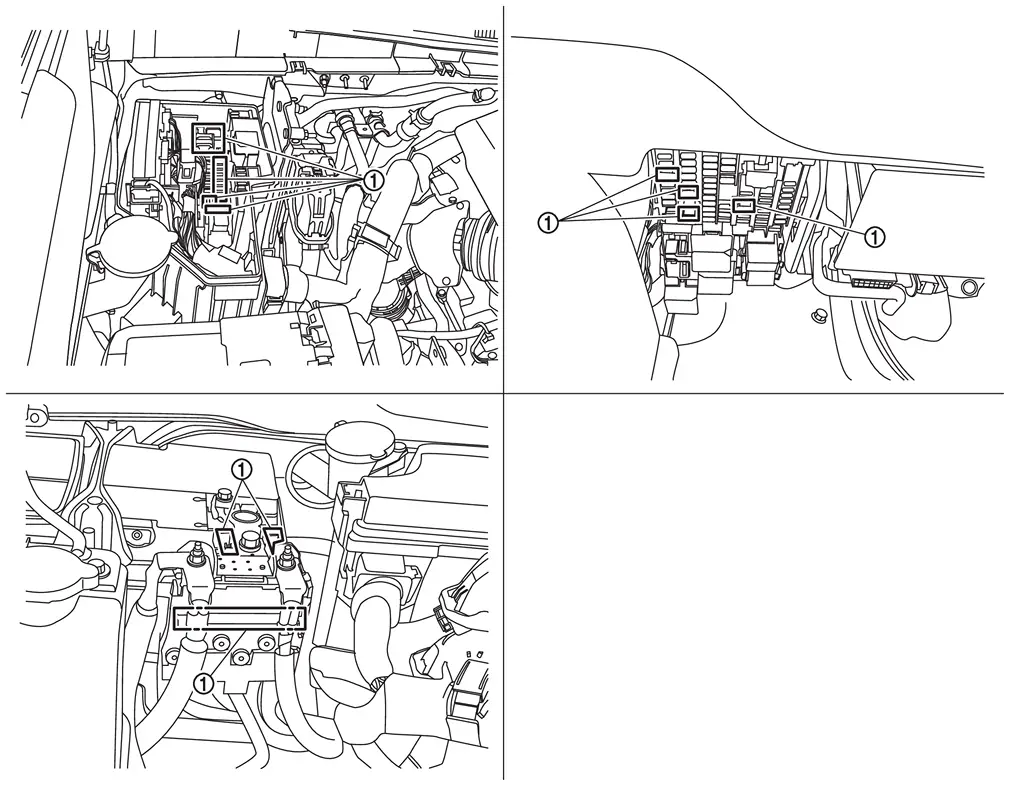

Without ProPILOT ASSIST 2.1
A melted fusible link can be detected either by visual inspection or by feeling with finger tip. If its condition is questionable, use circuit tester or test lamp.
| Fusible link |
CAUTION:
If fusible link should melt, it is possible that critical circuit (power supply or large current carrying circuit) is shorted. In such a case, carefully check and eliminate cause of malfunction.
Never wrap outside of fusible link with vinyl tape. Important: Never let fusible link touch any other wiring harness, vinyl or rubber parts.
