Nissan Armada 2025-2026 Service and Repair Manual: Inspection

INSPECTION AFTER REMOVAL

Timing Chain

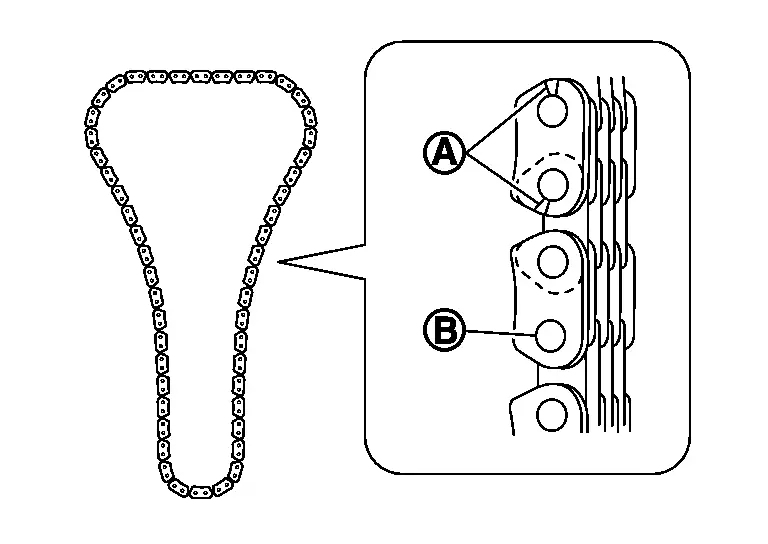

Check for cracks and any excessive wear at link plates and roller links of timing chain. Replace timing chain if necessary.

	: Crack
	: Wear

INSPECTION AFTER INSTALLATION

Inspection for Leakage

The following are procedures for checking fluids leakage, lubricates leakage.

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required quantity, fill to the specified level. Refer to Fluids and Lubricants.

• Use procedure below to check for fuel leakage.

  • Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leakage at connection points.

  • Start engine. With engine speed increased, check again for fuel leakage at connection points.

• Run engine to check for unusual noise and vibration.

  NOTE:

  If hydraulic pressure inside chain tensioner drops after removal/installation, slack in guide may generate a pounding noise during and just after the engine start. However, this does not indicate an unusualness. Noise will stop after hydraulic pressure rises.

• Warm up engine thoroughly to check there is no leakage of fuel, or any oil/fluids including engine oil and engine coolant.

• Bleed air from lines and hoses of applicable lines, such as in cooling system.

• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill them to the specified level, if necessary.

  Summary of the inspection items:

  Items		Before starting engine	Engine running	After engine stopped
  Engine coolant		Level	Leakage	Level
  Engine oil		Level	Leakage	Level
  Transmission / transaxle fluid	AT & CVT Models	Leakage	Level / Leakage	Leakage
  	MT Models	Level / Leakage	Leakage	Level / Leakage
  Other oils and fluids*		Level	Leakage	Level
  Fuel		Leakage	Leakage	Leakage
  Exhaust gases		—	Leakage	—

  *: Power steering fluid, brake fluid, etc.
