Nissan Armada 2025-2026 Owner's Manual: LDW system operation
The Nissan Armada LDW and I-LI systems utilize a forward-facing camera mounted behind the windshield to continuously monitor lane markings and road boundaries.

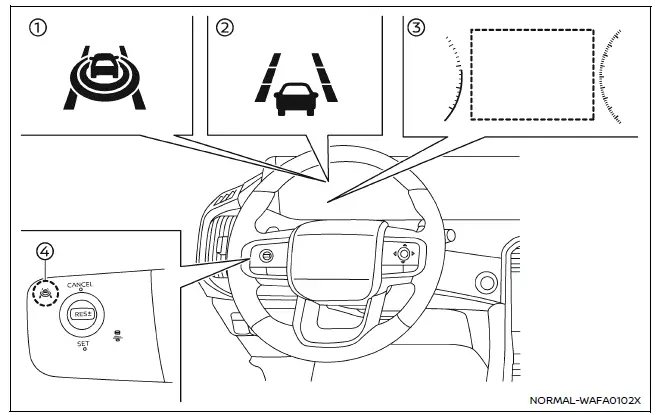

Example
- I-LI ON indicator (displayed in the vehicle information screen)
- LDW/I-LI alert indicator (vehicle information display)
- Vehicle information display
- ProPILOT Assist activation switch
When driving the Nissan Armada at speeds of approximately 37 MPH (60 km/h) or higher (depending on specifications), and when lane markings are clearly visible, the LDW system becomes active. If the vehicle begins to drift toward either side of the lane, the system provides a warning through steering wheel vibration and a flashing indicator on the display.
Once the Nissan Armada returns to the center of the lane, the warning will automatically stop.
Basic information
WARNING
Failure to properly follow the instructions and safety guidelines for the
Nissan Armada LDW and I-LI systems may result in serious injury or even fatal consequences.
The Nissan Armada L ...
How to enable/disable the LDW system
Vehicle information display
Steering-wheel-mounted controls (right side)
Basic information
To activate or deactivate the Nissan Armada LDW system, follow these steps:
1. Press the
bu ...
