INSPECTION AFTER REMOVAL

Surface Distortion

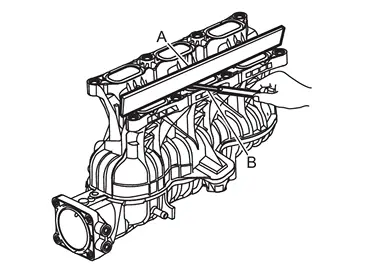

Check the surface distortion of the intake manifold mating surface with a straightedge (A) and a feeler gauge (B) (commercial service tool).

Limit : Refer to Intake Manifold.
If it exceeds the limit, replace intake manifold.
