Nissan Armada 2025-2026 Service and Repair Manual: Inspection
INSPECTION AFTER REMOVAL
Check the oil seal assembled transfer control actuator for wear, crack and damage. Replace if there is malfunction.

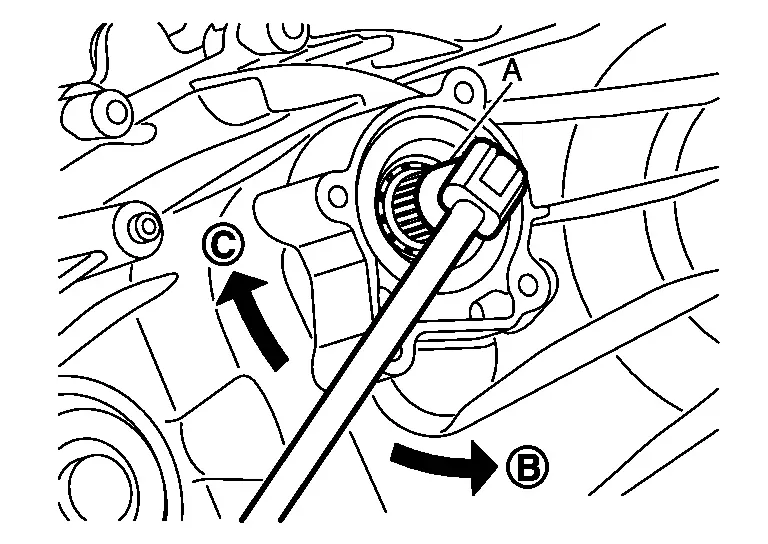

Check the transfer assembly as follows.Install the suitable tool (A) to transfer assembly as shown in the figure.
, check returning to direction
by spring power.
CAUTION:
The maximum turning force shall be 5 N·m (0.51 kg-m, 44 in-lb).
When turn the shaft in direction, check locking the shaft. INSPECTION AFTER INSTALLATION
After driving, check the surface fitting transfer control actuator to transfer assembly for fluid leakage.
ADJUSTMENT AFTER INSTALLATION
When replacing transfer control actuator, performe writing unit parameter. Refer to Description.
Removal and Installation
WARNING:
REMOVAL
The ignition switch OFF.
CAUTION:
Wait for 60 seconds after the ignition switch OFF.
Disconnect negative battery terminal. Refer to Removal and Installation
Disconnect the transfer c ...
