INSPECTION AFTER REMOVAL
Check the following items and replace, if necessary.
Check each part of steering column assembly for damage or other malfunctions. Replace if there are any abnormal conditions.

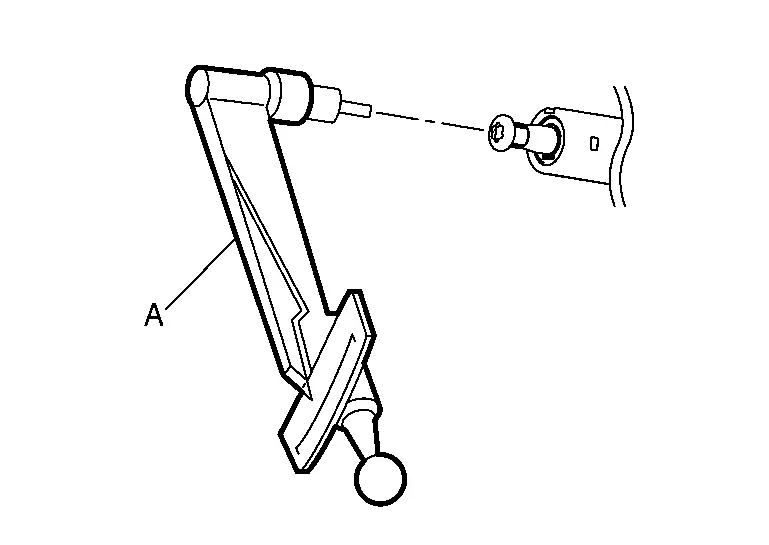

Measure steering column rotating torque using a preload gauge (commercial service tool) (A). Replace steering column assembly if the rotating torque is outside the standard.
Rotating torque : Refer to Steering Column. With the column telescopic set to the longest position, measure the length (A) shown in the figure, if vehicle has been involved in a minor collision. Replace steering column assembly if out side the standard.
Steering column length [maximum telescopic (A)] : Refer to Steering Column. CAUTION:
Before completing this measurement, the steering column telescopic must be set to the longest position, the steering wheel will be nearest away from the driver.
If the column telescopic is not set to the longest position, first reinstall the column, move the telescopic to the longest position, then complete the measurement.
INSPECTION AFTER INSTALLATION
Check the following items and replace, if necessary.
Check each part of steering column assembly for damage or other malfunctions. Replace if there are any abnormal conditions.
Check tilt and telescopic mechanism operating range tilt operating range (A), telescopic operating range (B) as shown in the figure.
Tilt operating range (A) : Refer to Steering Column. Telescopic operating range (B) : Refer to Steering Column. After installation, turn steering wheel to make sure it moves smoothly while turning to the left and right stops.
Make sure that the steering wheel is in a neutral position when driving straight ahead.
Rotate steering wheel to check for decentered condition, binding, noise, or excessive steering effort.
Check the steering wheel play, neutral position steering wheel, steering wheel turning torque, and front wheel turning angle.
Steering wheel play: Refer to Inspection.
Neutral position steering wheel, steering wheel turning torque, and front wheel turning angle: Refer to Inspection.
Perform rack end value reset. Refer to Work Procedure.
Adjust neutral position of steering angle sensor. Refer to Work Procedure.
- If equipped with ProPILOT Assist, perform steering torque calibration after replacing or removal and installation the steering wheel. Refer to Work Procedure.
