Nissan Armada 2025-2026 Service and Repair Manual: Inspection

AFTER A COLLISION

WARNING:

To avoid the risk of death or severe injury:

Replace any seat belt assembly (including anchor bolts) if:

• The seat belt is damaged in an accident (i.e. torn webbing, bent retractor or guide, etc.).

• The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or distortion and repair if necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.

• The seat belt assembly must be replaced even if the seat belts were not in use during the collision in which the air bags were deployed.

PRELIMINARY CHECKS

Check the seat belt warning lamp for proper operation. Refer to Seat Belt Warning Lamp.

If the air bag warning lamp turns ON, perform self-diagnosis using CONSULT. Refer to CONSULT Function.

Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.

Check the shoulder seat belt guide and shoulder belt height adjuster for front seats. Check that guide swivels freely and that webbing lays flat and does not bind in guide. Check that height adjuster operates properly and holds securely.

Check retractor operation:Fully extend the seat belt webbing and check for twists, tears or other damage. Allow the seat belt to retract. Check that webbing returns smoothly and completely into the retractor. If the webbing does not return smoothly, the cause may be an accumulation of dust or dirt. Use the “SEAT BELT TAPE SET” and perform the following steps.

Inspect The Front Seat Belt Shoulder Anchor

1. Pull the seat belt out to a length of 500 mm (19.69 in) or more.

2. Fix the seat belt at the center pillar webbing opening with a clip or other device.

3. Pass a thin wire through the shoulder anchor webbing opening. Hold both ends of the wire and pull it tightly while moving it up and down several times along the webbing opening surface to remove dirt stuck there.

4. Any dirt that cannot be removed with the wire can be removed by cleaning the opening with a clean cloth.

5. Apply tape at the point where the webbing contacts the shoulder anchor webbing opening.

   NOTE:

   Apply the tape so that there is no slack or wrinkling.

6. Remove the clip fixing the seat belt and check that the webbing returns smoothly.

Fasten the seat belt. Check that the seat belt is securely fastened. Release the seat belt. Check that the webbing and tongue return to their original position.

Repeat steps above if necessary to check the other seat belts.

SEAT BELT RETRACTOR ON-VEHICLE CHECK

Emergency Locking Retractors (ELR)

NOTE:

All seat belt retractors are Emergency Locking Retractors (ELR) type. In an emergency (sudden stop) the retractor will lock and prevent the webbing from extending any further.

Check the seat belt retractors with the following test(s) to determine if a retractor assembly is operating properly.

ELR Function Stationary Check

Grasp the shoulder webbing and pull forward quickly. The retractor should lock and prevent the belt from extending further.

ELR Function Moving Check

WARNING:

Perform the following test in a safe, open area clear of other vehicles and obstructions (for example, a large, empty parking lot). Road surface must be paved and dry. Never perform the following test on wet or gravel roads or on public streets and highways. This could result in an accident and serious personal injury. The driver and passenger must be prepared to brace themselves in the event that the retractor does not lock.

Fasten the seat belt. Buckle a passenger into the seat for the belt that is to be tested.

Proceed to the designated safe area.

Drive the vehicle at approximately 16 km/h (10 MPH). Notify any passengers of a pending sudden stop and the driver and passenger must be prepared to brace themselves in the event that the retractor does not lock. Apply brakes firmly and make a very hard stop.

During stopping, seat belts should lock and not be extended. If the seat belt retractor assembly does not lock, perform the retractor off-vehicle check.

SEAT BELT RETRACTOR OFF-VEHICLE CHECK

Remove front seat belt retractor assembly. Refer to Removal and Installation.

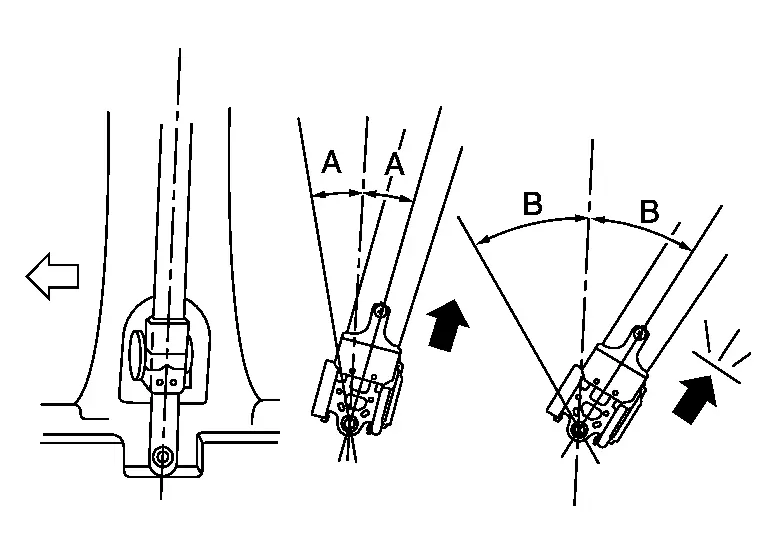

Slowly pull out webbing while tilting the retractor assembly forward from the mounted position without twisting the retractor assembly as shown in the figure.

• The webbing can be pulled out when the angle (A) is 12 degrees or less.

• The webbing cannot be pulled out when the angle (B) is 27 degrees or more.

A and B	: Tilting angles
	: Vehicle front

Replace the seat belt assembly if it does not operate normally.
