Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation

WARNING:

• Before servicing, disconnect ground line of battery. Refer to Precautions for Removing Battery Terminal.

• Prevent accidental activation. Refer to Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER".

REMOVAL

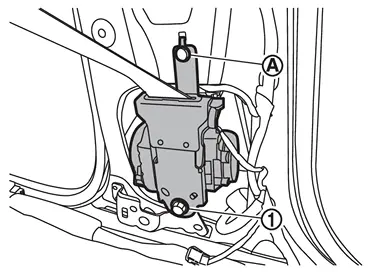

Remove lap anchor.Insert appropriate tool (A) from the top hole to the internal stopper position.

NOTE:

When insert appropriate tool (A) to stopper position , the cam rotates from position to position.

Insert appropriate tool (B) from the side hole while holding appropriate tool (A) and unlock to remove lap anchor.

NOTE:

The lock is unlocked when the lock pin is moved to the position using an appropriate tool (B).

A	: Appropriate tool

Remove shoulder anchor.Remove center pillar upper garnish. Refer to Removal and Installation. Remove shoulder anchor mounting anchor bolt , and then remove shoulder anchor.

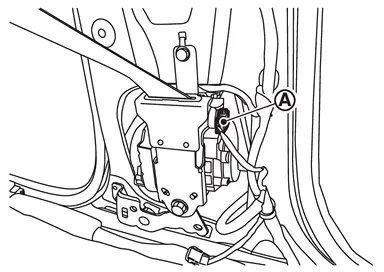

Remove lap pre-tensioner.Disconnect lap pre-tensioner harness connector .

CAUTION:

Never damage harness connector.

NOTE:

Insert remover tool (A) wrapped in tape between connector and lever , and then disconnect harness connector while moving the lever.

Remove lap pre-tensioner mounting anchor bolt , and then remove lap pre-tensioner.

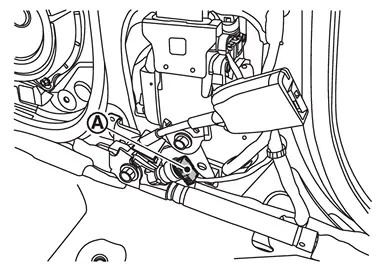

Remove seat belt pre-tensioner retractor.Disconnect seat belt pre-tensioner retractor harness connector .

CAUTION:

Never damage harness connector.

NOTE:

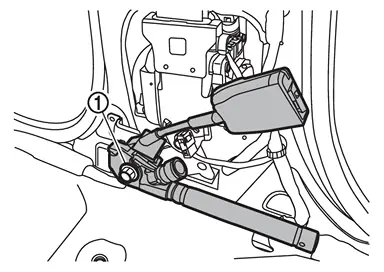

Remove seat belt pre-tensioner retractor mounting anchor bolt and bolt , and then remove seat belt pre-tensioner retractor.

CAUTION:

Never place seat belt pre-tensioner retractor in an area where the temperature reaches 80°C (176°F) or more.

Remove seat belt adjuster mounting anchor bolts , and then remove seat belt adjuster.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

When connect harness connector, press harness connector until the clicking sound.
