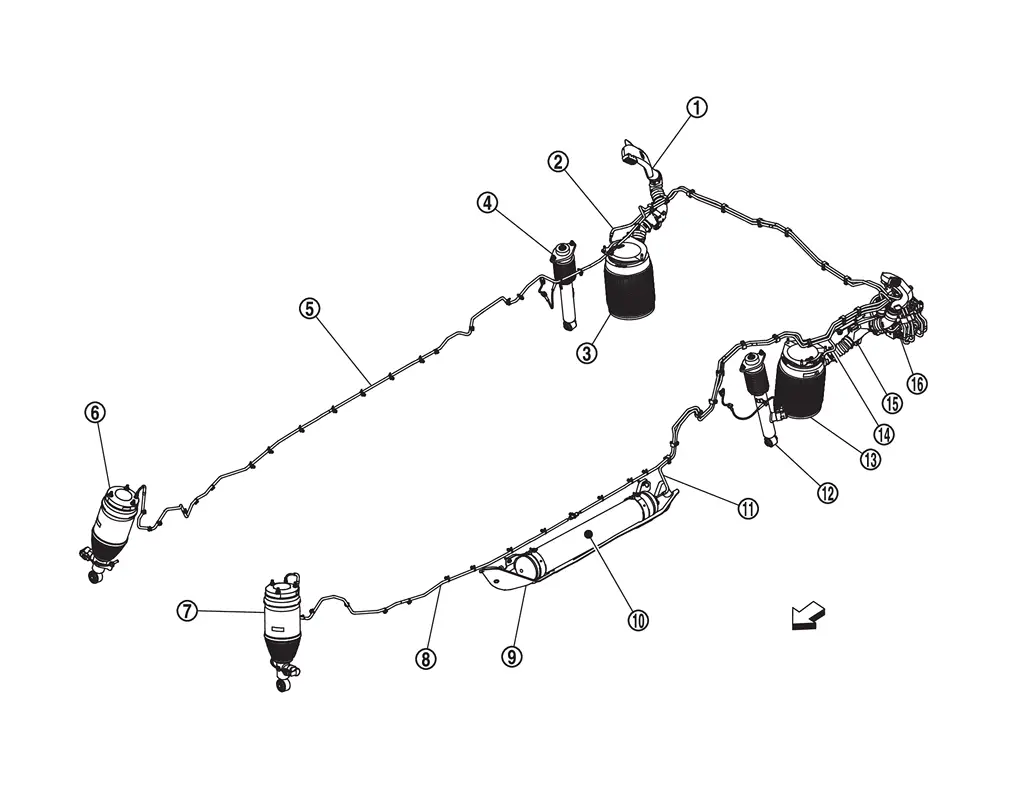

Nissan Armada 2025-2026 Service and Repair Manual: Layout
 | Air suspension RH duct assembly |  | Air tube (rear RH air spring) |  | Rear RH air spring |
 | Rear RH shock absorber |  | Air tube (front RH shock absorber) |  | Front RH Shock absorber (With Built In Air Spring) |
 | Front LH Shock absorber (With Built In Air Spring) |  | Air tube (front LH shock absorber) |  | Protector |
 | Air tank |  | Air tube (air tank) |  | Rear LH shock absorber |
 | Rear LH air spring |  | Air tube (rear LH air spring) |  | Air suspension LH duct assembly |
 | Air suspension control module | ||||
 | :Vehicle front |
