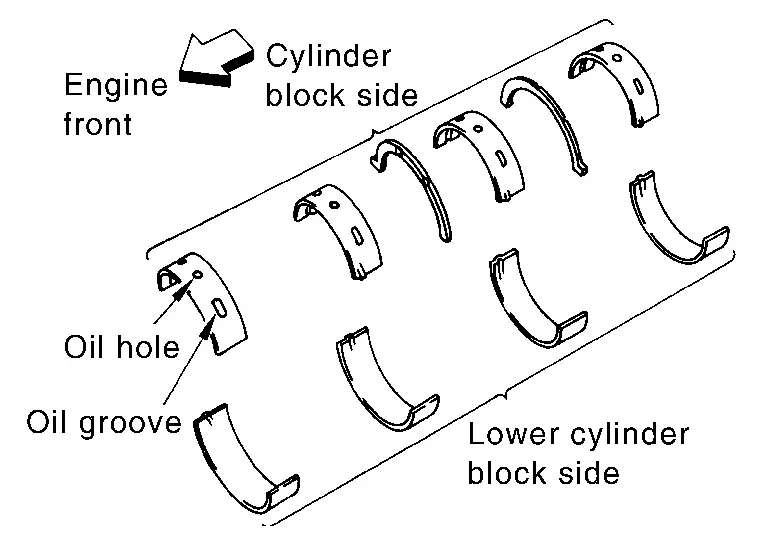

Nissan Armada 2025-2026 Service and Repair Manual: Main Bearing
MAIN BEARING
Unit: mm (in)
| |||||
|---|---|---|---|---|---|
| Grade number | Thickness | Width | Identification color | Remarks | |
| 0 | 2.500 - 2.503 (0.0984 - 0.0985) | 19.9 - 20.1 (0.783 - 0.791) | Black - Black | Grade is the same for upper and lower bearings. | |
| 1 | 2.503 - 2.506 (0.0985 - 0.0987) | Brown - Brown | |||
| 2 | 2.506 - 2.509 (0.0987 - 0.0988) | Green - Green | |||
| 3 | 2.509 - 2.512 (0.0988 - 0.0989) | Yellow - Yellow | |||
| 4 | 2.512 - 2.515 (0.0989 - 0.0990) | Blue - Blue | |||
| 5 | 2.515 - 2.518 (0.0990 - 0.0991) | Pink - Pink | |||
| 6 | 2.518 - 2.521 (0.0991 - 0.0993) | Purple - Purple | |||
| 7 | 2.521 - 2.524 (0.0993 - 0.0994) | White - White | |||
| 01 | UPR | 2.503 - 2.506 (0.0985 - 0.0987) | Brown - Brown | Grade and color are different for upper and lower bearings. | |
| LWR | 2.500 - 2.503 (0.0984 - 0.0985) | Black - Black | |||
| 12 | UPR | 2.506 - 2.509 (0.0987 - 0.0988) | Green - Green | ||
| LWR | 2.503 - 2.506 (0.0985 - 0.0987) | Brown - Brown | |||
| 23 | UPR | 2.509 - 2.512 (0.0988 - 0.0989) | Yellow - Yellow | ||
| LWR | 2.506 - 2.509 (0.0987 - 0.0988) | Green - Green | |||
| 34 | UPR | 2.512 - 2.515 (0.0989 - 0.0990) | Blue - Blue | ||
| LWR | 2.509 - 2.512 (0.0988 - 0.0989) | Yellow - Yellow | |||
| 45 | UPR | 2.515 - 2.518 (0.0990 - 0.0991) | Pink - Pink | ||
| LWR | 2.512 - 2.515 (0.0989 - 0.0990) | Blue - Blue | |||
| 56 | UPR | 2.518 - 2.521 (0.0991 - 0.0993) | Purple - Purple | ||
| LWR | 2.515 - 2.518 (0.0990 - 0.0991) | Pink - Pink | |||
| 67 | UPR | 2.521 - 2.524 (0.0993 - 0.0994) | White - White | ||
| LWR | 2.518 - 2.521 (0.0991 - 0.0993) | Purple - Purple | |||
UNDERSIZE
Unit: mm (in)
| Items | Thickness | Main journal diameter |
|---|---|---|
| 0.25 (0.0098) | 2.633 - 2.641 (0.1037 - 0.1040) | Grind so that bearing clearance is the specified value. |
MAIN BEARING OIL CLEARANCE
Unit: mm (in)
| Items | Standard | Limit |
|---|---|---|
| Main bearing oil clearance | 0.012 - 0.022 (0.0005 - 0.0009) | 0.022 (0.0009) |
*: Actual clearance
Connecting Rod Bearing
CONNECTING ROD BEARING
Unit: mm (in)
Grade number Thickness Identification color (mark) 0 UPR 1.497 - 1.500 (0.0589 - 0.0591) Black LWR Black - Black 1 UPR 1.500 - 1.503 (0.0591 - 0.0592) ...
