Nissan Armada 2025-2026 Service and Repair Manual: Heating Repair

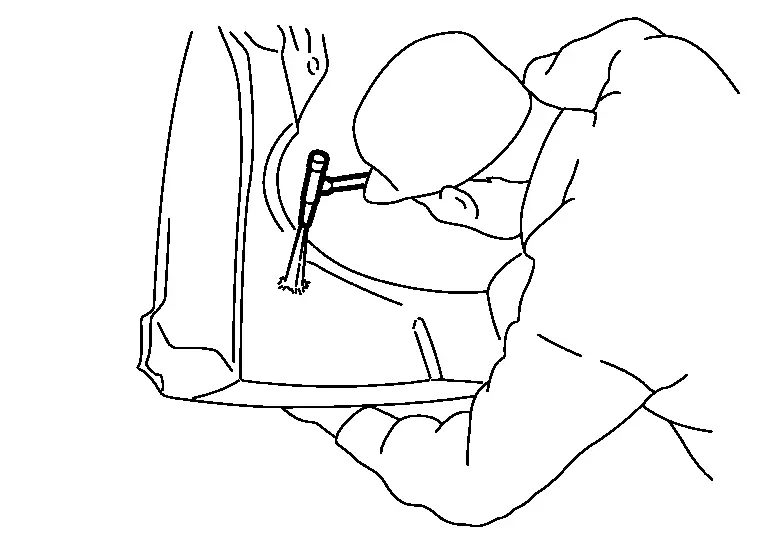

While hammering work is being performed during the rough repair stage, the area needs to be heated. First, cover your hand with a glove (cloth material), and then place hand on the reverse side of the panel near the repair area. Apply heat to the entire repair area using a gas burner (oxy-acetylene gas welder) until your covered hand feels heat.
WARNING:
The panel may crack when hammered without sufficient heat being applied.
Hammering
Elongation of aluminum alloy during hammering will be greater than with steel plates. Therefore, a wooden or plastic hammer should be used with a softer blow to prevent stretching and work hardening o ...
Shrinking
(1) FLAME SHRINKING
The area should be heated to approximately 250°C.
Aluminum alloy panels do not turn red when heated like steel plates. Prior to heating up the panel you are trying to repair, firs ...
