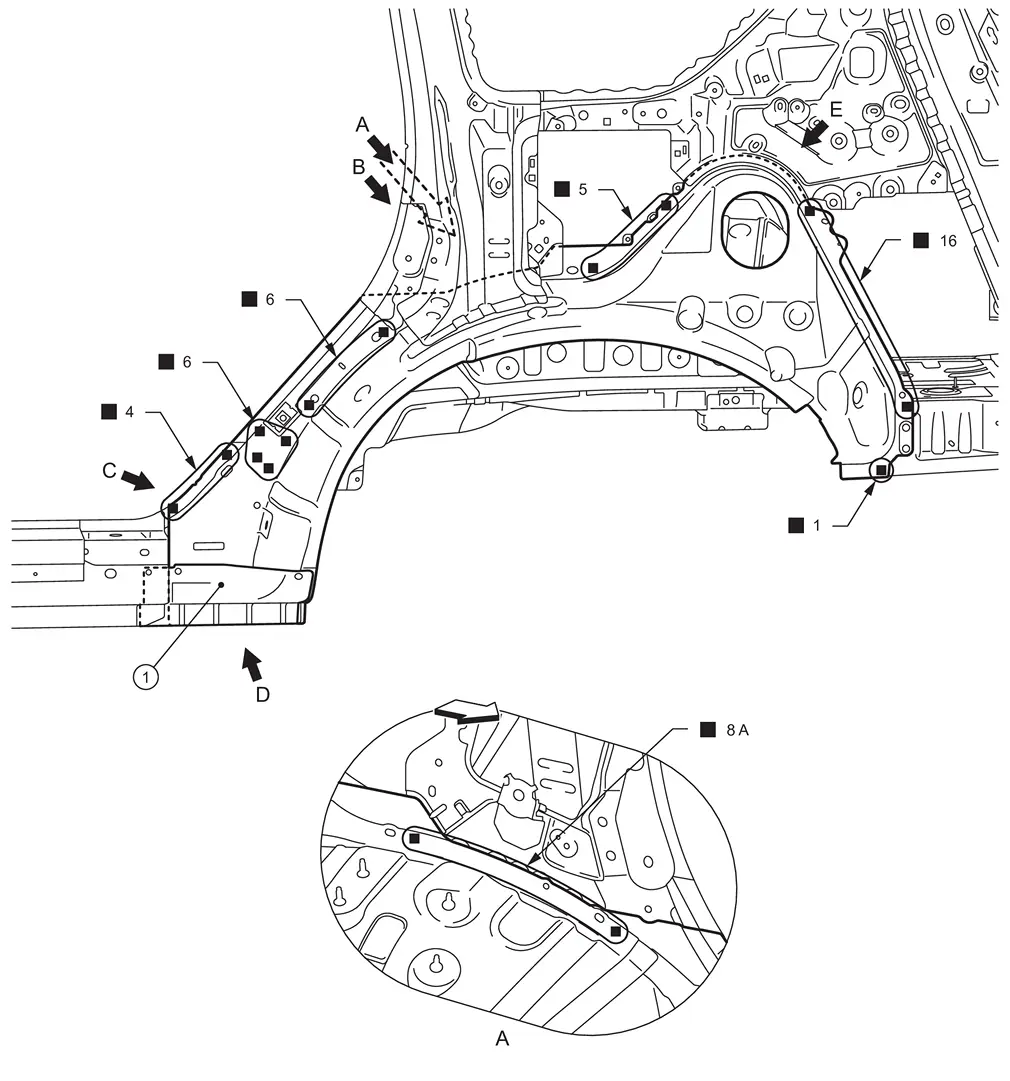

Nissan Armada 2025-2026 Service and Repair Manual: Outer Rear Wheelhouse
WARNING:
Work after rear fender is removed.
Remove the outer rear sill reinforcement (reusable) from the vehicle for easier installation.
 | Outer rear sill reinforcement (reusable) | ||||
 : Vehicle front | |||||
| Replacement part | |||||
| • | Outer rear wheelhouse | ||||
| Outer rear sill reinforcement (reusable) |  | Body sealing | ||
 : Weld the parts onto the back of the component part. | |||||

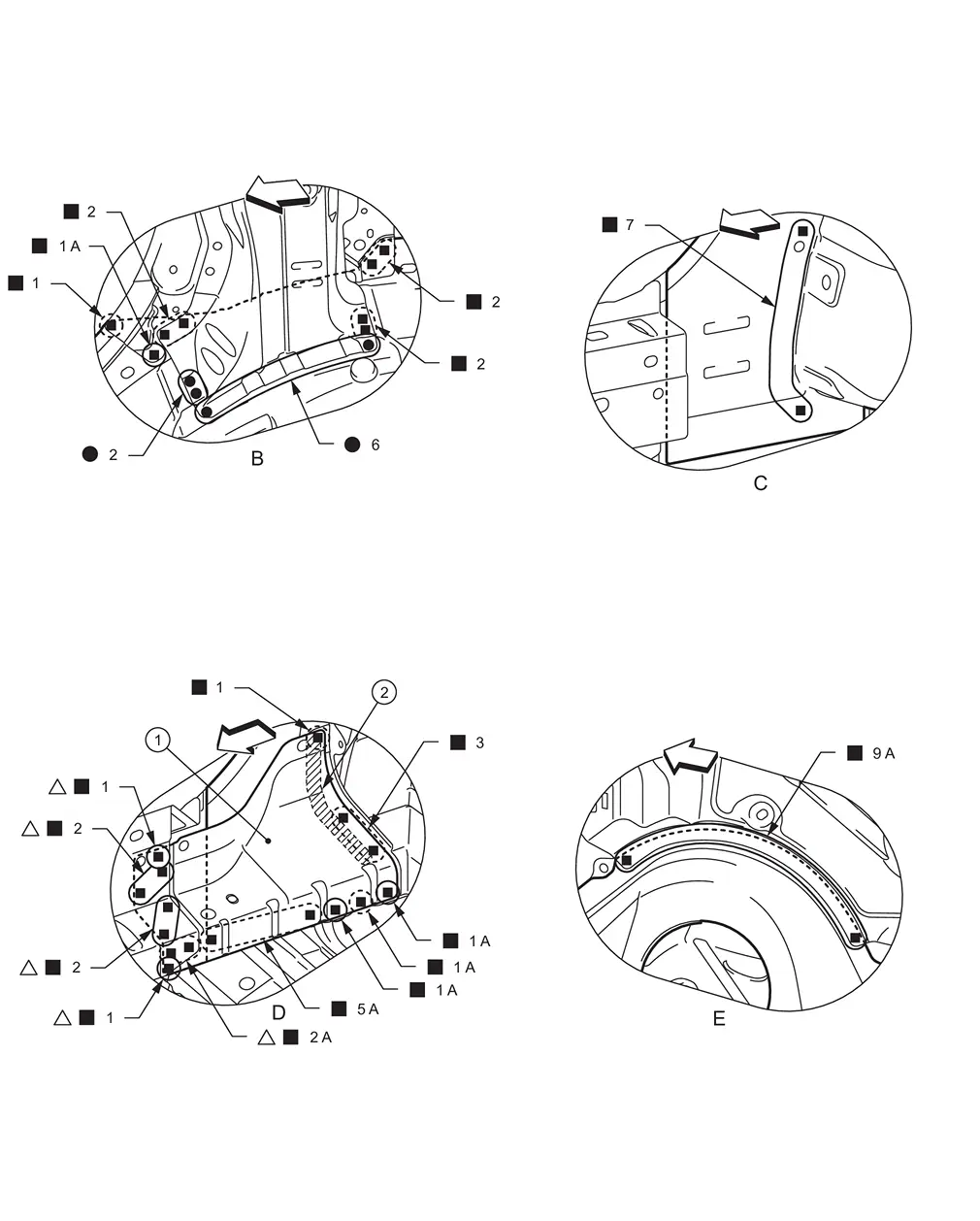

View C: Before installing outer rear sill reinforcement (reusable)
Rear Fender Extension
WARNING:
Body sealing Unit: mm (in) : Weld the parts onto the back of the component part. Replacement part • Rear fender extension ...
Inner Rear Wheelhouse
WARNING:
WITH DYNAMIC DIGITAL SUSPENSION AND ELECTRONIC AIR SUSPENSION MODELS
Work after rear fender, outer rear sill reinforcement, and outer rear wheelhouse are removed.
: Vehicle front
: Weld the ...
