Nissan Armada 2025-2026 Service and Repair Manual: Inner Rear Wheelhouse
WARNING:

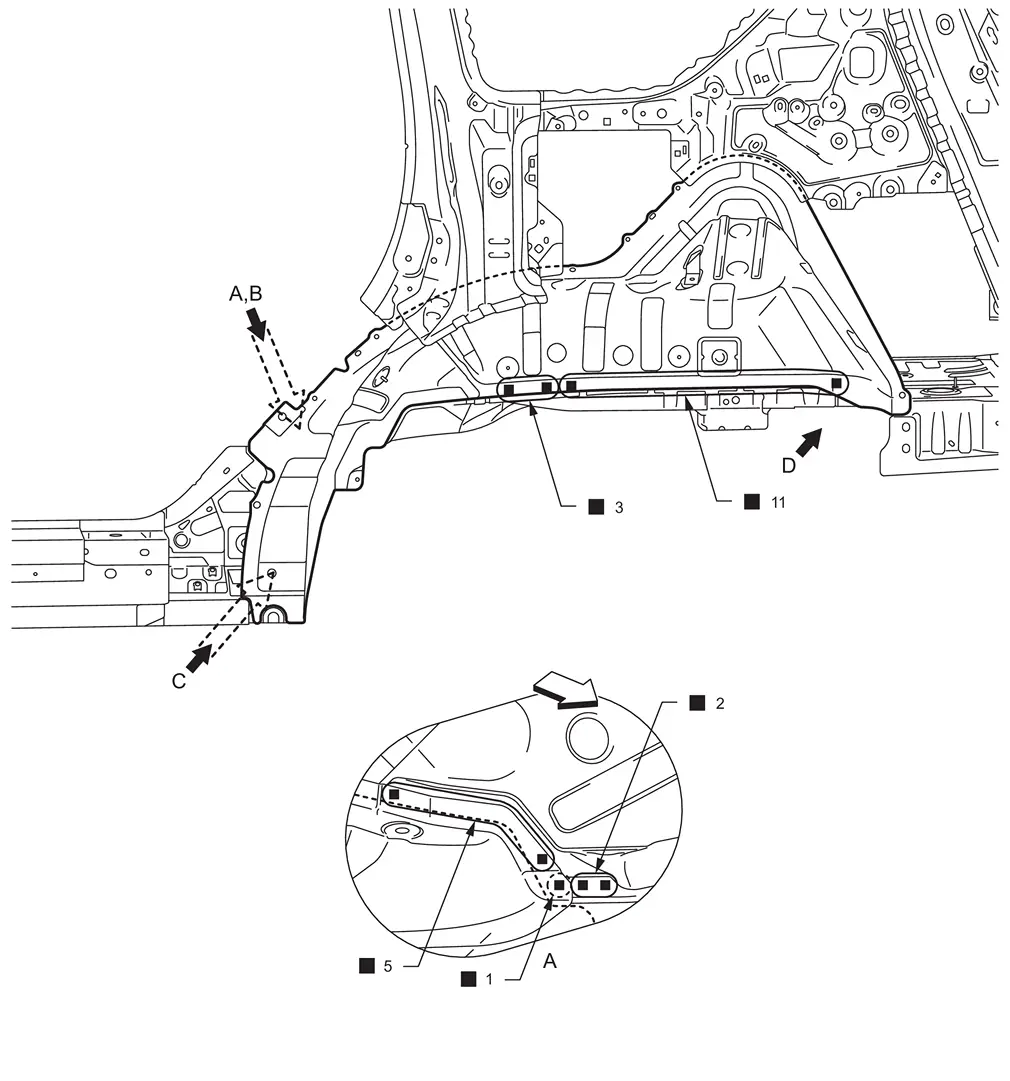

WITH DYNAMIC DIGITAL SUSPENSION AND ELECTRONIC AIR SUSPENSION MODELS
Work after rear fender, outer rear sill reinforcement, and outer rear wheelhouse are removed.
 : Weld the parts onto the back of the component part. | |||||
| Replacement part | |||||
| • | Inner rear wheelhouse | ||||
: Vehicle front

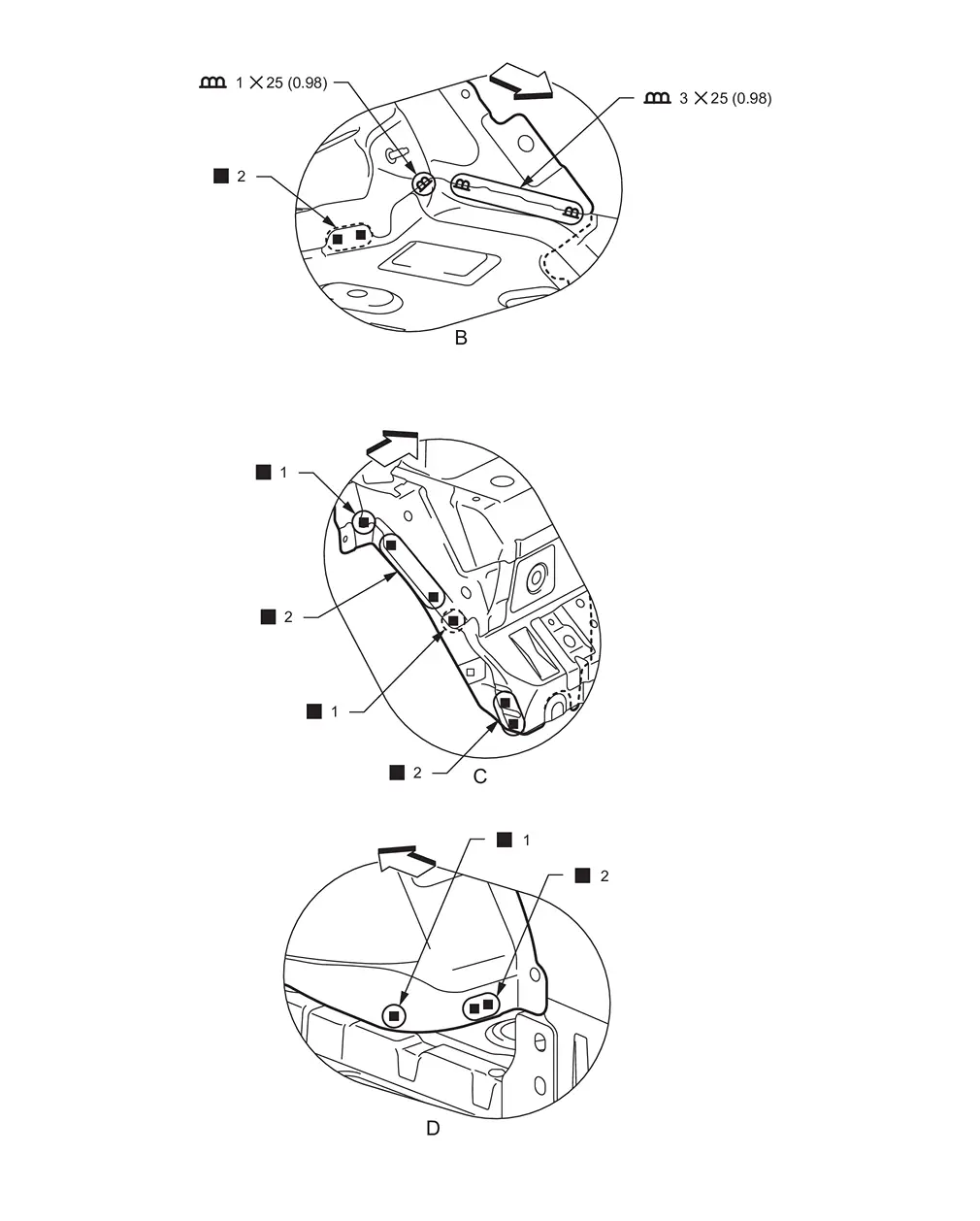

| Unit: mm (in) | |||||
: Weld the parts onto the back of the component part. | |||||

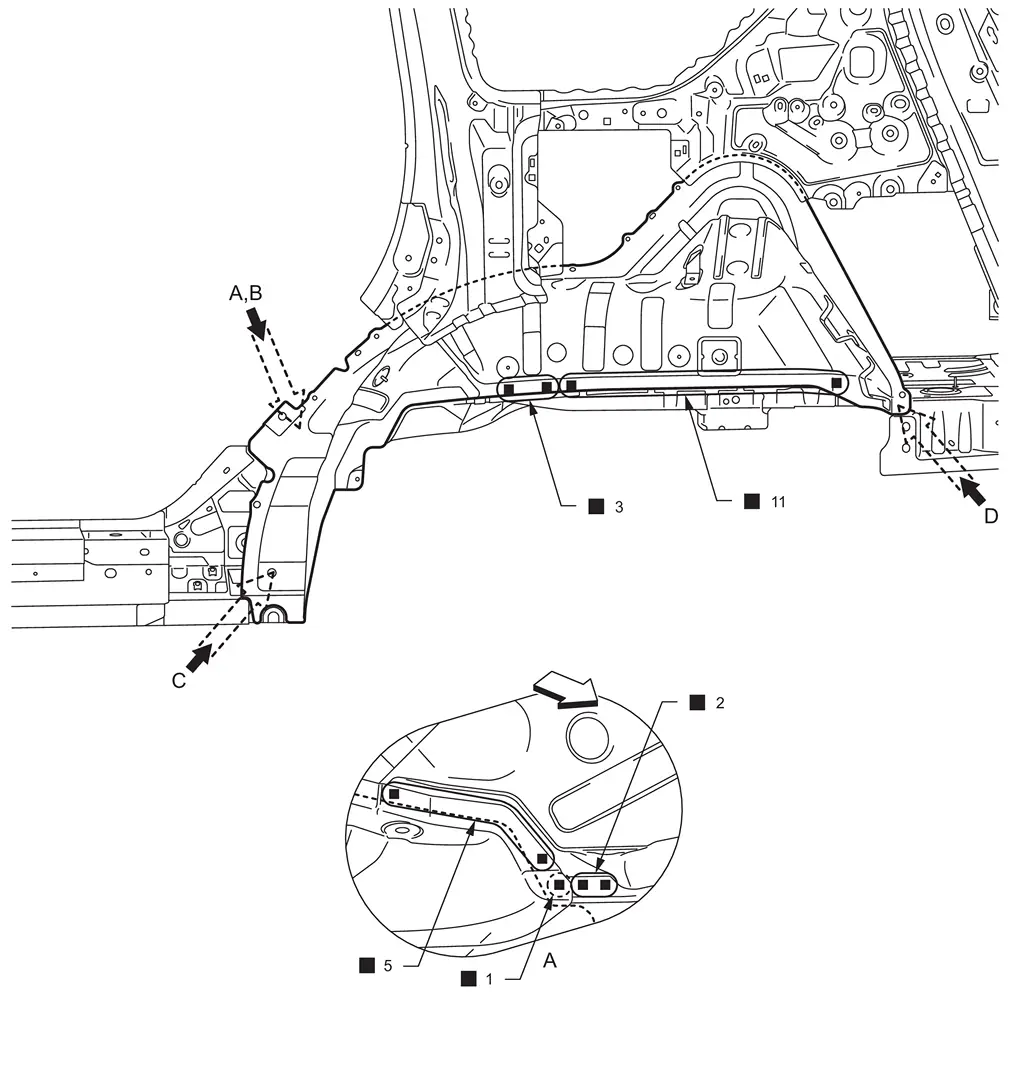

WITHOUT DYNAMIC DIGITAL SUSPENSION AND ELECTRONIC AIR SUSPENSION MODELS
Work after rear fender, outer rear sill reinforcement, and outer rear wheelhouse are removed.
: Weld the parts onto the back of the component part. | |||||
| Replacement part | |||||
| • | Inner rear wheelhouse | ||||

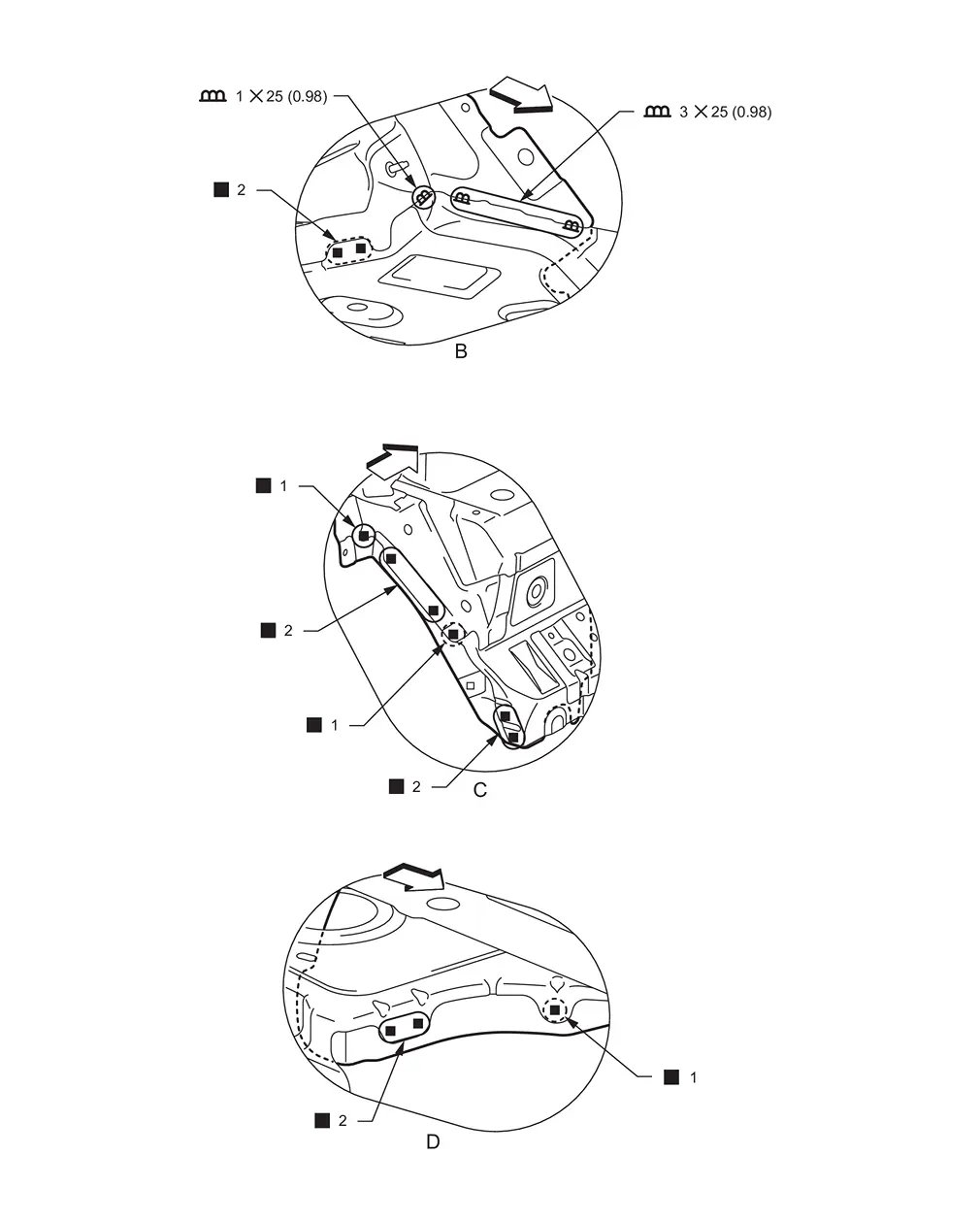

| Unit: mm (in) | |||||
: Weld the parts onto the back of the component part. | |||||
