Nissan Armada 2025-2026 Service and Repair Manual: Outer Sill

Nissan Armada 2025-2026 Service and Repair Manual / Body Exterior, Doors, Roof & Vehicle Security / Body Repair — Repair Information / Removal and Installation / Outer Sill

WARNING:

For easier installation, remove the "View A, B, C, D, E, F and U" weld point, bolt and nut.

Remove the lower side dash assembly (reusable) from the vehicle for easier installation.

	Body sealing		Urethane foam
: Vehicle front : Weld the parts onto the back of the component part. *: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to Welding of Ultra High Strength Steel.

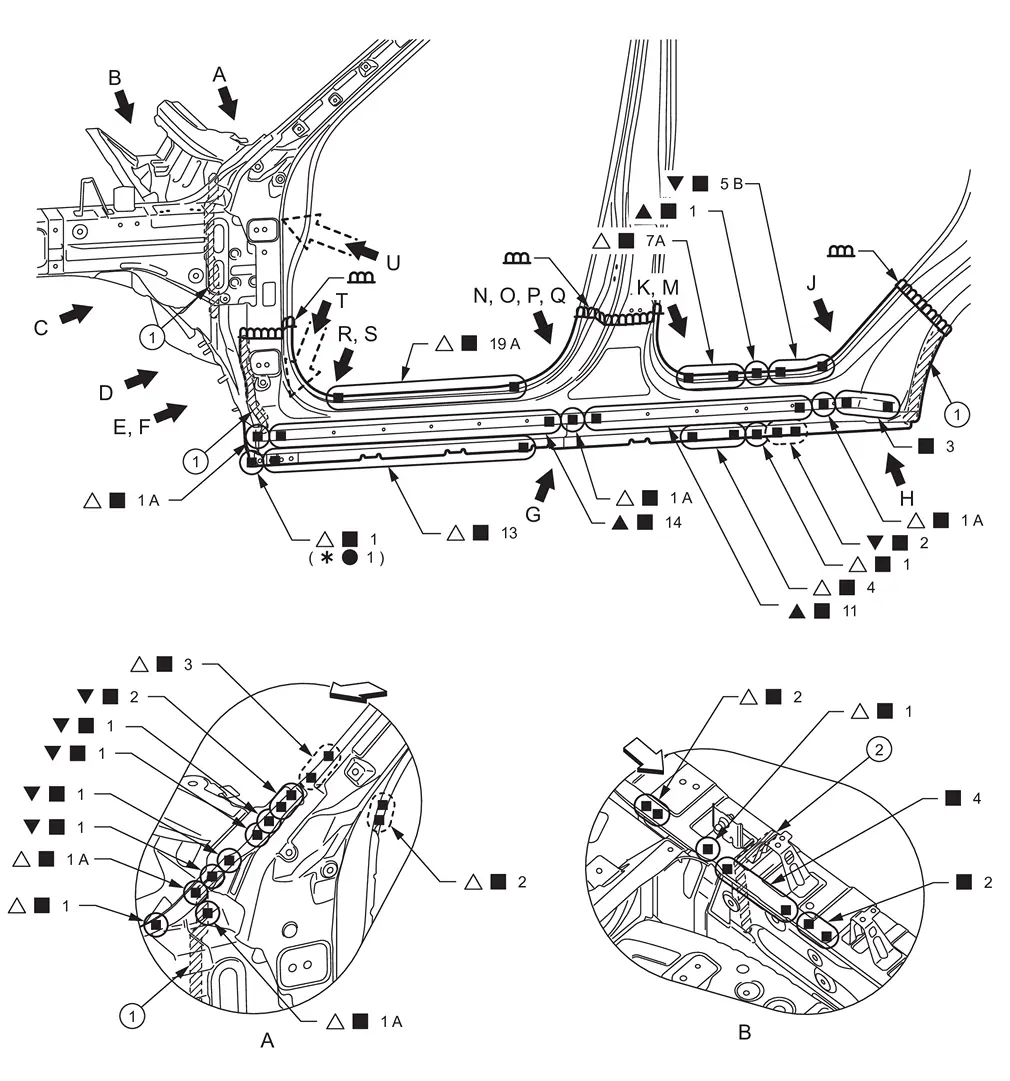

Replacement part
•	Outer sill assembly	•	Outer sill reinforcement

Urethane foam

Body sealing

Lower side dash assembly (reusable)

: Vehicle front

: Weld the parts onto the back of the component part.

: N•m (kg-m, ft-lb)

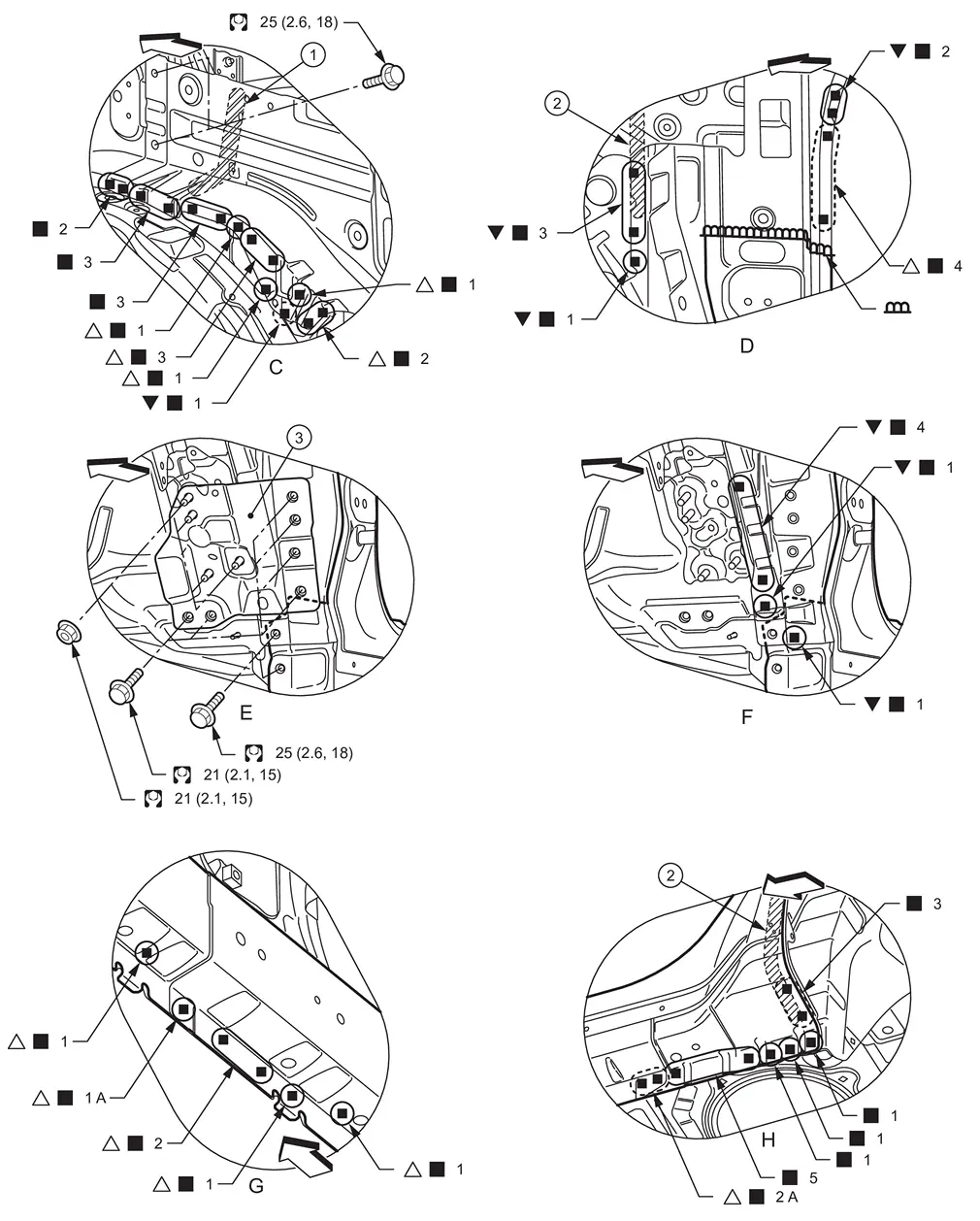

View F: Before installing lower side dash assembly

View G: Before installing outer sill assembly

	Body sealing	Urethane foam	Lower center pillar brace (reusable)
Unit: mm (in)
: Vehicle front : Drill φ8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel).

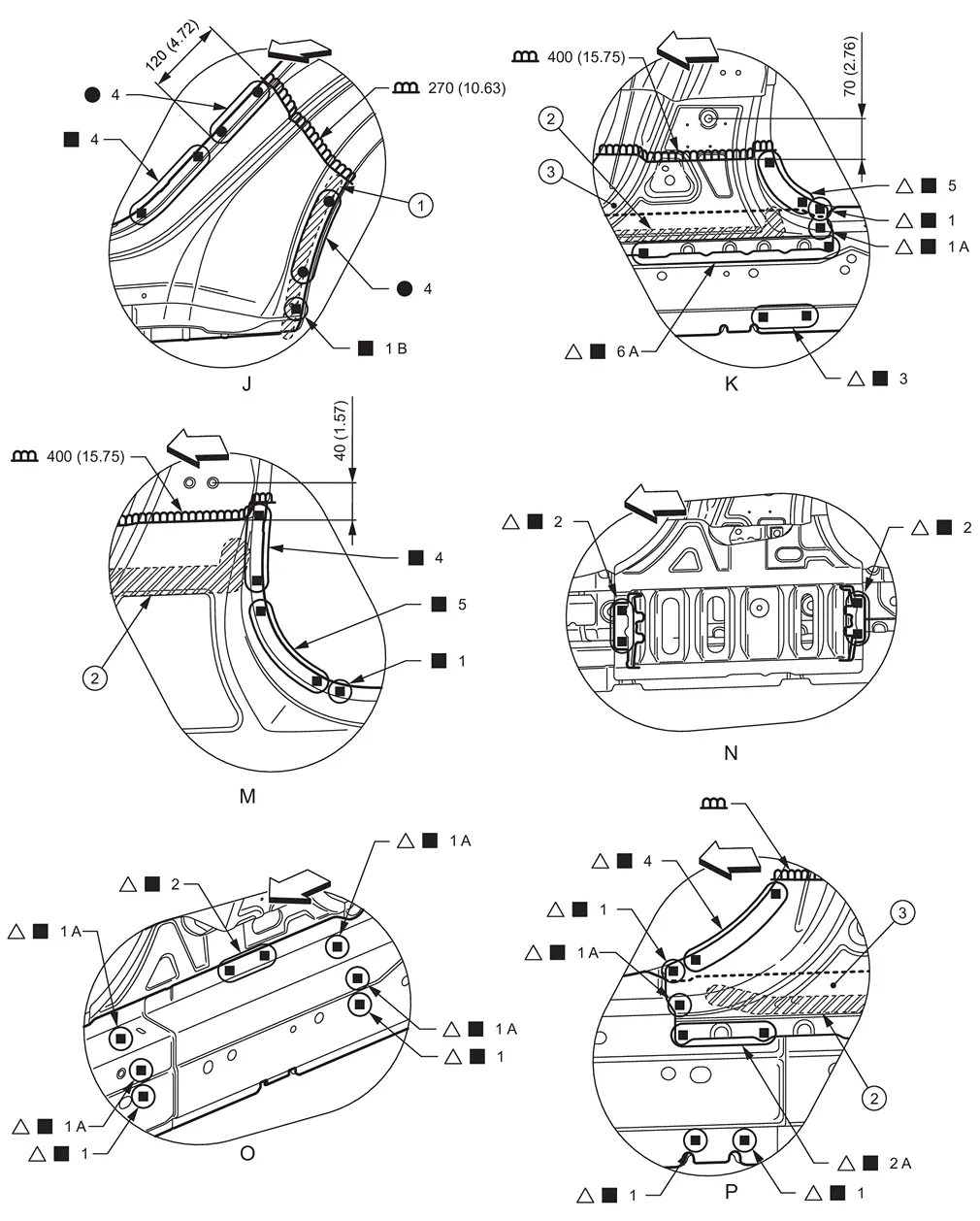

View K and P: Before installing outer sill assembly

View N: Before installing outer sill assembly, lower center pillar brace, and outer sill reinforcement

View O: Before installing outer sill assembly and lower center pillar brace

Urethane foam

Body sealing

Unit: mm (in)

: Vehicle front

: Weld the parts onto the back of the component part.

*: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to Welding of Ultra High Strength Steel.

: N•m (kg-m, ft-lb)

: N•m (kg-m, in-lb)

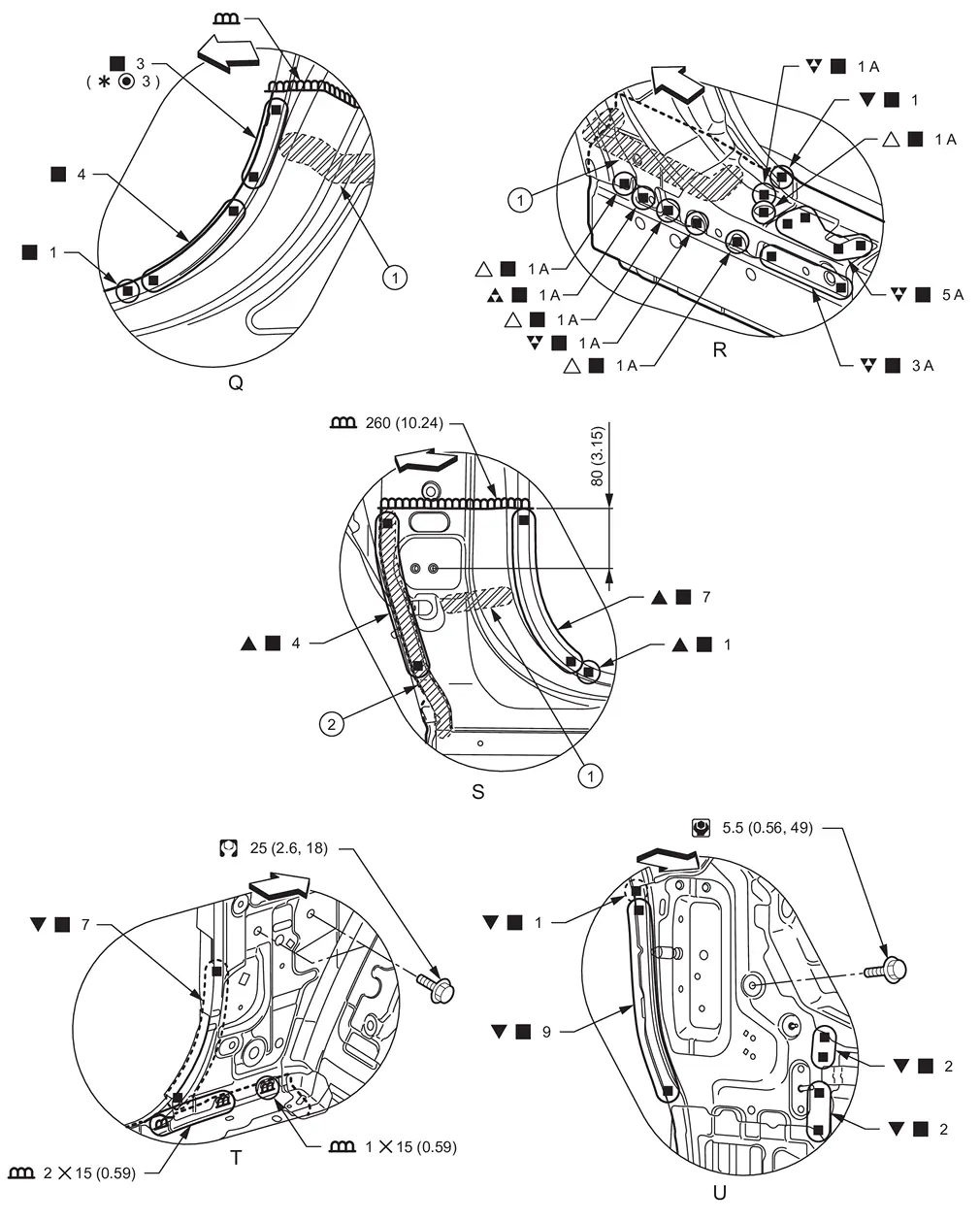

View R and T: Before installing outer sill assembly

PARTIAL REPLACEMENT

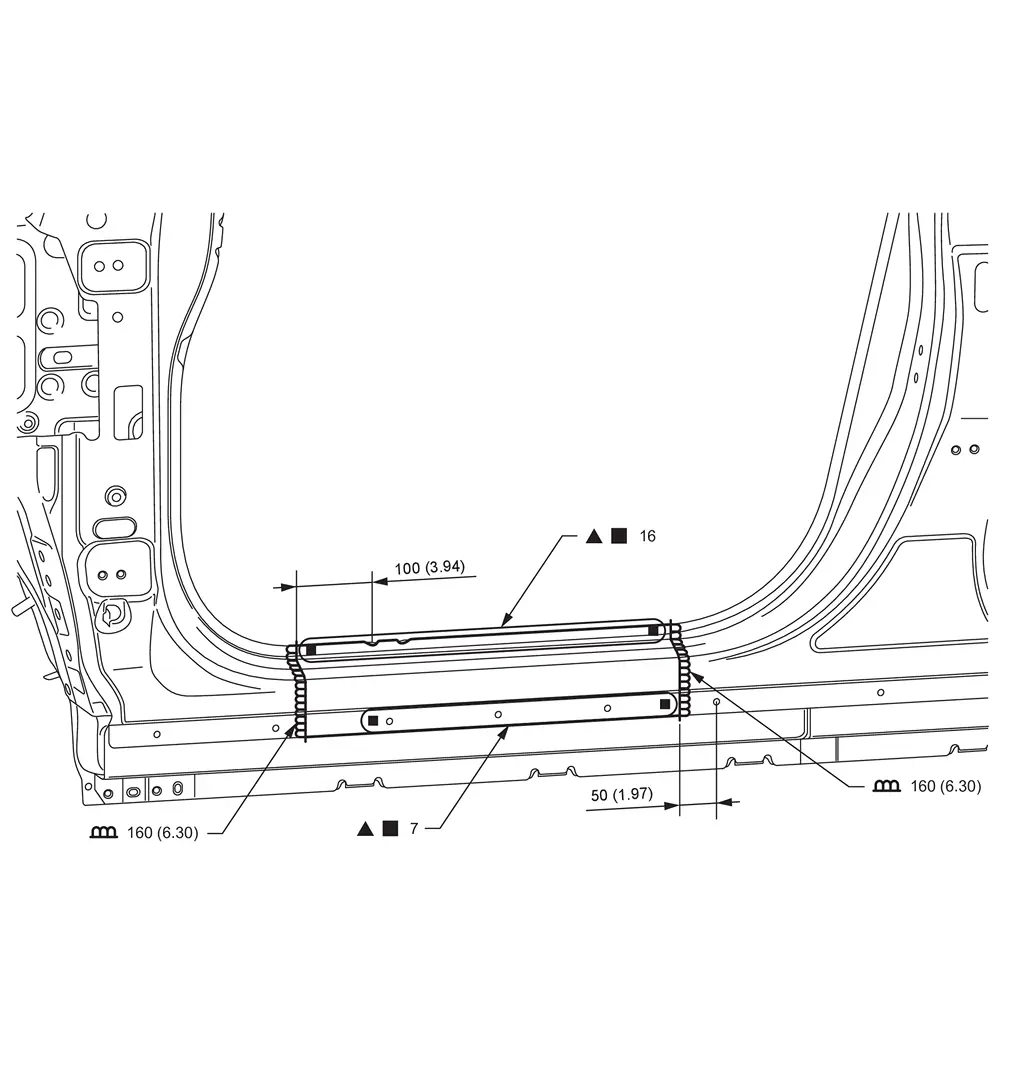

Unit: mm (in)
: Drill φ6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel).
Replacement part
•	Outer sill assembly

Side Body

WARNING: Work after hoodledge reinforcement and roof are removed. Remove the lower side dash assembly (reusable) from the vehicle for easier installation. Urethane foam : Weld the parts onto the bac ...

Inner Center Pillar

WARNING: Work after center pillar and outer sill are removed. Unit: mm (in) : Vehicle front : Drill φ8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel). Replacement part � ...
