Nissan Armada 2025-2026 Service and Repair Manual: Side Body
WARNING:
Work after hoodledge reinforcement and roof are removed.
Remove the lower side dash assembly (reusable) from the vehicle for easier installation.

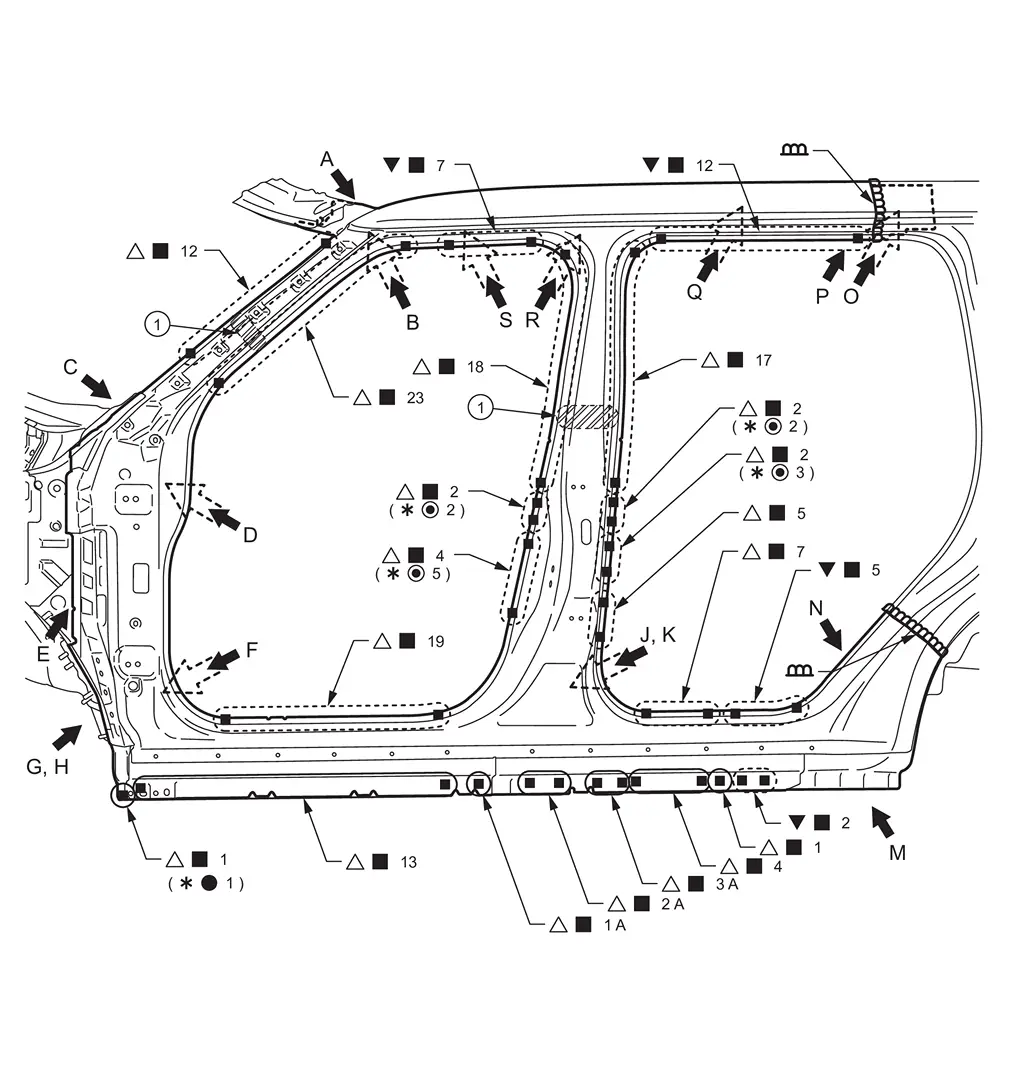

 | Urethane foam | ||||
| |||||
| Replacement part | |||||
| • | Upper inner front pillar | • | Inner side roof rail | • | Inner center pillar |
| • | Side body assembly | • | Lower side dash assembly | ||
: Weld the parts onto the back of the component part.

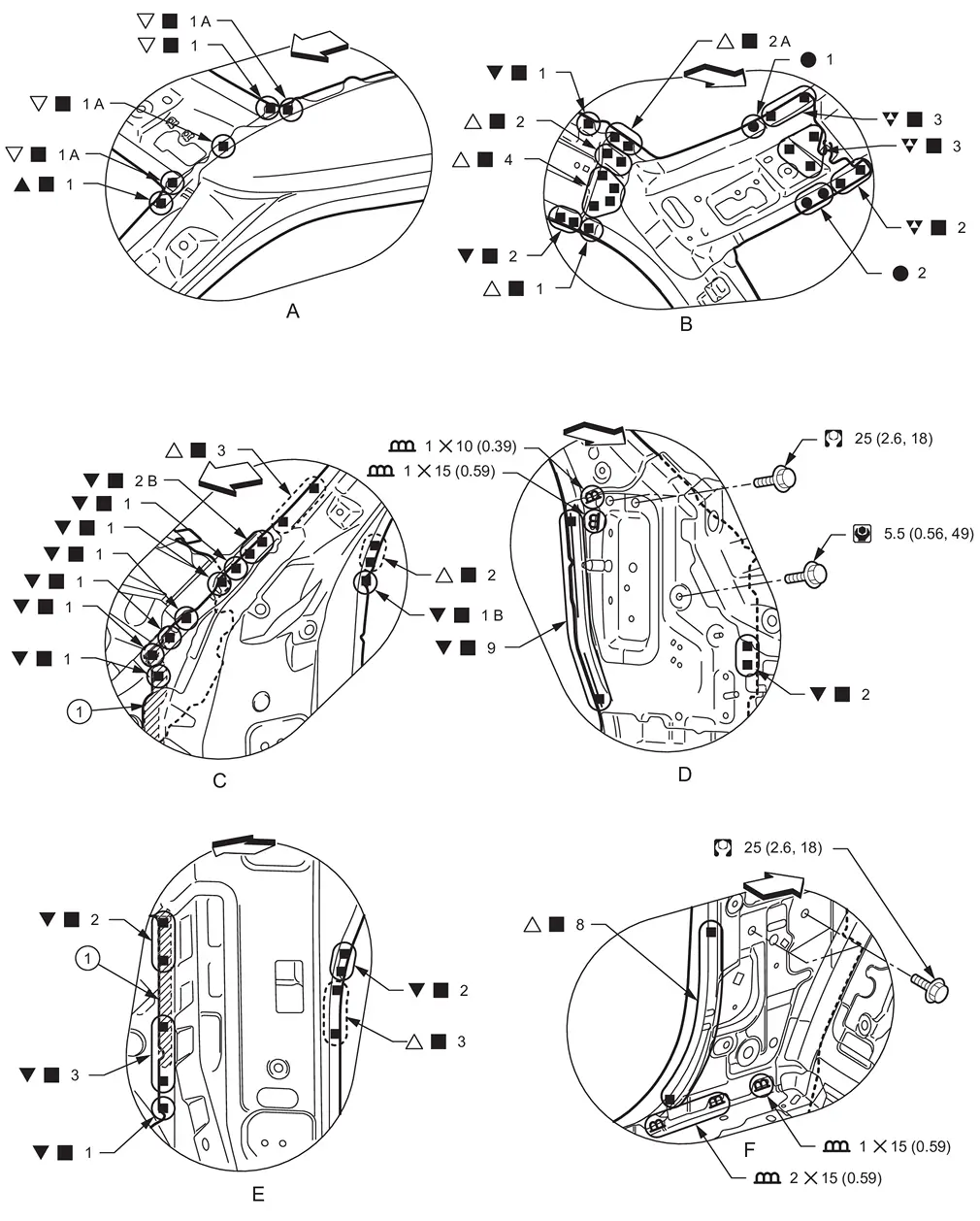

| Body sealing | ||||
| Unit: mm (in) | |||||
 : N•m (kg-m, in-lb) | |||||
: Vehicle front

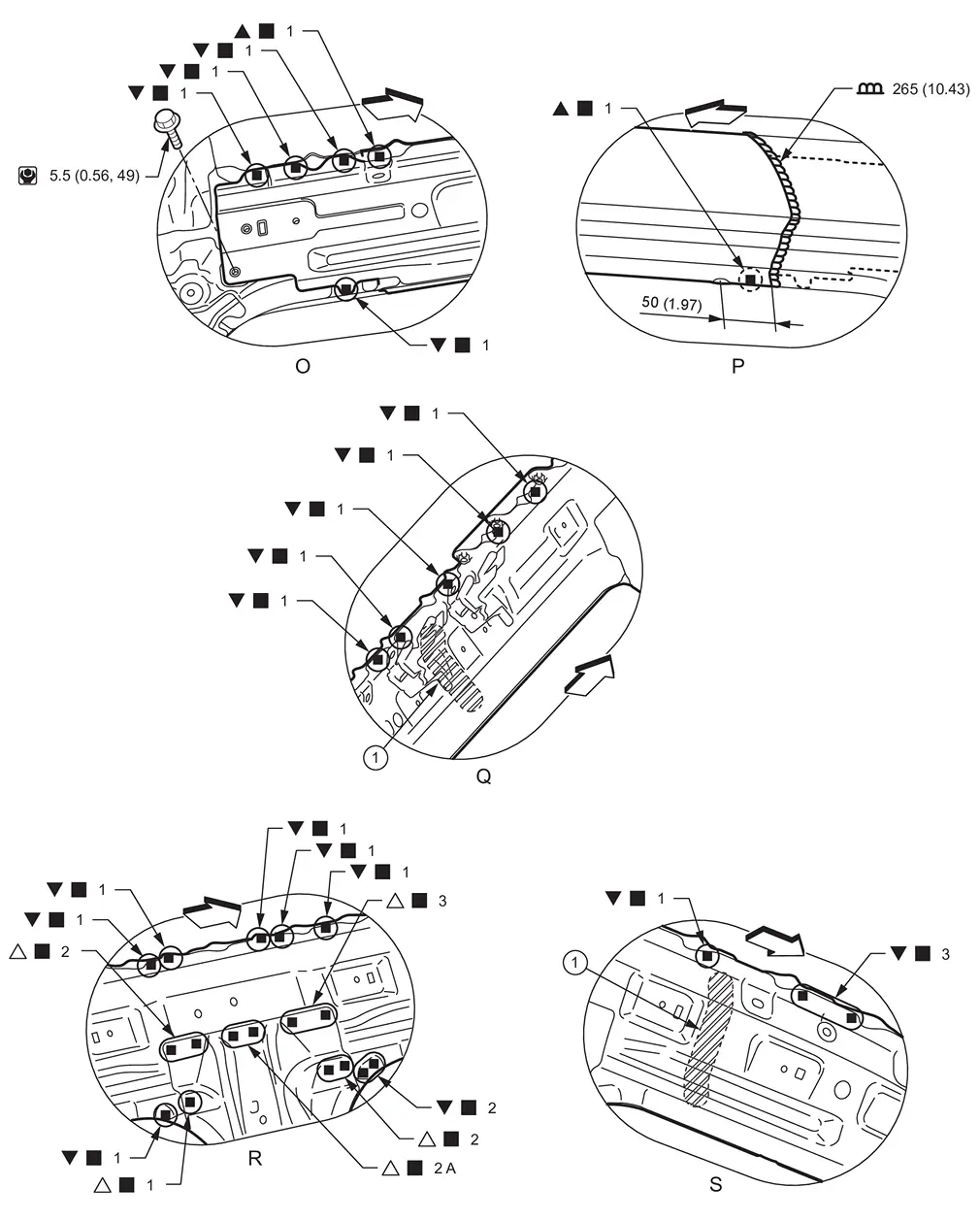

| Body sealing | ||||
| Unit: mm (in) | |||||
*: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to Welding of Ultra High Strength Steel.  : N•m (kg-m, ft-lb) | |||||
View H: Before installing lower side dash assembly

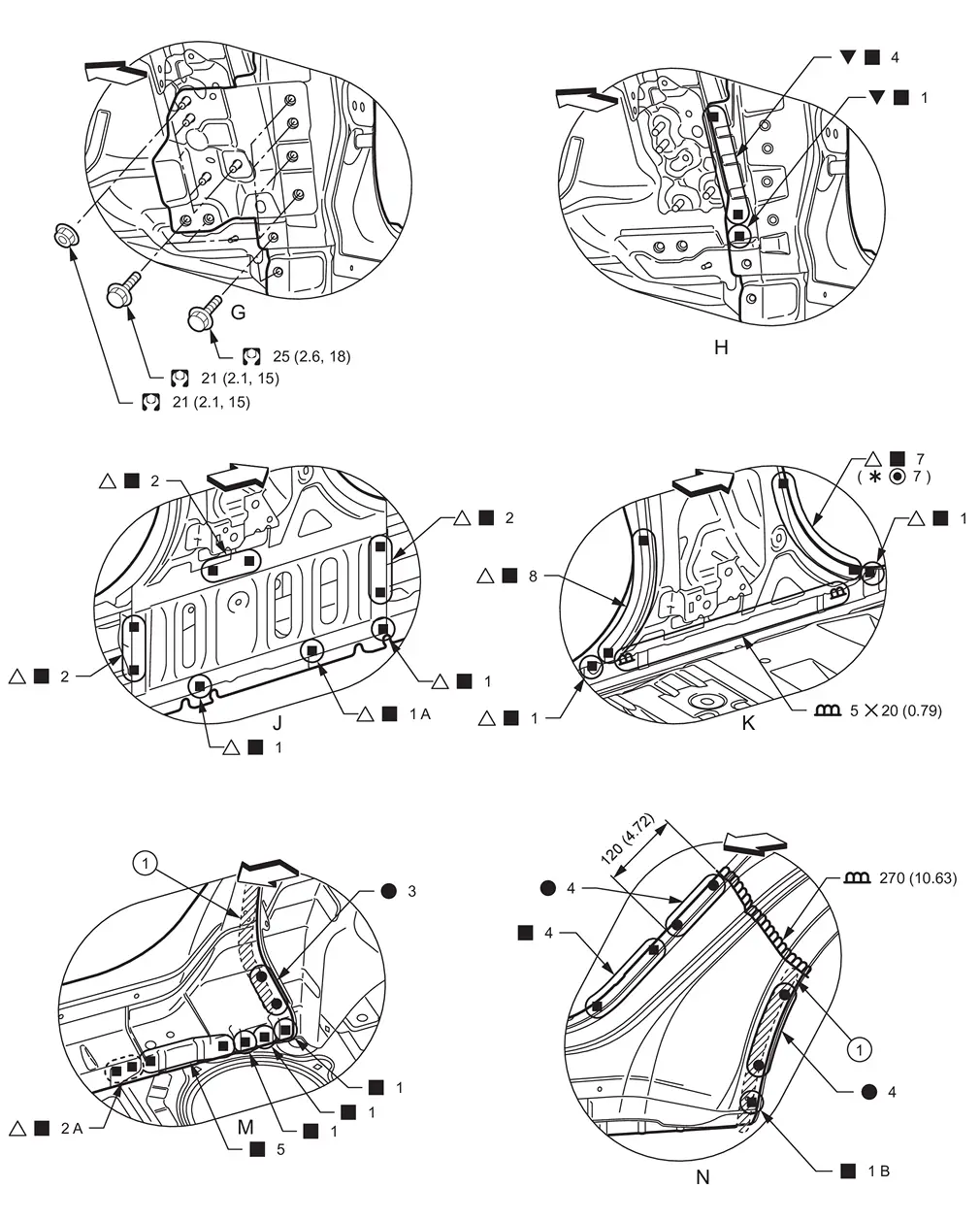

View J: Inner center pillar (replacement part) and side body assembly (replacement part)
| Urethane foam | ||||
| Unit: mm (in) | |||||
: N•m (kg-m, in-lb) | |||||
Center Pillar
WARNING:
Urethane foam Unit: mm (in) : Vehicle front
*: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to Welding of Ultra High Stre ...
Outer Sill
WARNING:
For easier installation, remove the "View A, B, C, D, E, F and U" weld point, bolt and nut.
Remove the lower side dash assembly (reusable) from the vehicle for easier installation.
Body sea ...
