Nissan Armada 2025-2026 Service and Repair Manual: Quick Connector
CAUTION:
After connecting fuel tube quick connectors, check quick connectors are secure.

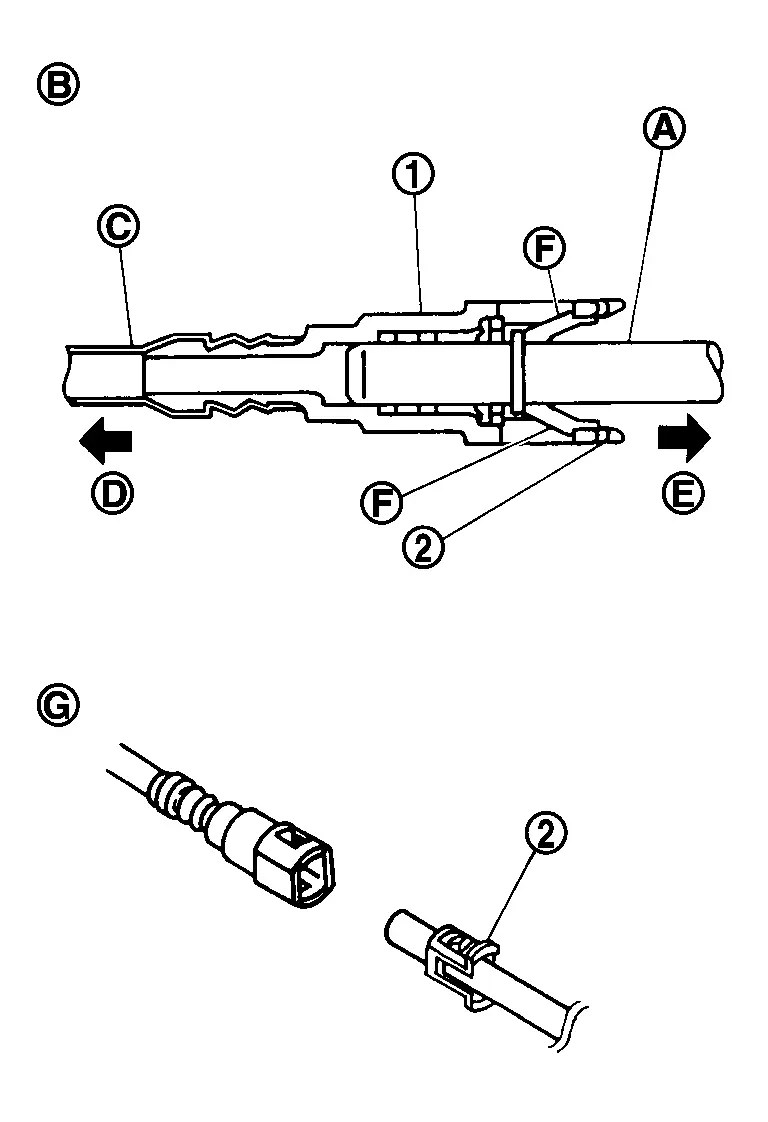

: Quick connector
: Retainer
: Hard tube (or the equivalent)
: Connection (cross-section)
: Resin tube
: To under floor fuel line
: To fuel tank
: Tab
: Disconnection Ensure that connector and resin tube never contact any adjacent parts.
