Nissan Armada 2025-2026 Service and Repair Manual: Radiator Core Main Support

Side Radiator Core Support

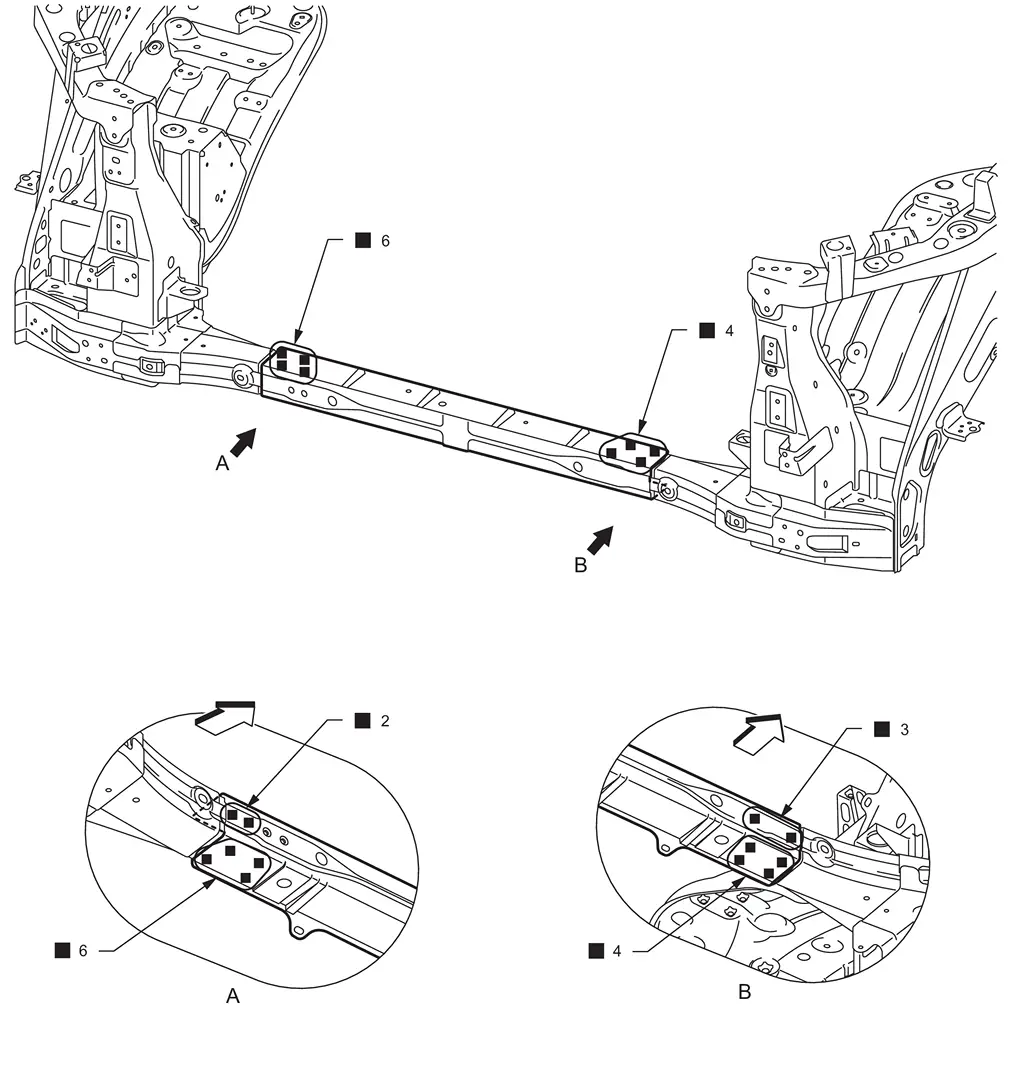

WARNING: : Vehicle front : Weld the parts onto the back of the component part. Replacement part • Side radiator core support : Vehicle front : Weld the parts onto the back of the component par ...

Hoodledge

WARNING: Work after side radiator core support is removed. Urethane foam Body sealing : Vehicle front : Drill φ8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel). : Weld the ...

Other materials:

Inner Rear Wheelhouse
WARNING: WITH DYNAMIC DIGITAL SUSPENSION AND ELECTRONIC AIR SUSPENSION MODELS Work after rear fender, outer rear sill reinforcement, and outer rear wheelhouse are removed. : Vehicle front : Weld the parts onto the back of the component part. Replacement part • Inner rear wheelhouse Unit: mm ...

Work Flow
OVERALL SEQUENCE DETAILED FLOW INTERVIEW FOR MALFUNCTION NOTE: >> GO TO 2. SELF-DIAGNOSIS WITH CONSULT Perform “All DTC Reading” with CONSULT. Check if the DTC is detected on the self-diagnosis results of following. “ICC/ADAS 2” Is any DTC detected? YES>> Record or print s ...

Lower Anchors and Tethers for CHildren System (LATCH)
LATCH system lower anchor locations - models with 2nd row captain's seats LATCH system lower anchor locations - models with 2nd row bench seat Lower Anchors and Tethers for CHildren System (LATCH) Basic information The Nissan Armada is equipped with a dedicated child safety anchoring ...
