Nissan Armada 2025-2026 Service and Repair Manual / Body Exterior, Doors, Roof & Vehicle Security / Body Repair — Repair Information / Removal and Installation / Hoodledge

WARNING:

Work after side radiator core support is removed.

	Urethane foam		Body sealing

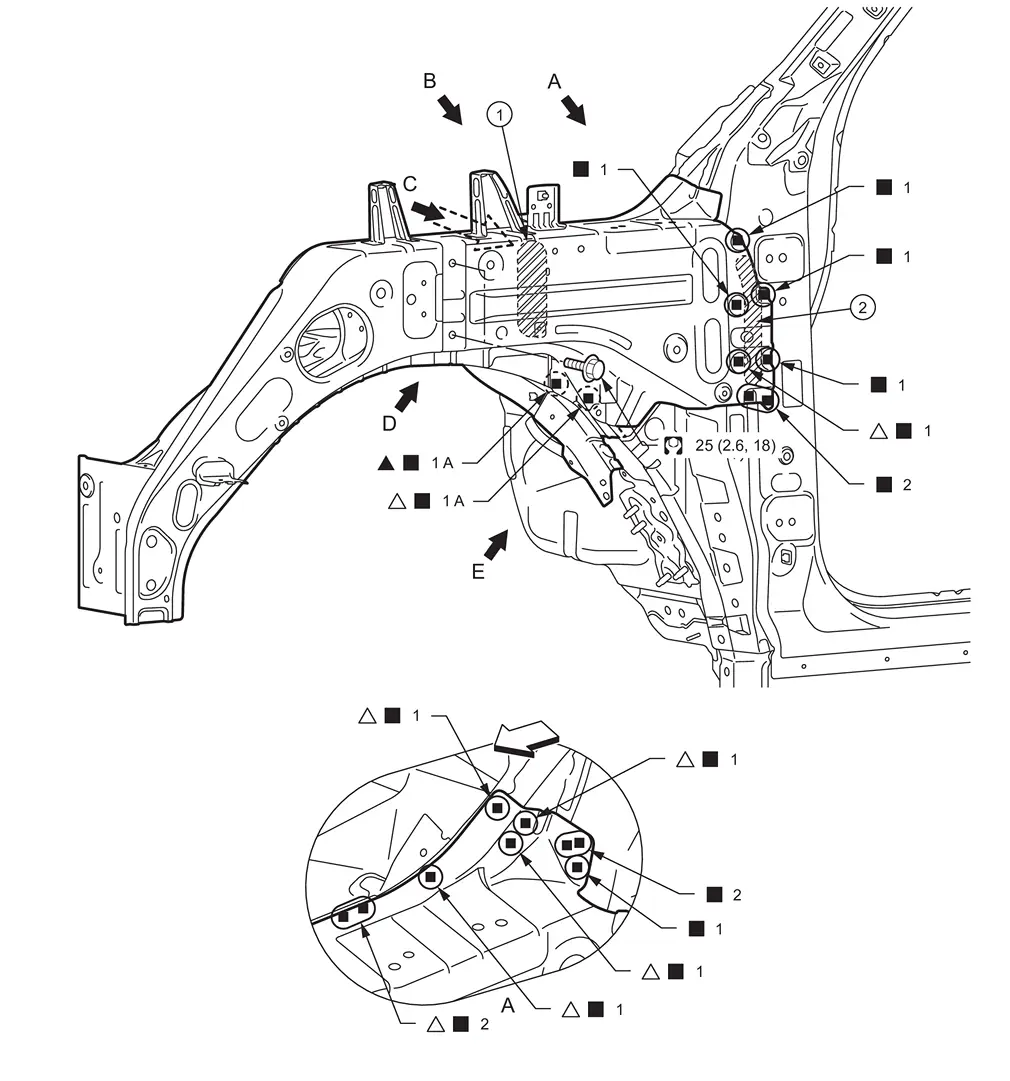

: Vehicle front : Drill φ8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel). : Weld the parts onto the back of the component part. : N•m (kg-m, ft-lb)
Replacement part
•	Hoodledge assembly	•	Hoodledge reinforcement

Urethane foam

: Vehicle front

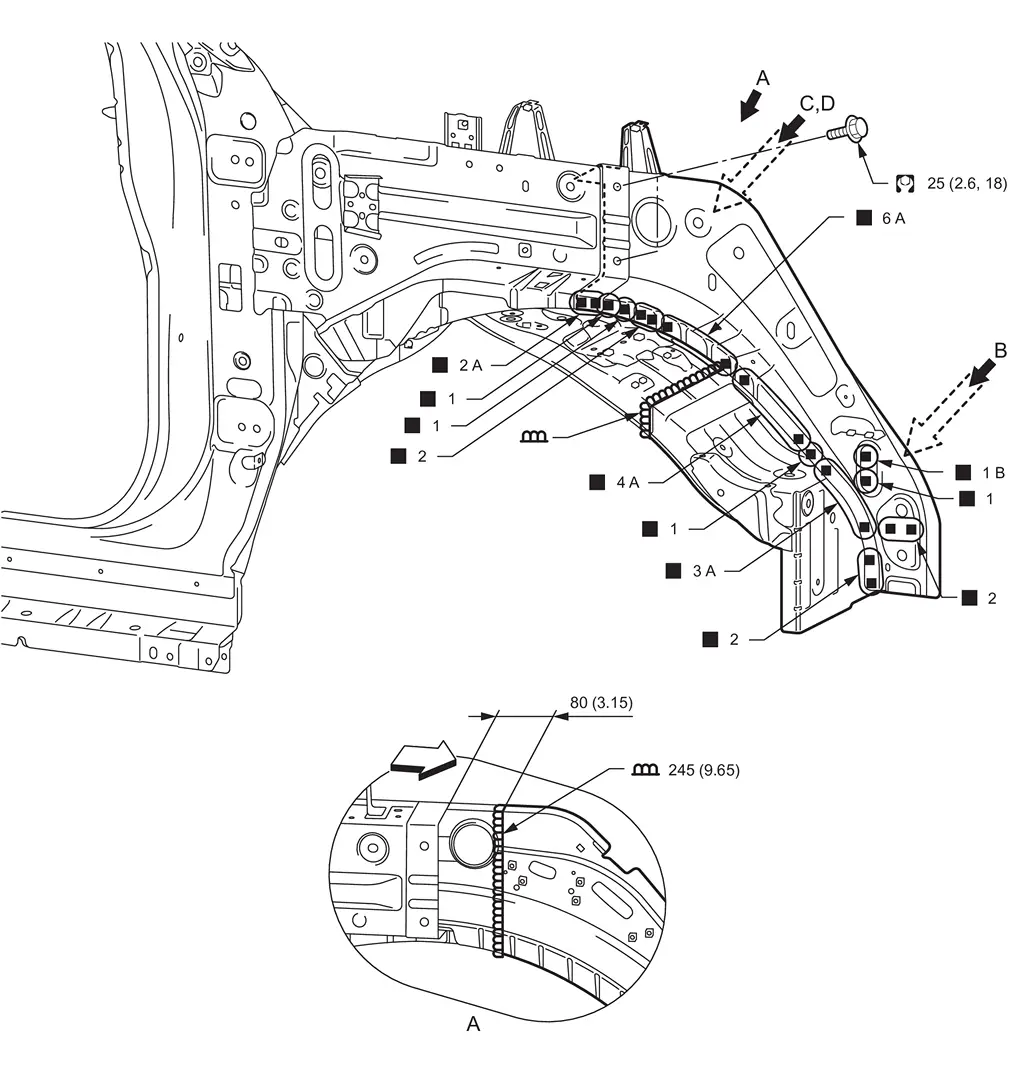

: Drill φ7 mm (0.28 in) hole for the plug welding hole (ultra high strength steel).

: Drill φ9 mm (0.35 in) hole for the plug welding hole (ultra high strength steel).

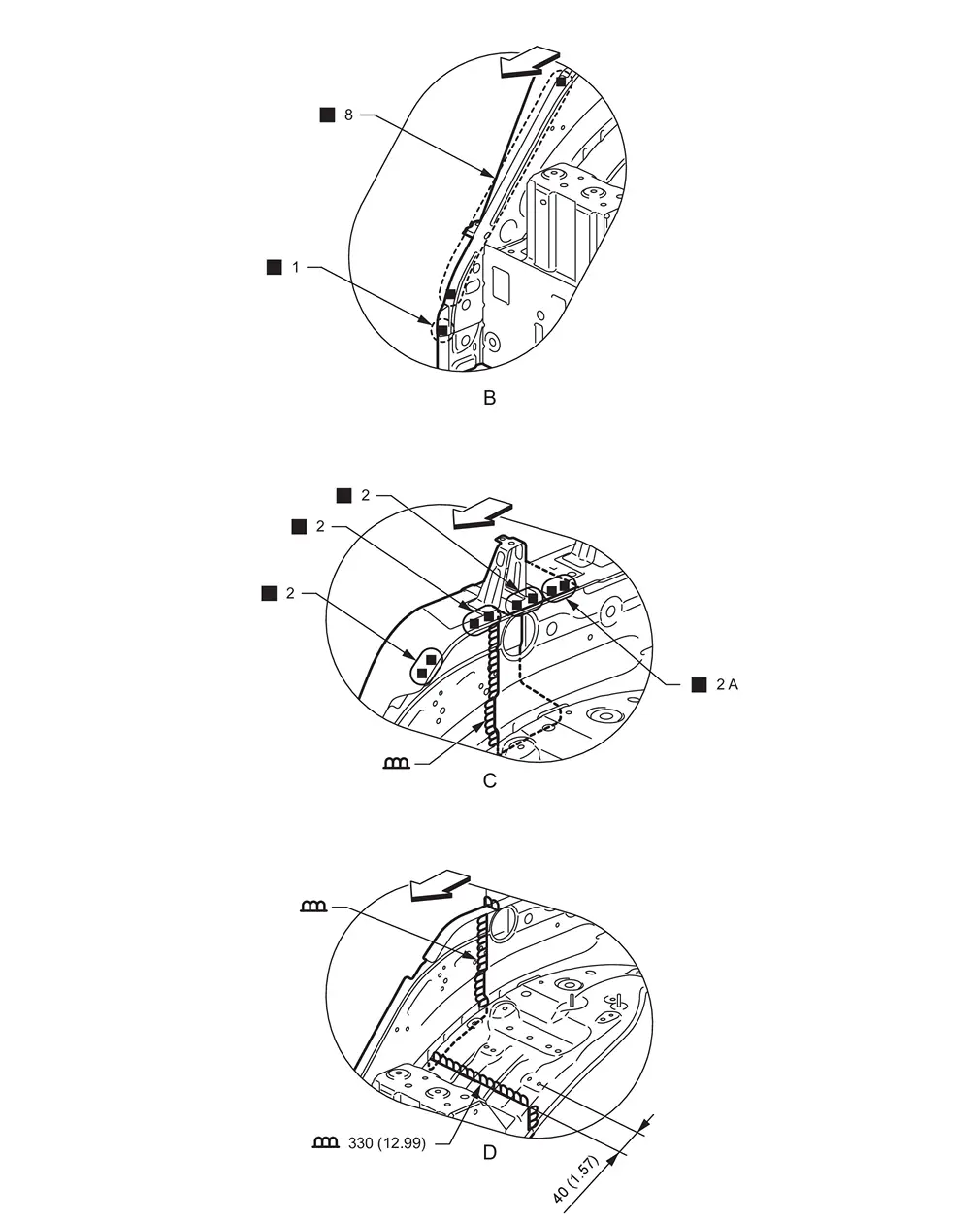

: Weld the parts onto the back of the component part.

PARTIAL REPLACEMENT

Work after side radiator core support is removed.

Unit: mm (in)
: Vehicle front : N•m (kg-m, ft-lb)
Replacement part
•	Hoodledge assembly

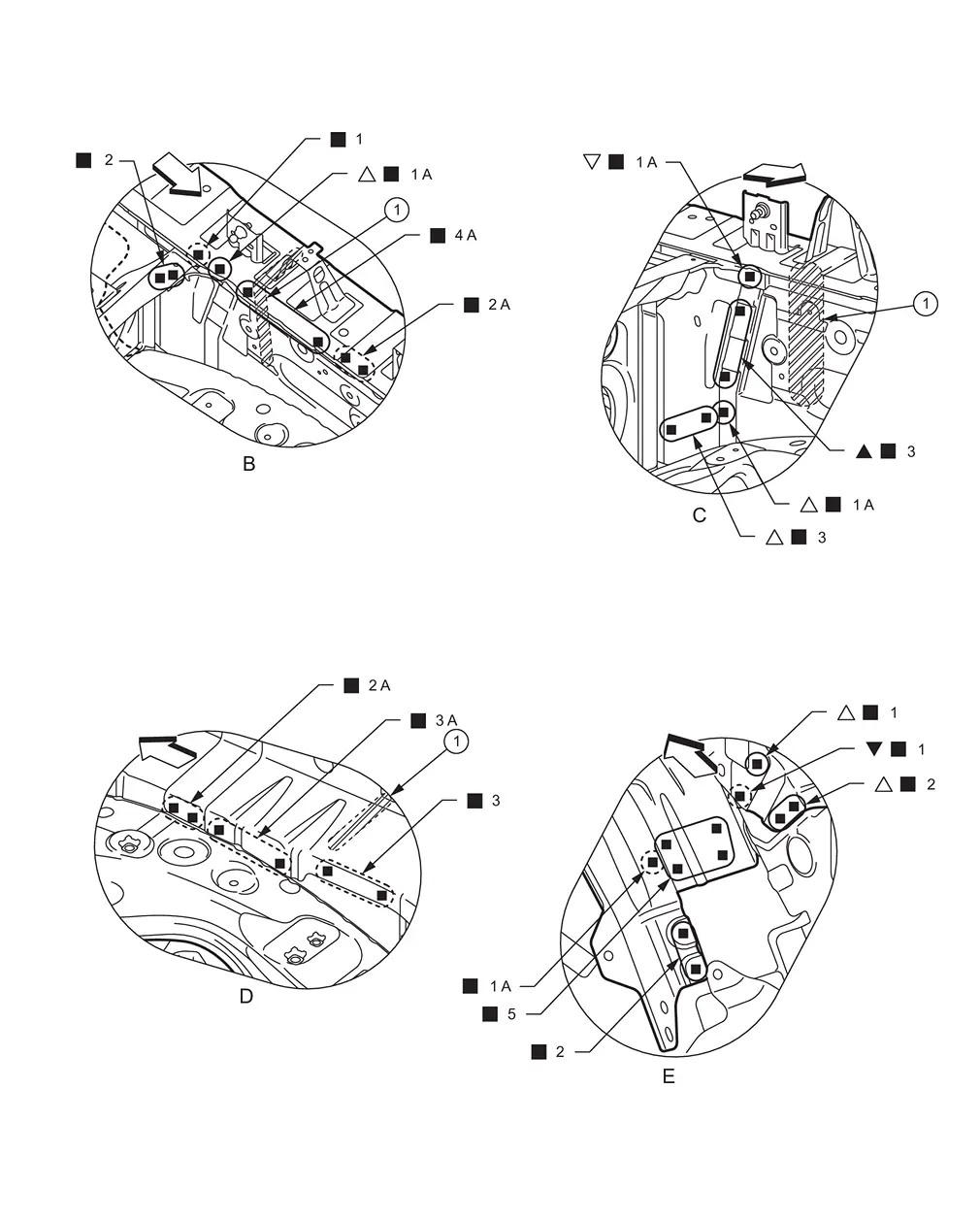

View A: Before installing hoodledge connecter bracket assembly

Unit: mm (in)
: Vehicle front : Weld the parts onto the back of the component part.

View D: Before installing hoodledge connecter bracket assembly

Radiator Core Main Support

WARNING: : Vehicle front Replacement part • Radiator core main support assembly ...

Front Pillar

WARNING: Work after hoodledge reinforcement and roof are removed. Body sealing Urethane foam Unit: mm (in) : Vehicle front : Weld the parts onto the back of the component part. Replacement part ...
