Nissan Armada 2025-2026 Service and Repair Manual: Rear Fender
WARNING:
Work after roof is removed.

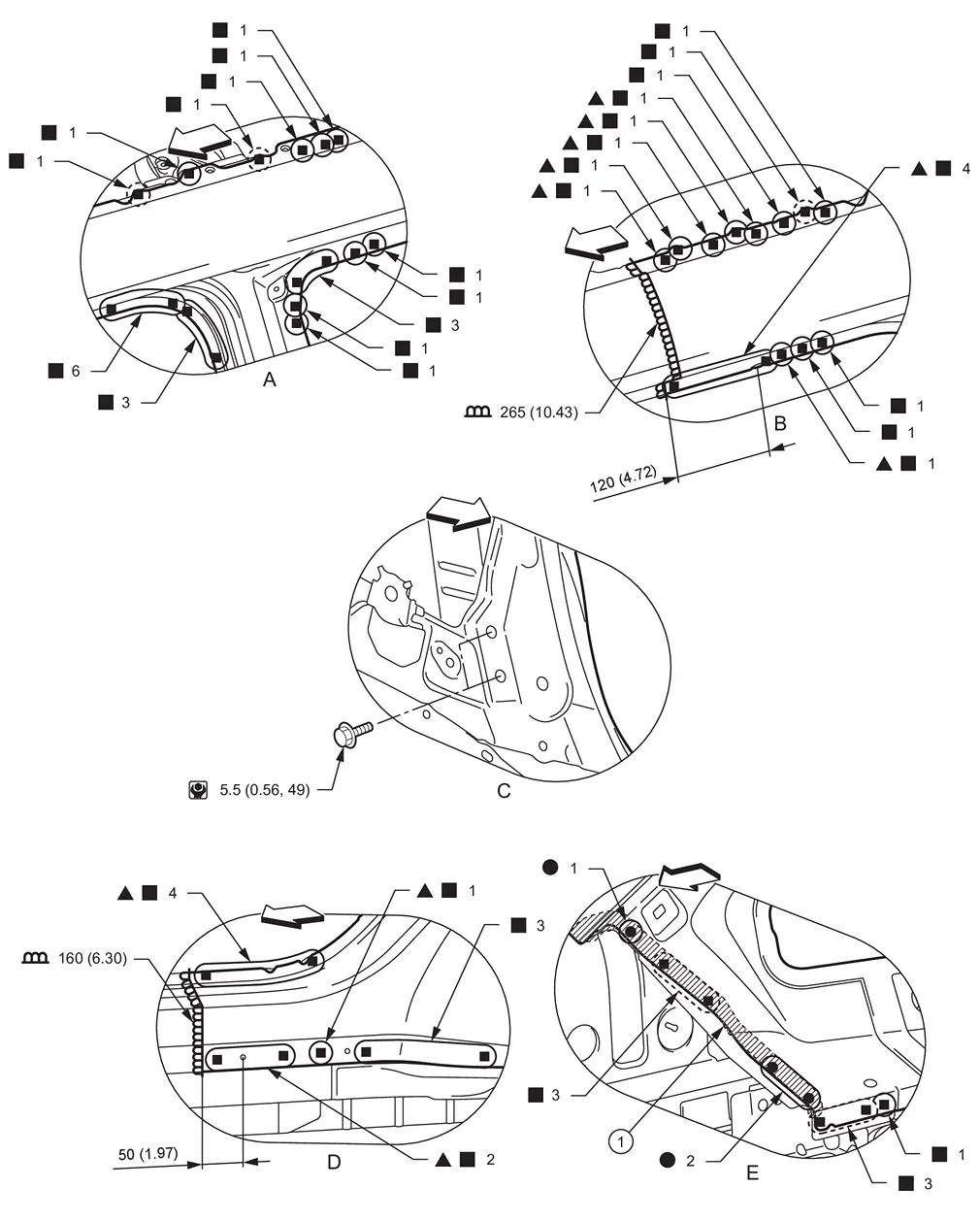

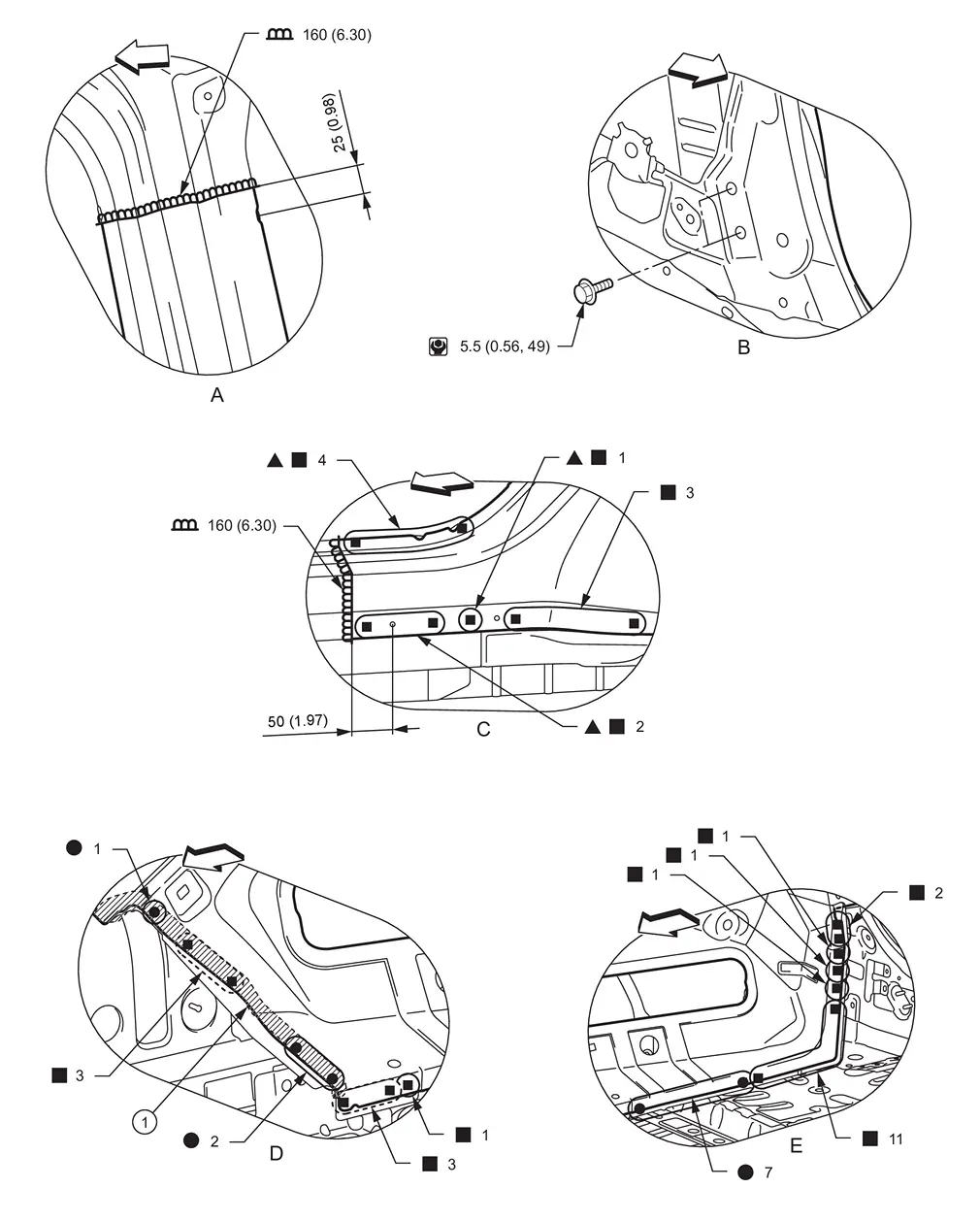

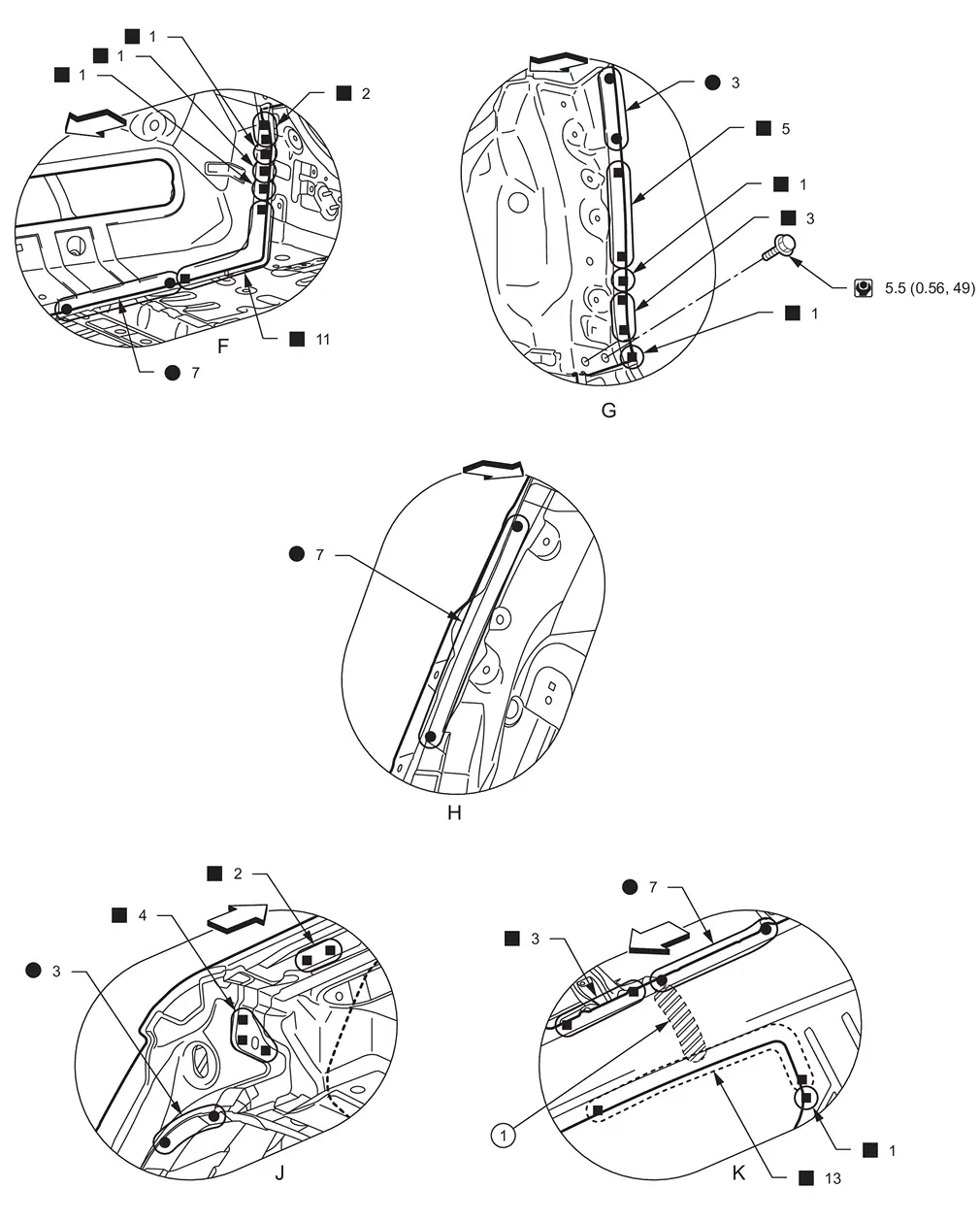

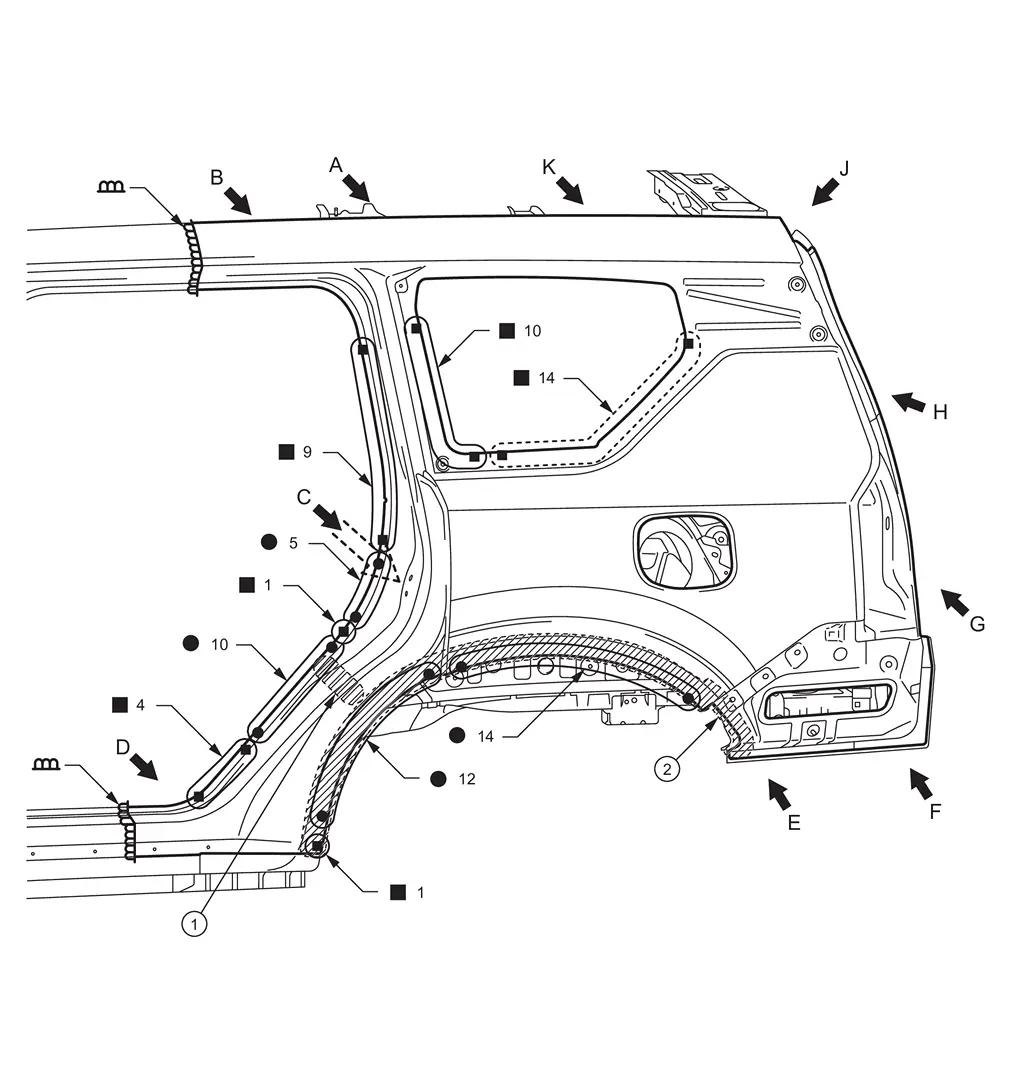

 | Urethane foam |  | Body sealing | ||
 : Weld the parts onto the back of the component part. | |||||
| Replacement part | |||||
| • | Rear fender | ||||
| Body sealing | ||||
| Unit: mm (in) | |||||
 : Vehicle front | |||||
 : Drill φ6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel). | |||||
| : Weld the parts onto the back of the component part. | |||||
 : N•m (kg-m, in-lb) | |||||
| Urethane foam | ||||
| : Vehicle front | |||||
| : Weld the parts onto the back of the component part. | |||||
| : N•m (kg-m, in-lb) | |||||
PARTIAL REPLACEMENT

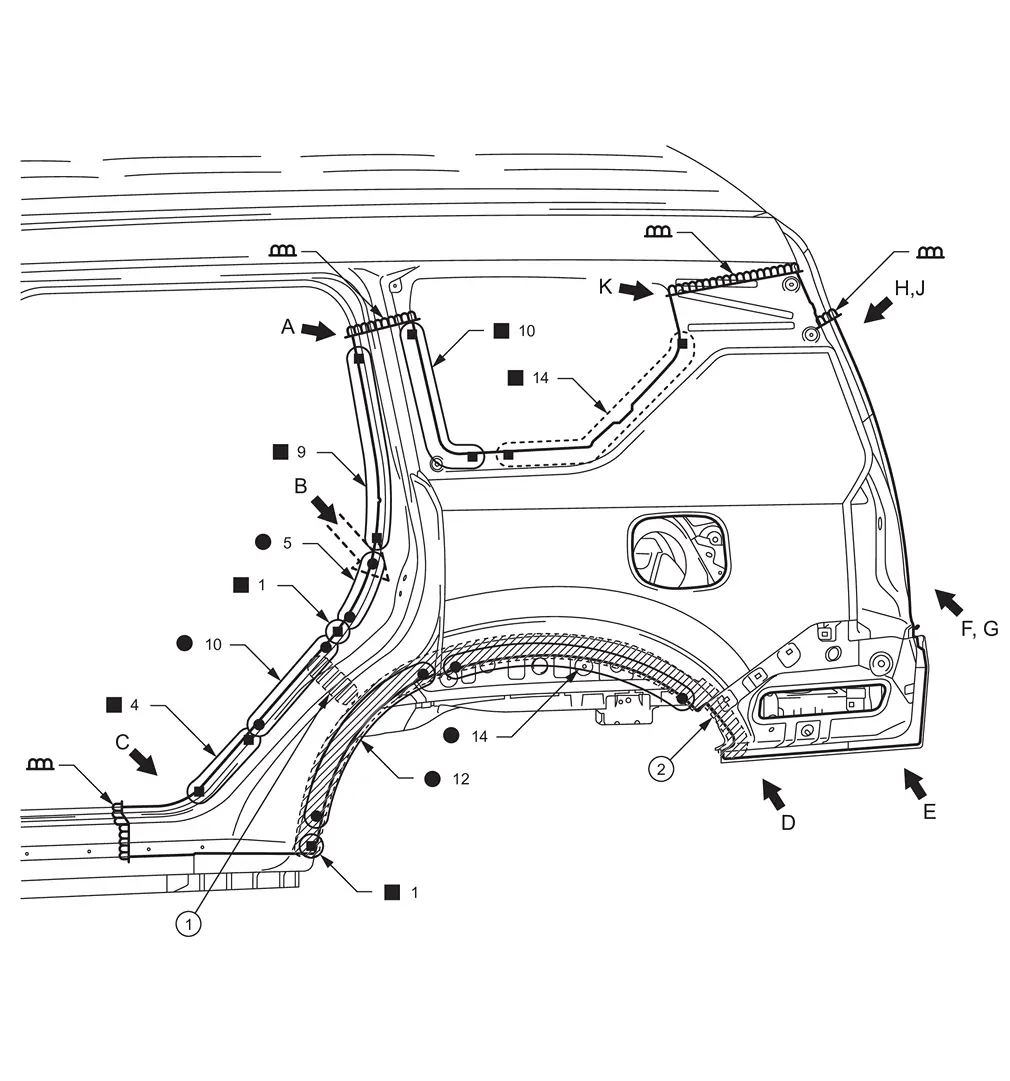

| Urethane foam | | Body sealing | ||
| : Weld the parts onto the back of the component part. | |||||
| Replacement part | |||||
| • | Rear fender | ||||
| Body sealing | ||||
| Unit: mm (in) | |||||
| : Vehicle front | |||||
| : Drill φ6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel). | |||||
| : Weld the parts onto the back of the component part. | |||||
| : N•m (kg-m, in-lb) | |||||
| Unit: mm (in) | |||||
| : Vehicle front | |||||
| : Weld the parts onto the back of the component part. | |||||
| : N•m (kg-m, in-lb) | |||||

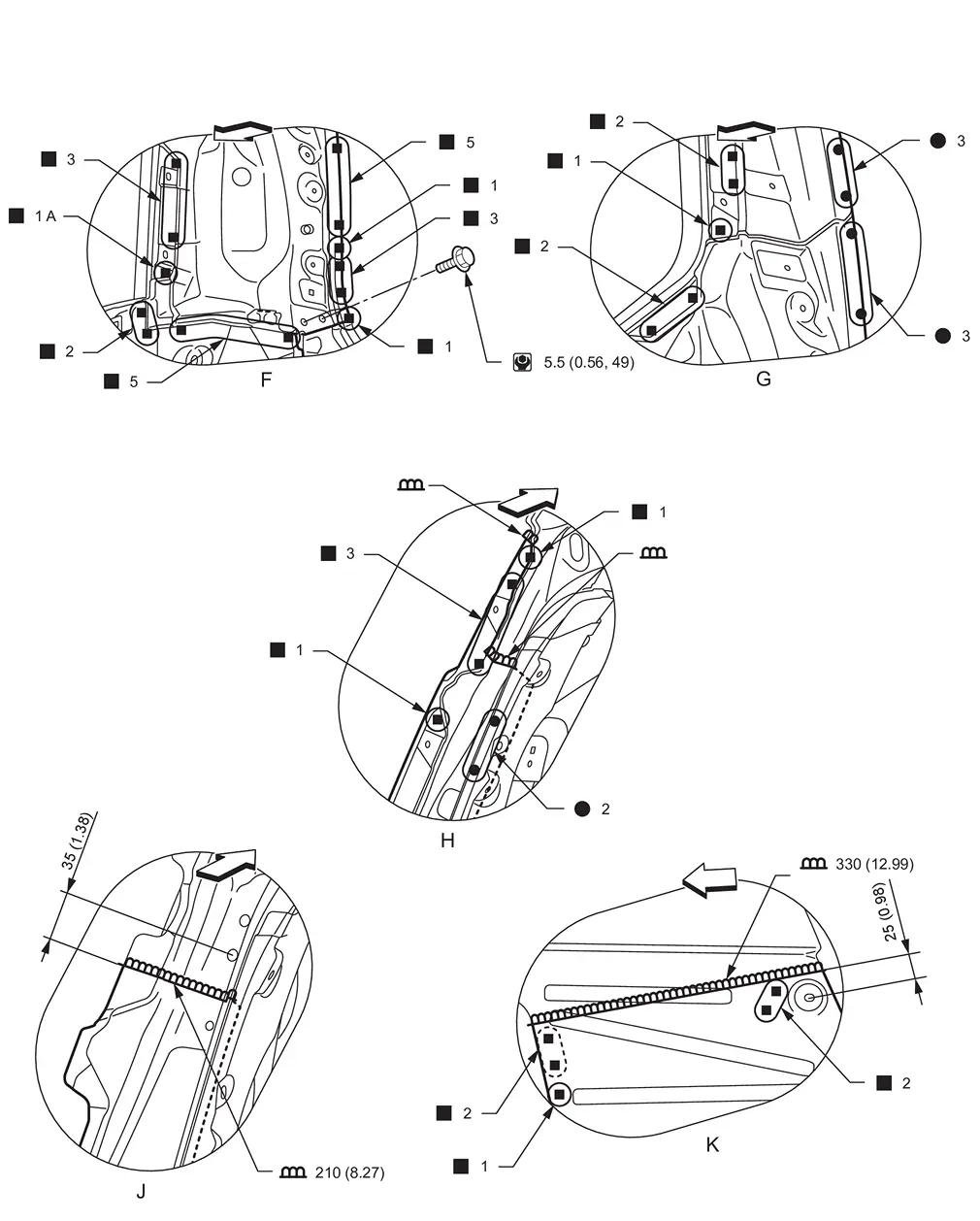

View J: Before installing outer side body
Rear Seat Crossmember
WARNING:
Work after rear fender, outer rear sill reinforcement, outer rear wheelhouse, inner rear wheelhouse, and rear floor front are removed.
Weld "view F" as shown in the illustration after install ...
Rear Fender Extension
WARNING:
Body sealing Unit: mm (in) : Weld the parts onto the back of the component part. Replacement part • Rear fender extension ...
