Nissan Armada 2025-2026 Service and Repair Manual: Rear Seat Crossmember
WARNING:
Work after rear fender, outer rear sill reinforcement, outer rear wheelhouse, inner rear wheelhouse, and rear floor front are removed.

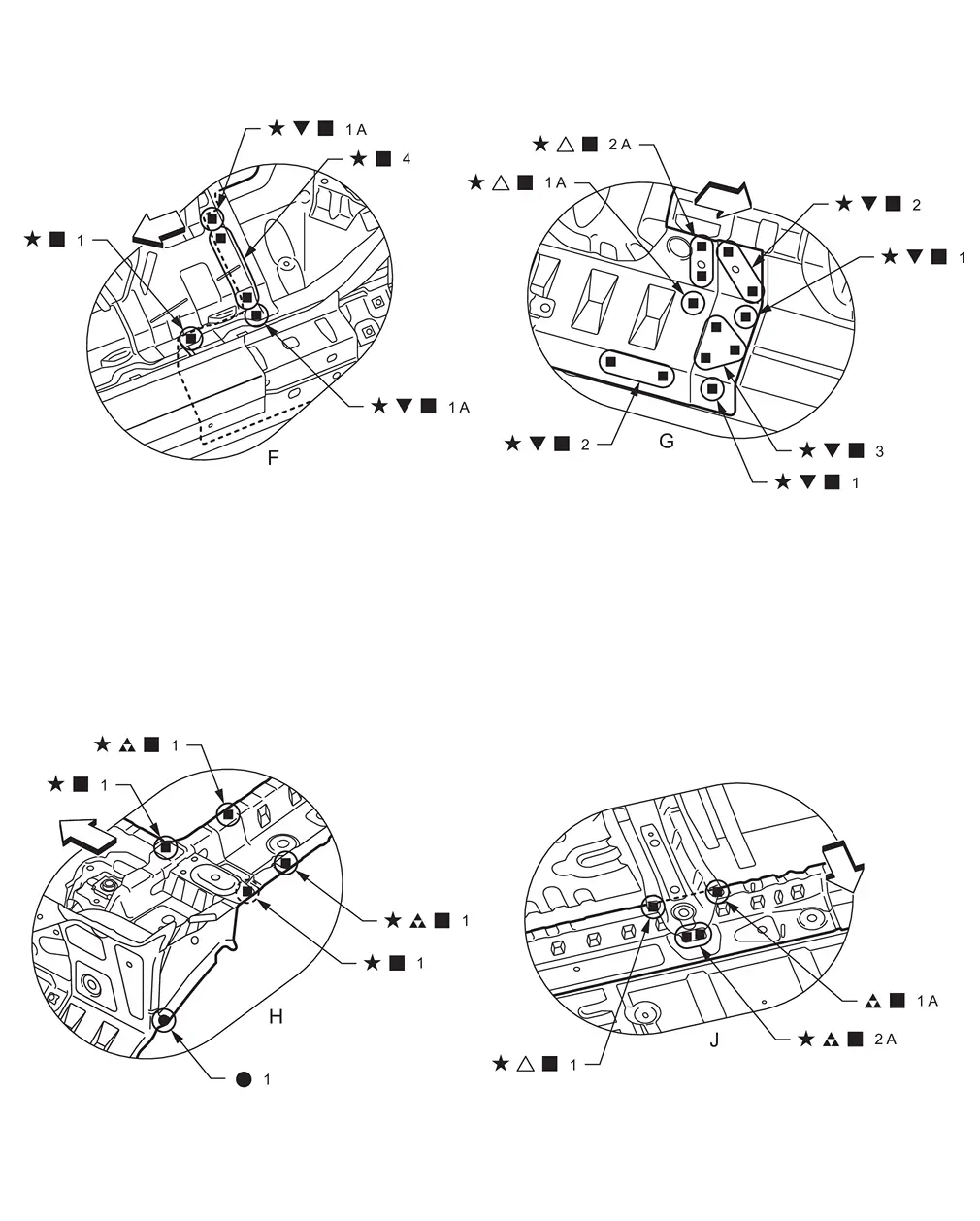

Weld "view F" as shown in the illustration after installing the rear floor front.

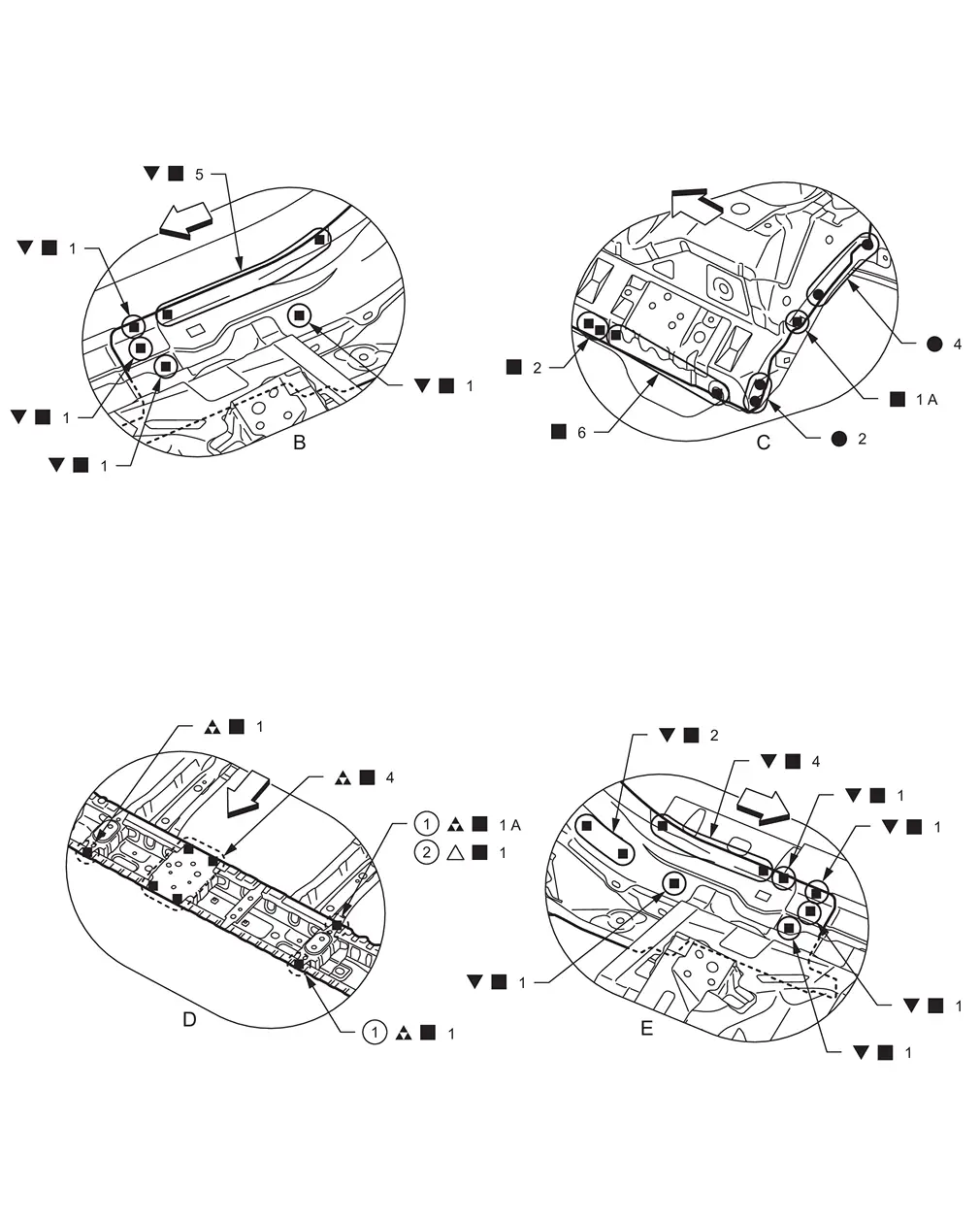

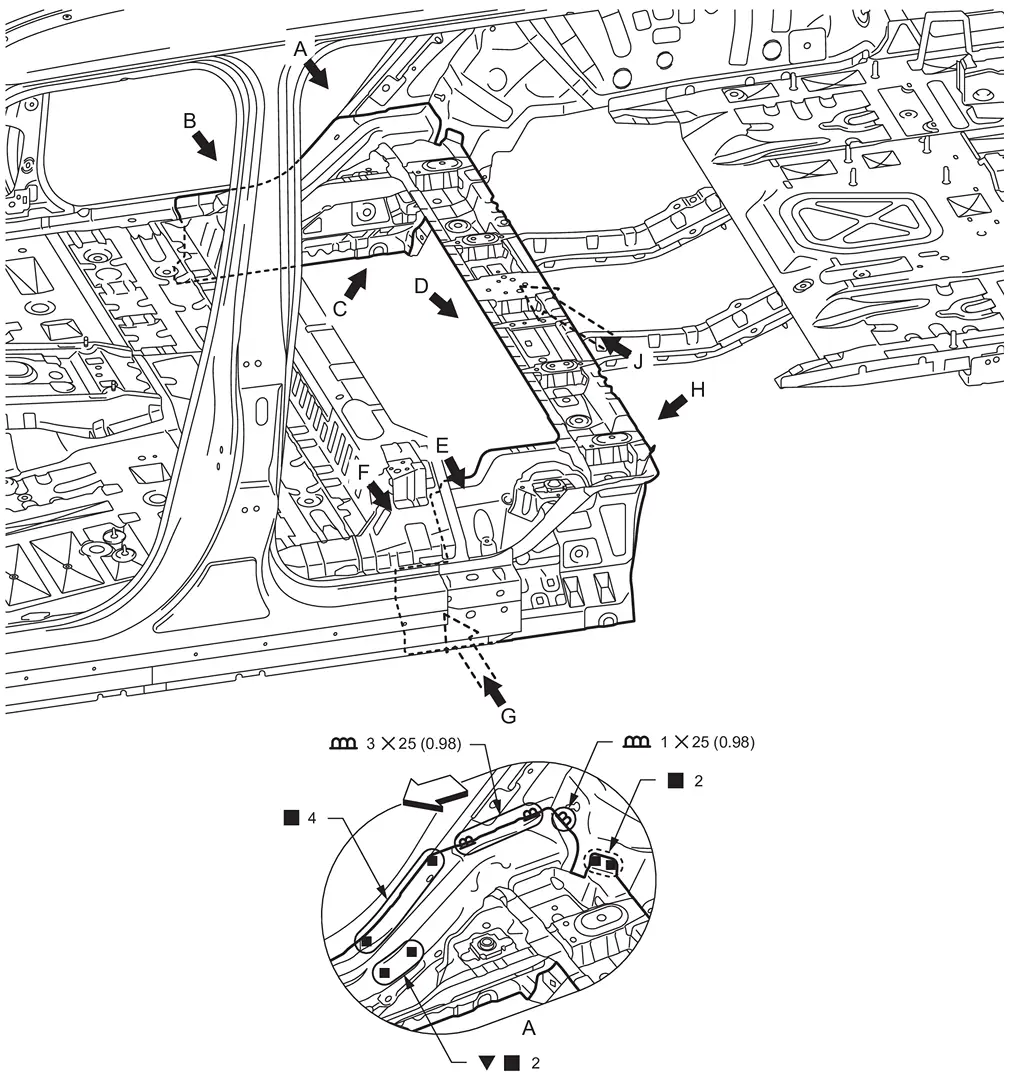

| Unit: mm (in) | |||||
 : Vehicle front | |||||
 : Drill φ7 mm (0.28 in) hole for the plug welding hole (ultra high strength steel). | |||||
 : Weld the parts onto the back of the component part. | |||||
| Replacement part | |||||
| • | Rear seat crossmember assembly | ||||
 | Captain seat |  | Bench seat | ||
| : Vehicle front | |||||
| : Drill φ7 mm (0.28 in) hole for the plug welding hole (ultra high strength steel). | |||||
 : Drill φ8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel). | |||||
 : Drill φ10 mm (0.39 in) hole for the plug welding hole (ultra high strength steel). | |||||
| : Weld the parts onto the back of the component part. | |||||
| : Vehicle front | |||||
| : Drill φ7 mm (0.28 in) hole for the plug welding hole (ultra high strength steel). | |||||
| : Drill φ8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel). | |||||
| : Drill φ10 mm (0.39 in) hole for the plug welding hole (ultra high strength steel). | |||||
| : Weld the parts onto the back of the component part. | |||||
 : Welding method and the number of welding points apply to both sides of the vehicle. |
