Nissan Armada 2025-2026 Service and Repair Manual: Rear Frame
WARNING:
| Unit: mm (in) | |||||
 : Vehicle front | |||||
| Replacement part | |||||
| • | Rear end crossmember assembly | • | Rear end gusset | • | Rear side member assembly (LH) |
| • | 5th cab mounting bracket (LH) | ||||

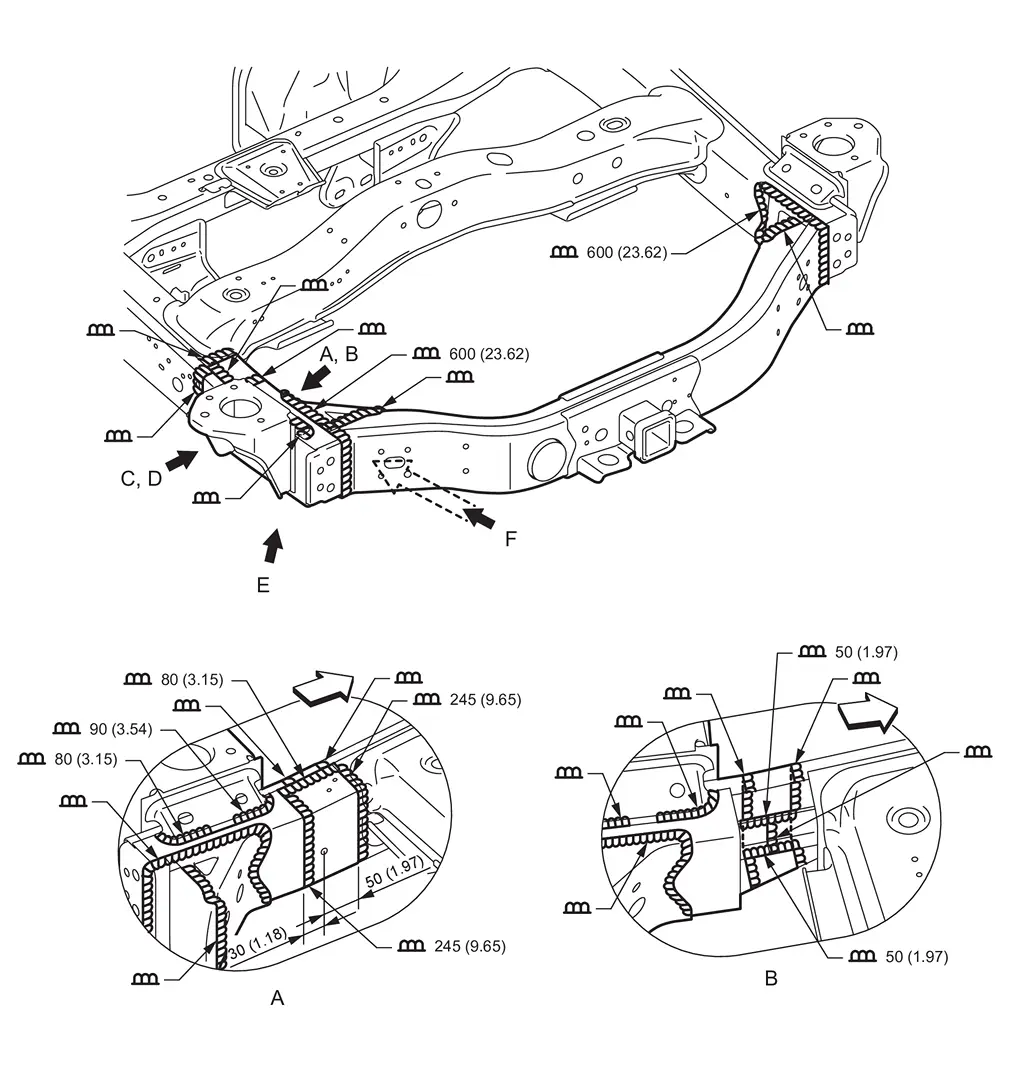

View B: Before installing inner rear side member
| Unit: mm (in) | |||||
| : Vehicle front | |||||
 : Welding method and the distance in the figure apply to both sides of the vehicle. | |||||
View C: Before installing inner rear side member

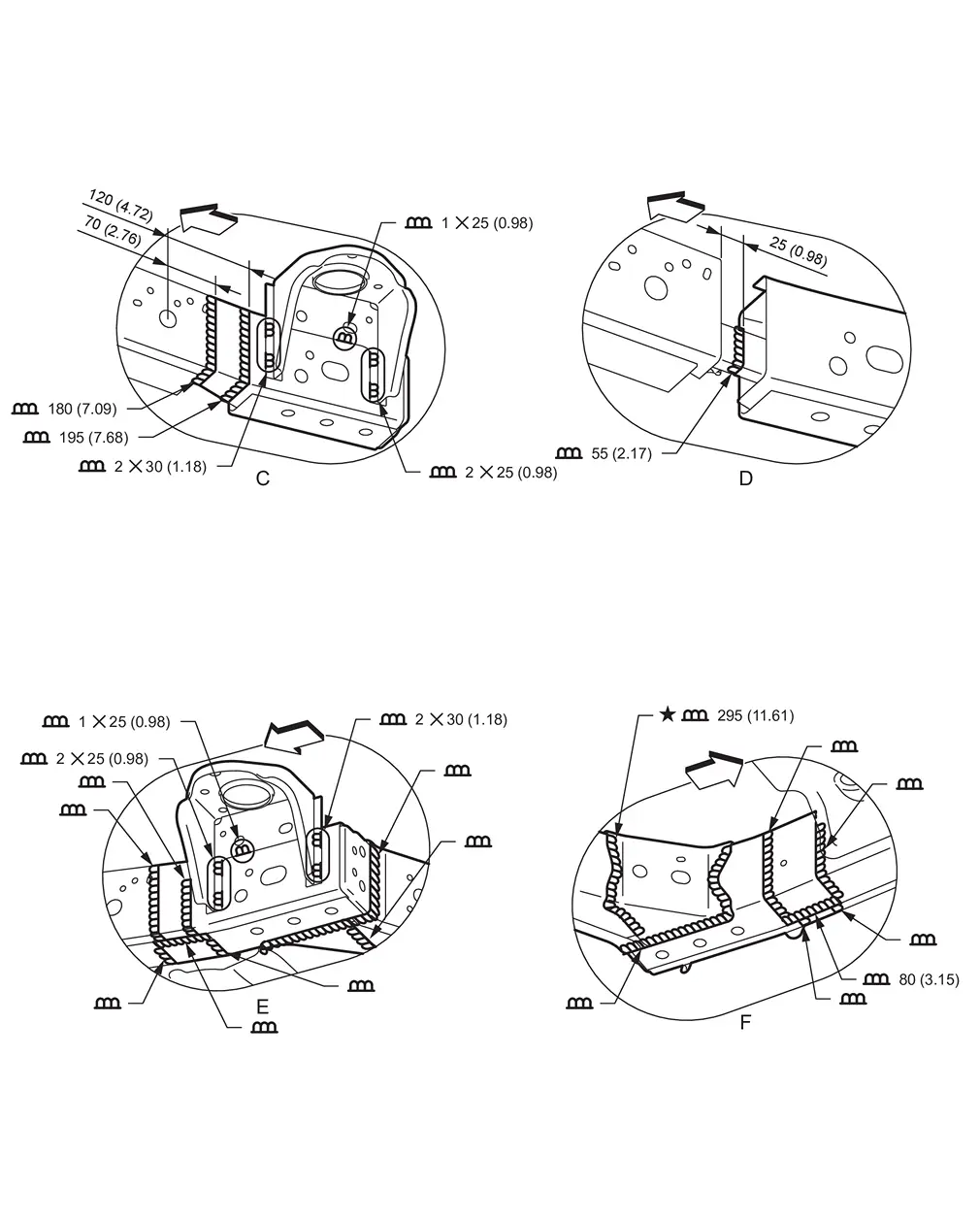

View D: Before installing inner rear side member, outer rear side member, and 5th cab mounting bracket (LH)
Crush Horn
WARNING:
Unit: mm (in) : Vehicle front Replacement part • Front side member assembly • 1st cab mounting bracket assembly • Front side member closing assembly (Front) ...
