Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation

WARNING:

• Jacking up or lifting up the vehicle may the vehicle height to go down which cause a personal injury and/or damage to the air suspension component parts. Refer to Precaution for when Jacking and Lifting Up the Vehicle with Electronic Air Suspension System (With electronic air suspension).
• When checking under the vehicle or inside wheel house, always turn OFF the electronic air suspension function with the vehicle unladen and normal height, since the suspension may accidentally move and it can lead to personal injury. Refer to Precaution for Electronic Air Suspension System (With electronic air suspension).

REMOVAL

CAUTION:

Remove front heater outlet pipe assembly. Refer to Removal and Installation.

Remove front heater pipe assembly. Refer to Removal and Installation.

Remove low-pressure pipe. Refer to Removal and Installation.

Remove reservoir tank and reservoir tank bracket. Refer to RADIATOR : Exploded View.

Remove 12V battery and battery tray. Refer to Removal and Installation.

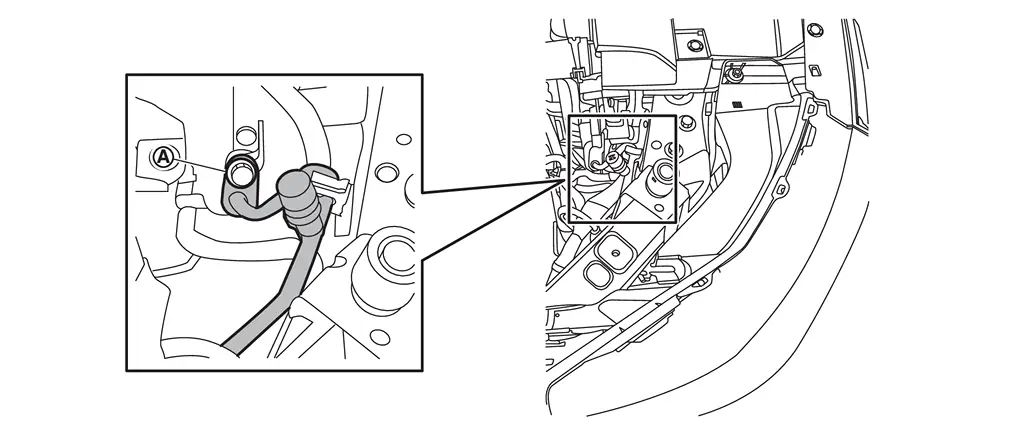

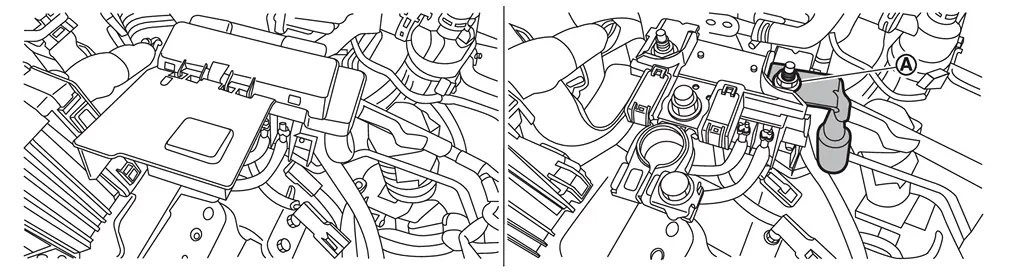

Remove mounting bolt , and then disconnect high-pressure pipe from condenser outlet pipe.

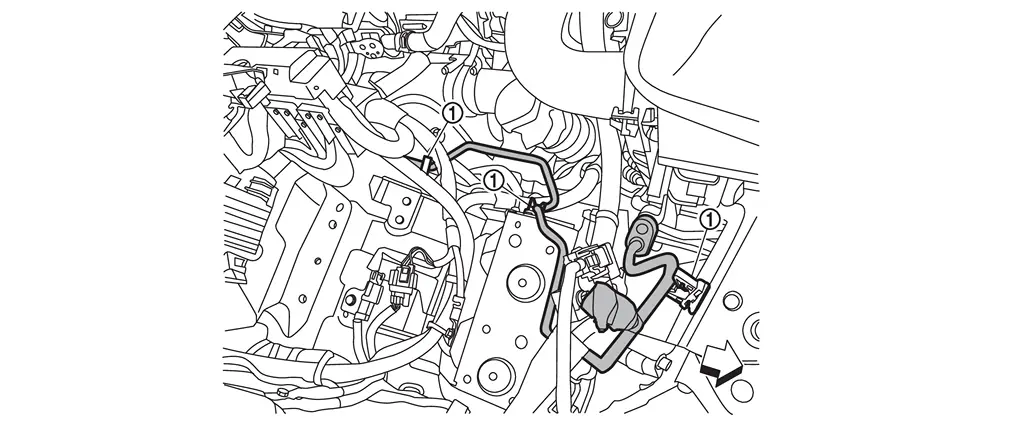

Remove high-pressure pipe from tube clips 1 .

: Vehicle front

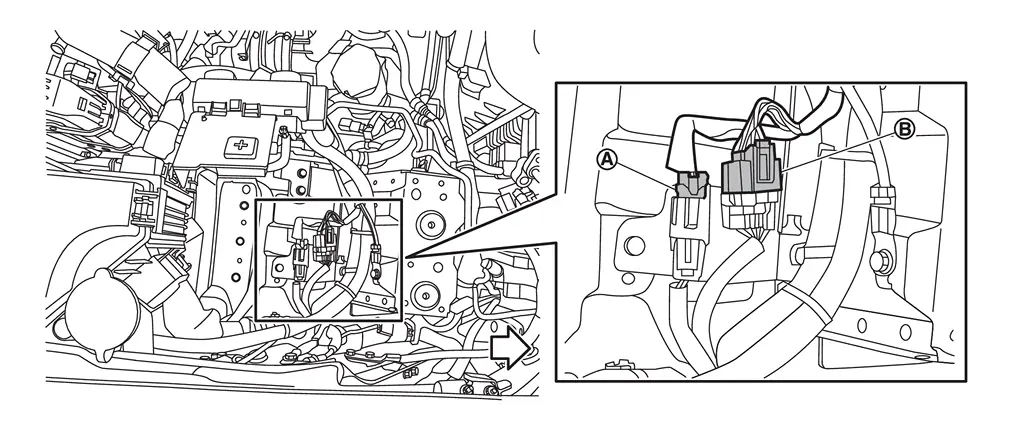

Disconnect engine No.2 harness connectors and .

: Vehicle front

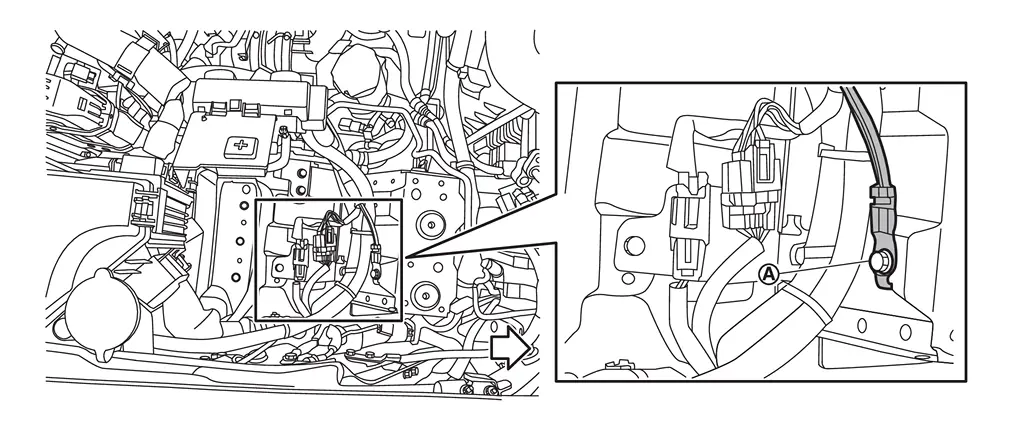

Remove mounting bolt , and then remove ground wire.

: Vehicle front

Remove mounting nut , and then disconnect engine No.2 harness from engine room harness.

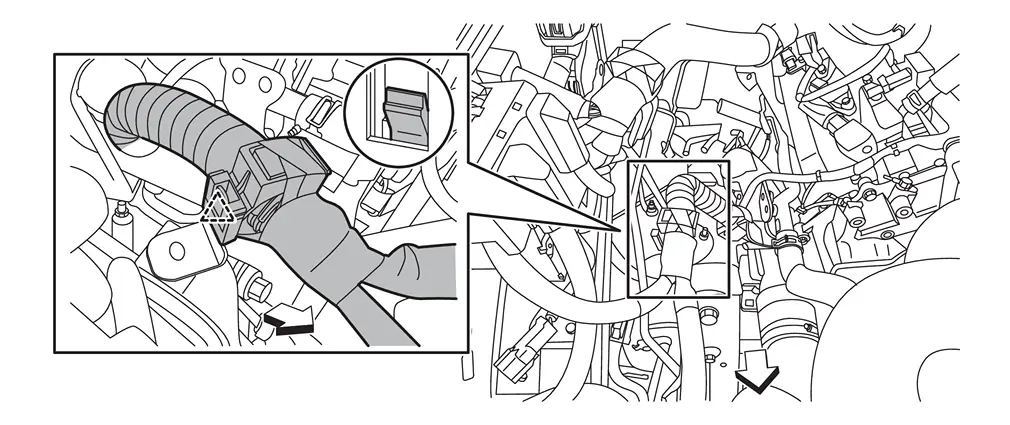

Disengage fixing pawl, and then move engine No.2 harness to secure work space.

	: Pawl
	: Vehicle front

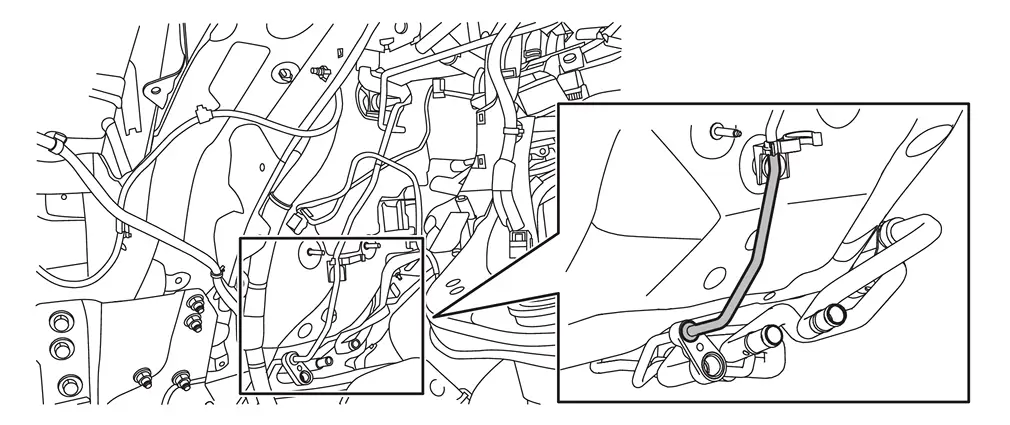

Disconnect high-pressure pipe from rear cooler pipe assembly.

Remove high-pressure pipe from tube clip 2 .

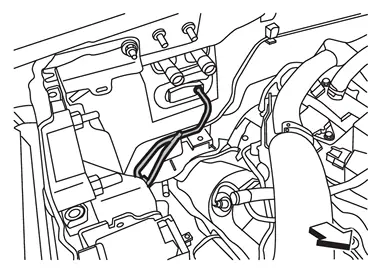

Disconnect high-pressure pipe from front expansion valve.

: Vehicle front

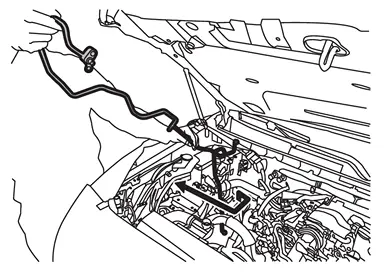

Remove high-pressure pipe from vehicle.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:
