Nissan Armada 2025-2026 Service and Repair Manual: Crush Horn
WARNING:

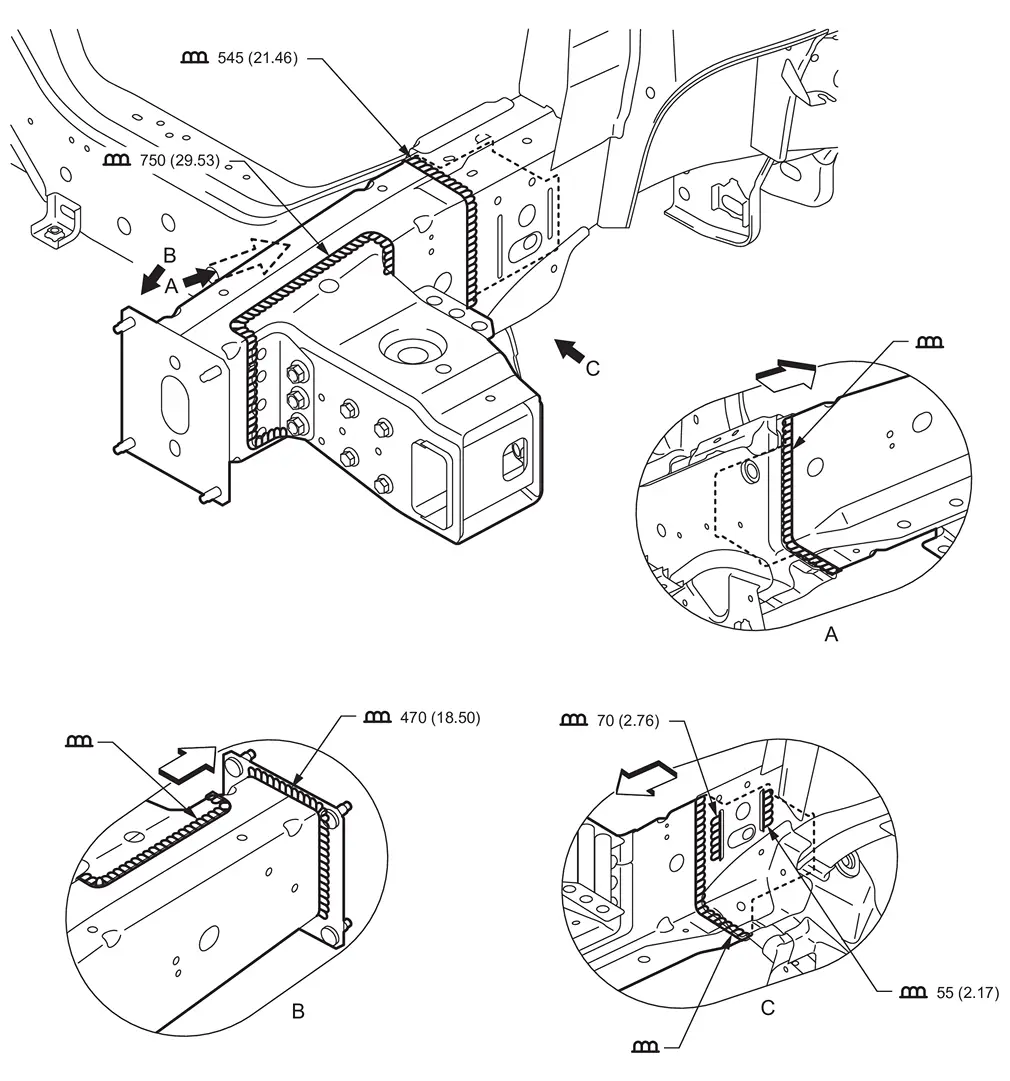

| Unit: mm (in) | |||||
 : Vehicle front | |||||
| Replacement part | |||||
| • | Front side member assembly | • | 1st cab mounting bracket assembly | • | Front side member closing assembly (Front) |
Roof Rail
Work after roof is removed.
: Vehicle front : Drill φ8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel). : Drill φ11 mm (0.43 in) hole for the plug welding hole (ultra high s ...
Rear Frame
WARNING:
Unit: mm (in) : Vehicle front Replacement part • Rear end crossmember assembly • Rear end gusset • Rear side member assembly (LH) • 5th cab mounting bracket (LH)
View B: B ...
