Nissan Armada 2025-2026 Service and Repair Manual: Precautions while Working

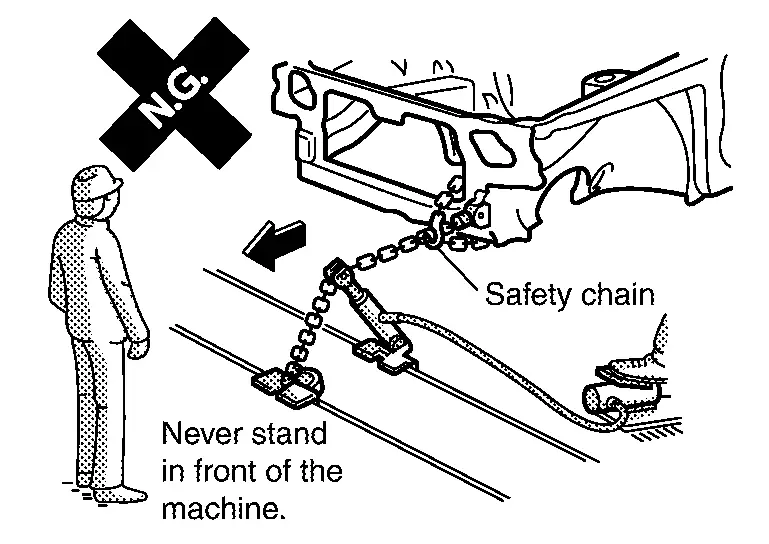

To prevent danger in case the clamp slips or the panel breaks, be sure to apply a safety chain. Be careful not to stand near the area where the chain is stretched.
To prevent danger, any excessive slack in the safety chain must be taken up and properly wound.
Do not wear a working glove on the hand that is hammering.

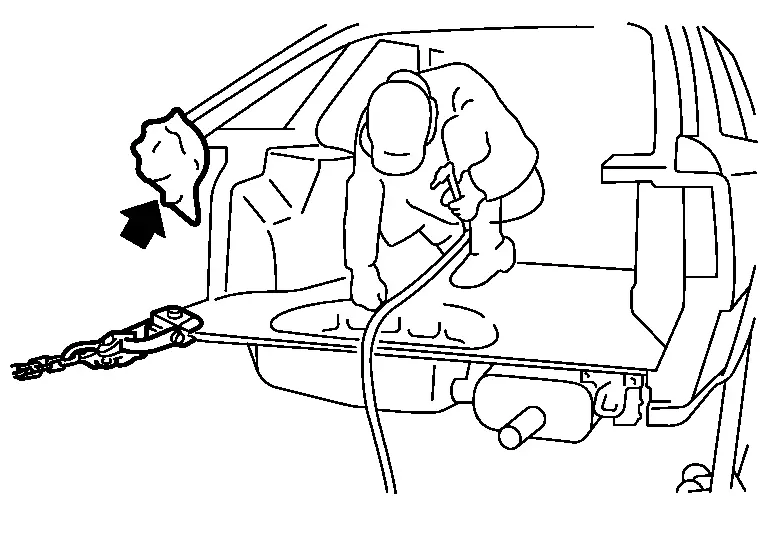

Cracked glass must be removed or taped to prevent separation.
Any cut panels must be protected with cloth or tape.
Use of Protectors
Use of work clothes should be the same as for “PROTECTORS”. Refer to Protectors.
Wear a safety helmet and safety shoes.
When working under a vehicle or when using a grinder, wear goggles.
...
Protection of Vehicle
The seats and glass must be removed or covered with incombustible material, according to the type of work to be done, to prevent contamination and welding spatter.
When removing parts, utilize paddin ...
