Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
WARNING:
REMOVAL
Disconnect the battery cable from negative terminal. Refer to Removal and Installation .
Remove fender protector LH. Refer to Removal and Installation.

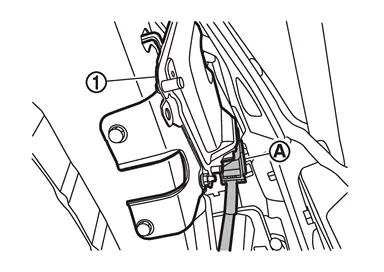

Disconnect the harness connector
from sub-TCM
.

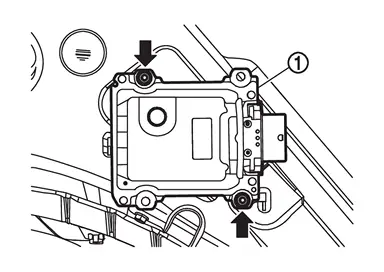

Remove sub-TCM mounting nuts (
) and remove sub-TCM .

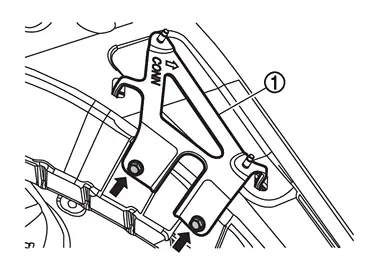

Remove bracket mounting bolts () and remove bracket .
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Never damage sub-TCM.
Exploded View
Bracket Sub-TCM : N·m (kg-m, in-lb) : Vehicle front ...
Inspection & Adjustment
INSPECTION AFTER INSTALLATION
Check the electric shift position. Refer to Inspection.
ADJUSTMENT AFTER INSTALLATION
When replaced sub-TCM, perform “ADDITIONAL SERVICE WHEN REPLACING sub-TCM”. Refe ...
