Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
WARNING:
REMOVAL
Remove fender protector RH. Refer to Removal and Installation.
Remove 12V sub battery (lithium ion battery) harness 1 bracket. Refer to Exploded View (If necessary).

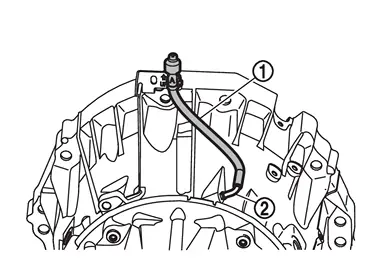

Release clip
and remove air breather hose assembly from bracket
.
Separate the air breather hose from air breather tube
and remove air breather hose.
INSTALLATION
Note the following, and install in the reverse order of removal.
Install air breather hose so that painted mark
on it and arrow mark
of breather faced forward of the vehicle.
: Vehicle front When inserting the air breather hose
into the breather connector, insert it until it hits the painted mark on the breather connector.
Exploded View
Bracket A/T assembly Air breather hose Clip : N·m (kg-m, ft-lb) Always replace after every disassembly. ...
