Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL

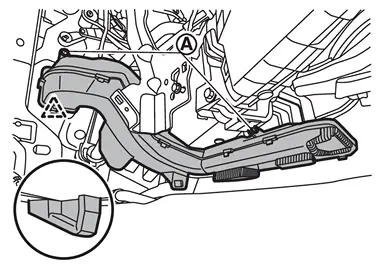

Front Foot Duct LH
Remove instrument lower panel LH and center instrument lower panel. Refer to Removal and Installation.
Remove driver knee air bag module. Refer to Removal and Installation.
Remove side ventilator duct 2 LH. Refer to Removal and Installation.
Remove fixing screws
and disengage fixing pawl, and then remove front foot duct LH.
 | : Pawl |

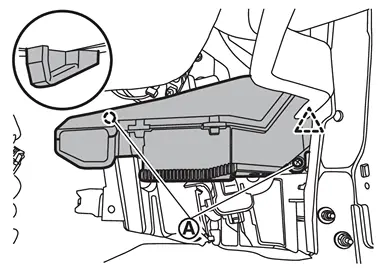

Front Foot Duct RH
Remove passenger knee air bag module. Refer to Removal and Installation.
Remove instrument pad D. Refer to Removal and Installation.
Remove fixing screws and disengage fixing pawl, and then remove front foot duct RH.
| : Pawl |
INSTALLATION
Install in the reverse order of removal.
Front Foot Duct
...
Rear Floor Duct
...
