Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
WARNING:
REMOVAL
Remove transfer assembly from vehicle. Refer to Removal and Installation.
Remove input oil seal.
CAUTION:
Never damage the front case and input shaft.
INSTALLATION
Note the following, and install in the reverse order of removal.

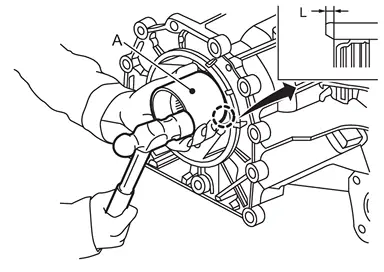

Install input oil seal with a drift (A) (commercial service tool) within the dimension (L) shown as follows.
L : 1.5 – 2.5 mm (0.059 – 0.098 in)
CAUTION:
Never reuse input oil seal.
Apply transfer fluid onto circumference of oil seal.
When installing, never incline input oil seal.
Never handle the oil seal inner periphery and oil seal lip.
Exploded View
Transfer assembly Input oil seal : Vehicle front : Always replace after every disassembly. : Apply transfer fluid. ...
