Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
WARNING:
REMOVAL
The ignition switch OFF.
CAUTION:
Wait for 60 seconds after the ignition switch OFF.
Disconnect negative battery terminal. Refer to Removal and Installation

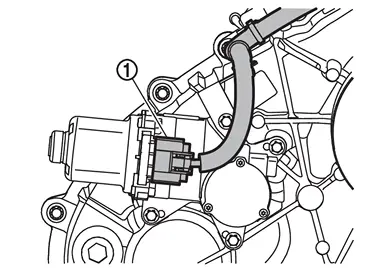

Disconnect the transfer control actuator connector
.

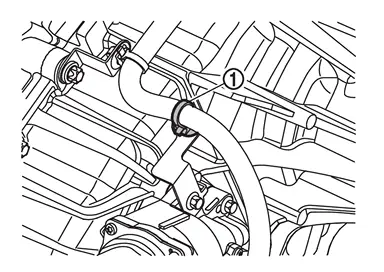

Remove harness clip .

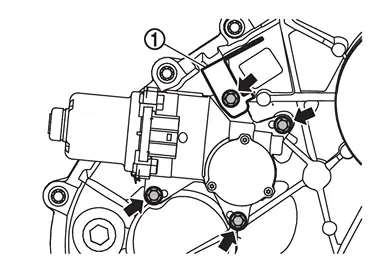

Remove transfer control actuator mounting bolt (
) and remove bracket .

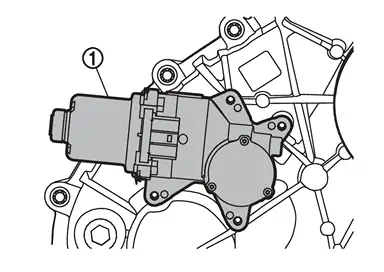

Remove transfer control actuator .
INSTALLATION
Note the following, and install in the reverse order of removal.
Never damage oil seal of transfer control actuator.
Never contaminate or damage the oil seal mounting surface.
Perform inspection after installation. Refer to Inspection.
Exploded View
Transfer assembly Transfer control actuator bracket : N·m (kg-m, in-lb) ...
Inspection
INSPECTION AFTER REMOVAL
When turn the shaft in direction , check returning to direction by spring power.
CAUTION:
The maximum turning force shall be 5 N·m (0.51 kg-m, 44 in-lb).
When turn the shaf ...
