Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Ignition switch OFF.
Disconnect negative battery terminal.
Disconnect the differential lock position switch harness connector.

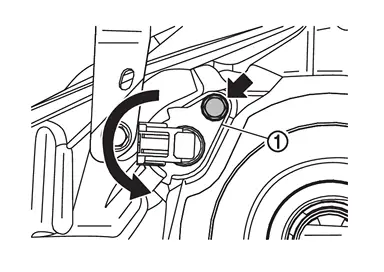

Remove differential lock position switch mounting bolt (
) and remove differential lock position switch
.
Rotate differential lock position switch counterclockwise then pull out to remove as shown.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Apply gear oil to the O-ring.
Never damage the O-ring of differential lock position switch.
Never contaminate or damage the O-ring mounting surface.
Exploded View
Rear final drive assembly Differential lock position switch O-ring : N·m (kg-m, in-lb) : Apply gear oil. ...
