Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
WARNING:
REMOVAL
Remove tires. Refer to ROAD WHEEL TIRE : Removal & Installation.
Remove stabilizer connecting rod mounting nuts.
Remove mounting bolts, and remove stabilizer bar assembly from vehicle.
Remove stabilizer connecting rods, stabilizer clamps, and stabilizer bushings from stabilizer bar.
Perform inspection after removal. Refer to Inspection.
INSTALLATION
Note the following, and install in the reverse order of removal.
Install stabilizer bushing that slit
becomes vehicle front side (
).

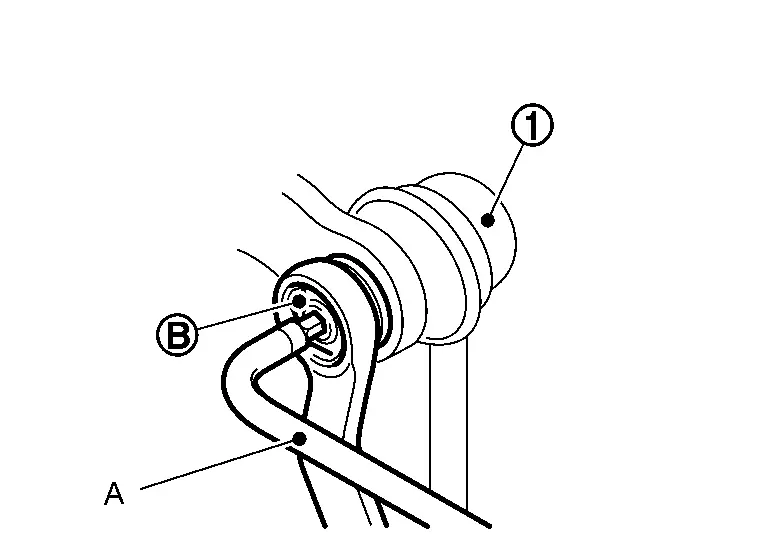

To installing the stabilizer connecting rod
, use a hexagonal wrench (A) to tighten the mounting nut
while preventing rotation.
Exploded View
Stabilizer bar Stabilizer bushing Stabilizer clamp Front lower link　 Stabilizer connecting rod : N·m (kg-m, ft-lb) ...
Inspection
INSPECTION AFTER REMOVAL
Check stabilizer bar, stabilizer connecting rod, stabilizer bushing and stabilizer clamp for deformation, cracks or damage. Replace it if necessary. ...
