Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation

WARNING:

REMOVAL

WARNING:

CAUTION:

Remove tires. Refer to ROAD WHEEL TIRE : Removal & Installation.

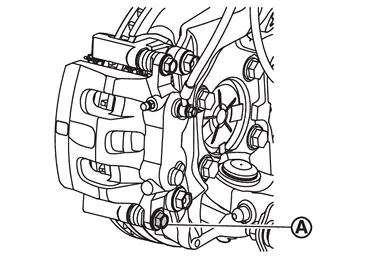

Remove lower sliding pin bolt , and remove cylinder body.

Suspend the cylinder body with suitable wire so that the brake hose will not stretch.

Remove the brake pads, shims, shim covers and pad retainer (with return spring ) from the torque member .

CAUTION:

Remove the return springs from the pad retainer .

CAUTION:

Never deform the return springs when removing the return springs from the pad retainer.

Perform inspection after removal. Refer to Inspection.

INSTALLATION

WARNING:

CAUTION:

Install the return springs to pad retainer if the return springs has been removed.

CAUTION:

Never deform the return springs.

Apply MOLYKOTE® 7439 or equivalent to the match face between the pad retainers and torque member if the pad retainers has been removed.

Molykote is a registered trademark of Dow Corning Corporation.

Install the pad retainer (with return spring ) to torque member if the pad retainers has been removed.

CAUTION:

Apply MOLYKOTE® AS880N or siliconebased grease to the both face of shim , and install the shim and the shim covers to the brake pad .

CAUTION:

Molykote is a registered trademark of Dow Corning Corporation.

Install the brake pads to the torque member .

CAUTION:

Both inner and outer pads have a pad return system. Securely push the return spring into the disc rotor side with brake pad.

Apply MOLYKOTE® AS880N or siliconebased grease to the claw parts of cylinder body.

Molykote is a registered trademark of Dow Corning Corporation.

Install cylinder body to torque member.

CAUTION:

NOTE:

Use a brake caliper wrench (commercial service tool) to easily press piston.

Install the lower sliding pin bolt and tighten it to the specified torque. Refer to Exploded View.

Depress the brake pedal several times to check that no drag feel is present for the front disc brake. Refer to Inspection and Adjustment.

Install tires. Refer to ROAD WHEEL TIRE : Removal & Installation.

Exploded View
Cylinder body Inner shim cover Inner shim Inner pad (with pad wear sensor) Return spring Pad retainer Torque member Outer pad Outer shim Outer shim cover : Vehicle front 1: Apply MOLYKOTE® ...

Inspection
INSPECTION AFTER REMOVAL Replace the shims and shim covers if rust is excessively attached. Eliminate rust on the return spring, pad retainers and the torque member. Replace them if rust is excessivel ...
