Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
CAUTION:
Remove front grille. Refer to the following.
Off road models: Removal and Installation
City models: Removal and Installation
Remove front bumper side finisher LH. Refer to the following.
Off road models: Removal and Installation
City models: Removal and Installation
Remove horn high. Refer to Removal & Installation.
Remove radiator air guide LH. Refer to Removal and Installation.
Clean refrigerant pressure sensor and its surrounding area, and then remove dust and rust from refrigerant pressure sensor.
CAUTION:
Be sure to clean carefully.

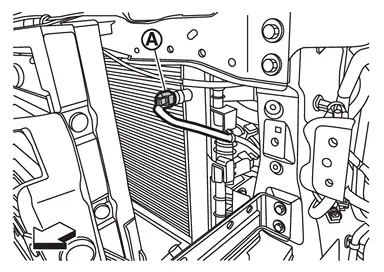

Disconnect refrigerant pressure sensor connector
.
 | : Vehicle front |
Use a adjustable wrench or other tool to hold the refrigerant pressure sensor mounting block, and then remove the refrigerant pressure sensor from condenser & liquid tank assembly.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
